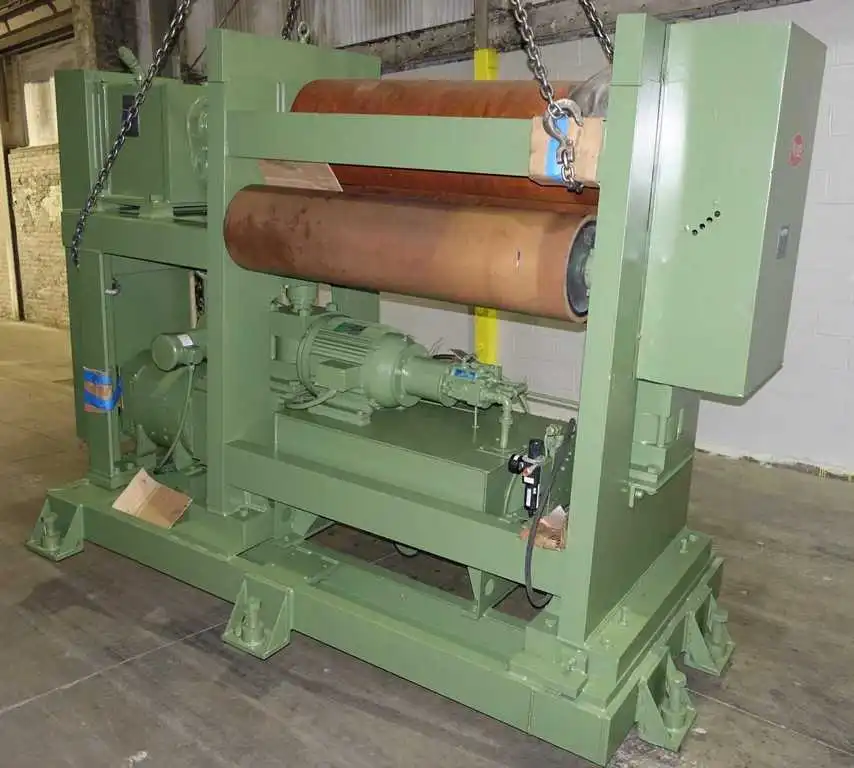

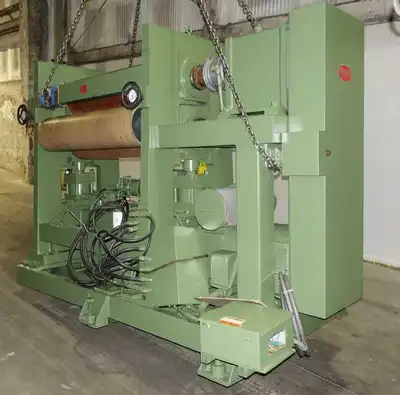

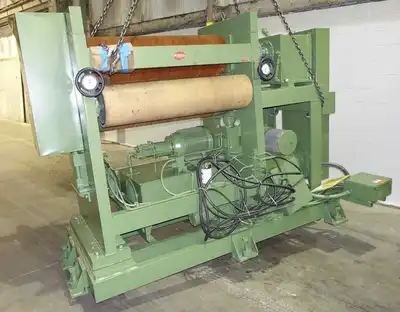

MEMCO Model 50/75 Embosser for Metal Coil: EM-086

Description

Manufacture:
- Memco (Modern Engraving & Machine Co.)
- Model / Tonnage: 50/75

Roll Size:
- 50" face
- 15" diameter

Roll Pattern:
- Two roll matched rolls
- Leather? ("Q 7.93" Stamped on roll journals)

Herringbone Roll Gears:
- 2488-1 (Stamped on gear side wall)

Entry Tension Roll
- 50" face x 12" diam., coated

Embossing Stand
- Complete
- Designed on rollers to pull in and out of a line. Fixed position mount possible too.

Exit Tension Roll
- 50" face x 12" diam., coated

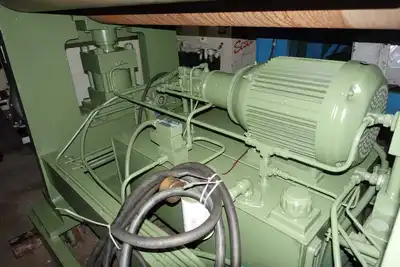

Drive:
- 75hp DC Motor, 1750 RPM, 500V, 123 Amp
- Falk Gear box with 11.33:1 gear ratio

Sold "as is, where is" FCA loaded on your trucks, USA.
