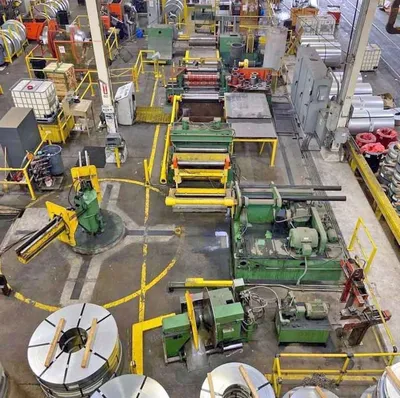

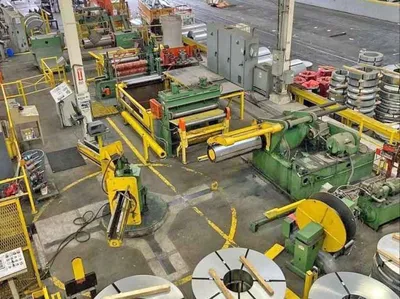

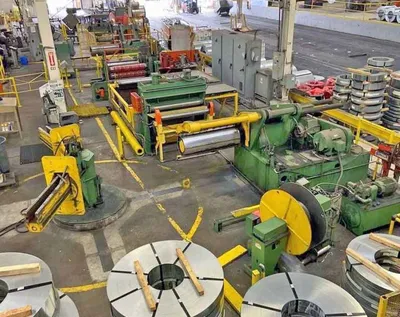

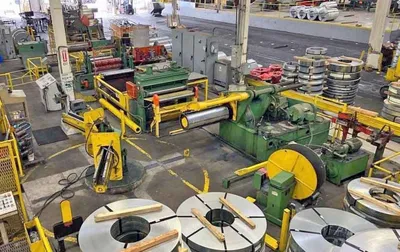

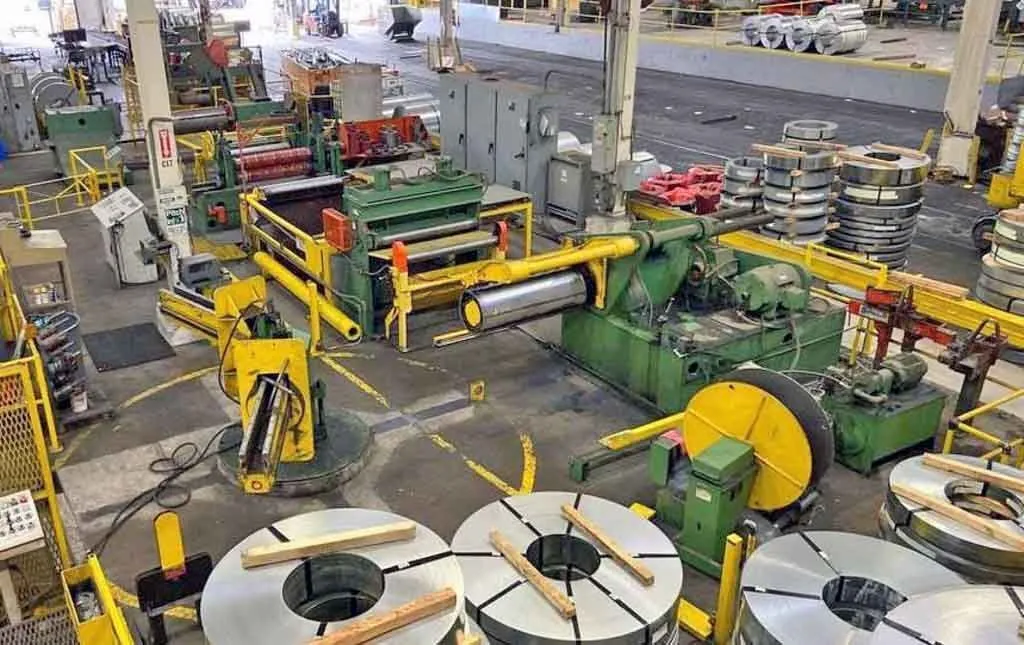

52" x 6.00" x 30,000lb. Paxson Slitting Line: S-323

Description

Manufacture
- Paxson
- Loop type, driven slitter

Strip Width
- 52" max (1321mm)

Strip Thickness
-

Coil Size
- ID = 20"
- OD = 72"
- Weight = 30,000 lbs

Direction
- Left to Right

Line Speed
- 350 to 400 FPM

Controls
- Upgraded in 2009 with New PLC, Control Pulpit

Equipment:

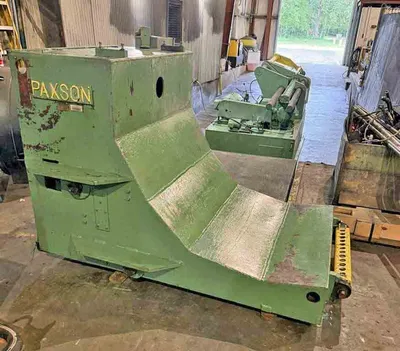

-Entry Coil Car:
Above Ground
"L" Type
Self-Contained Hydraulics
7.5 HP AC Motor, 1750 RPM, 230/460 V

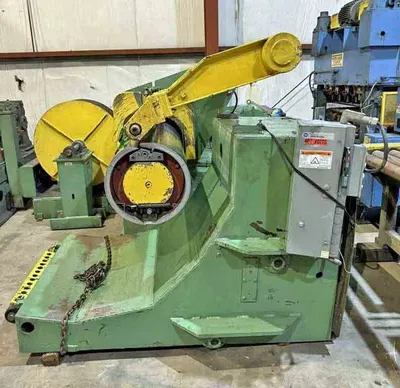

-Uncoiler:
Expanding Mandrel Type
Hydraulic Expansion
Water Cooled Drag Brake
Sliding Base
Powered Holddown Arm

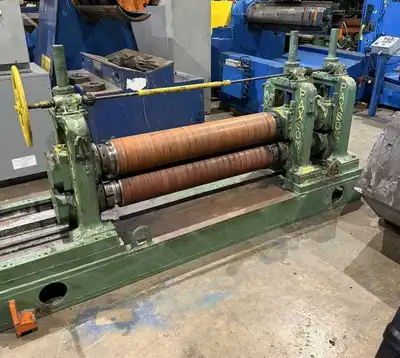

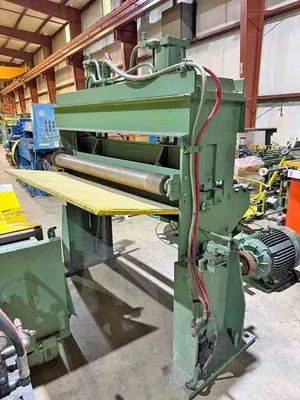

-Peeler:
Hydraulic Peeler Table with Pinch Rolls

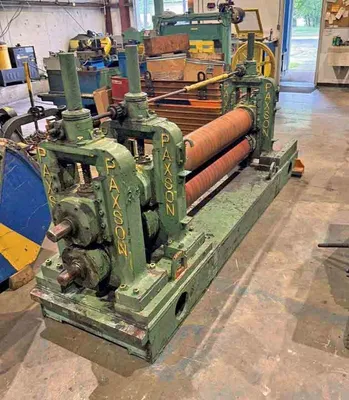

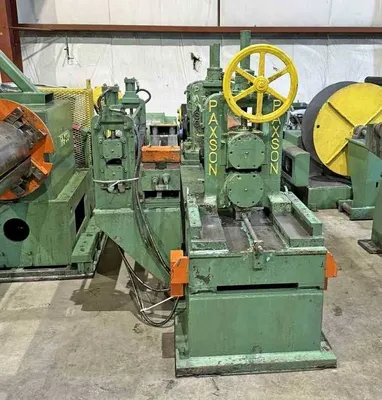

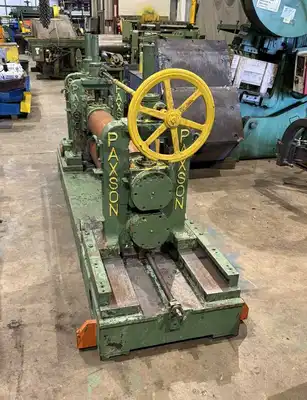

-Slitter Heads:
52" Arbor Face
Two (2) Drop in Heads
6" Diameter Arbors
Entry Side Guides
75 HP Reliance DC Drive Motor, 1750 RPM, 500 V

-Looping Pit:

-Cross Over Table:

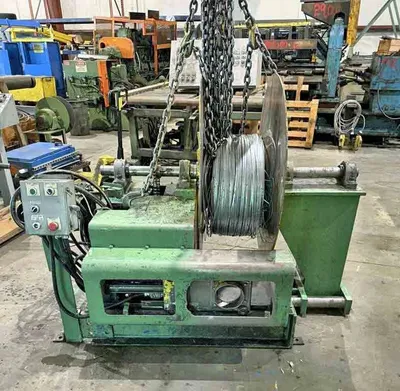

-(1) Scrap Winder:
One Self Dumping
Oscillating Scrap Guide
Hydraulic Motor Driven

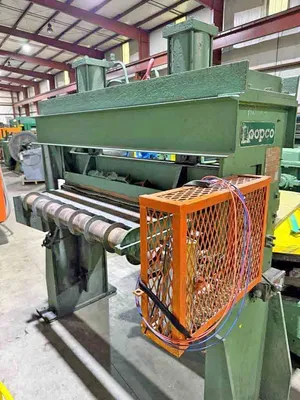

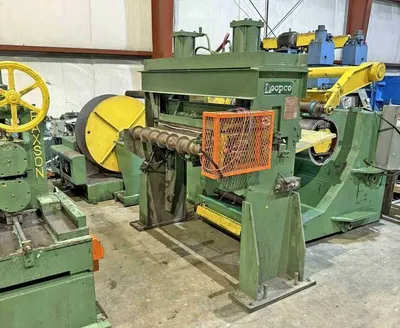

-Tension Stand: Loopco
Drag Board Type w/Air Cylinders for Pressure
Entry Separator Tooling Bar
Exit Passline Roll

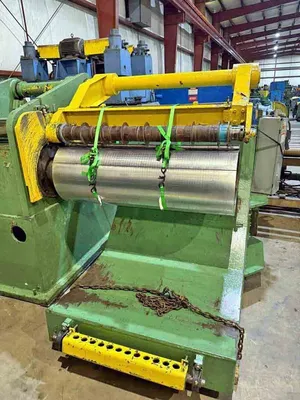

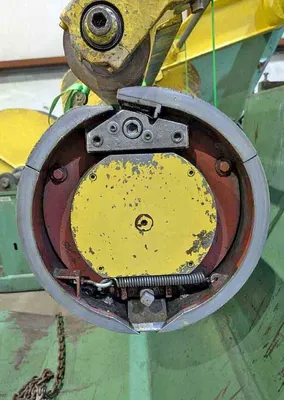

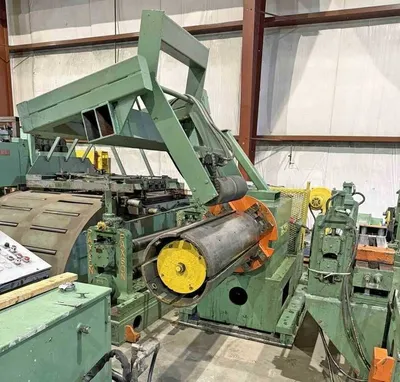

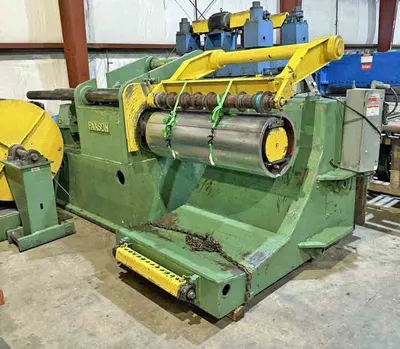

-Recoiler:
20" Dia. Drum
54" Drum Face
Manual Expand and Gripper
Hydraulic Pushoff
Overarm Separator
Foote-Jones Reducer w/16.692:1 Ratio
60 HP Reliance AC Motor w/Belt Drive to Reducer
1770 RPM, 230/460 V

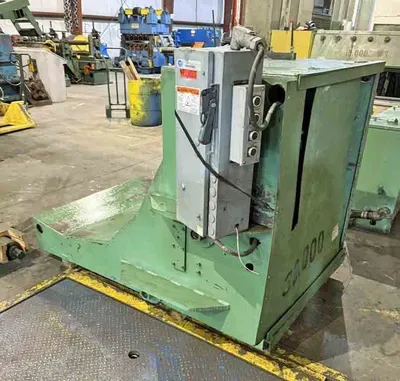

-Exit Coil Car:
48" Wide Deck
Self Contained Hydraulics
Hand Pendant Control

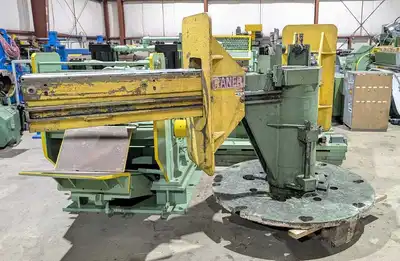

-Exit Turnstile: Braner
Two Arms
Powered Rotation
Pushoffs

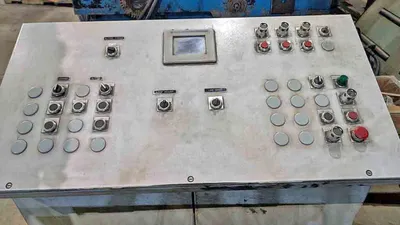

-Main Operators Control Panel:

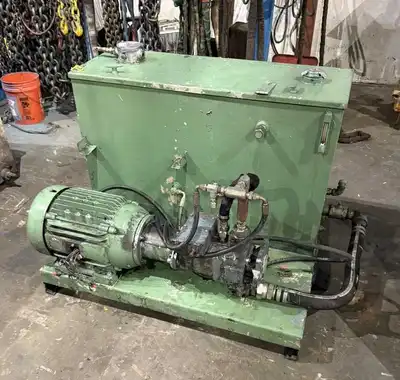

-Main Hydraulic Power Unit:

Sold "as is, where is" off foundation, in storage, USA
