52" x 8.00" x 35,000lb. Stamco Double-Loop Slitting Line: S-322

Description

Manufacture
- Stamco
- New 1995

Strip Width
- 52" (1321mm)

Strip Thickness
- .010" - .100" (0.25mm - 2.50mm)

Coil Size
- ID = 16-20", 24"
- Weight = 35,000 lbs.

Line Direction
- Right to Left

Line Speed
- 500 and 1200 FPM

Equipment:

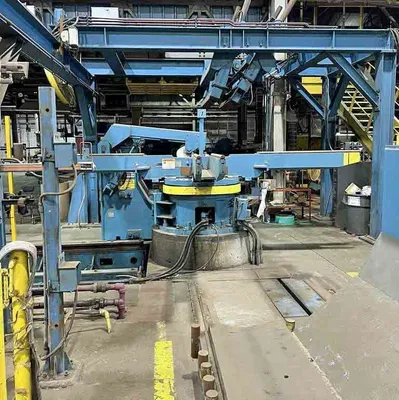

-4 Arm Entry Turnstile:
C-Hook Type Arms
Power Rotation

-Entry Scissor Lift Coil Car:
Powered Roller Top
Self-Contained Hydraulic Power Unit
Hydraulic Lift & Travel

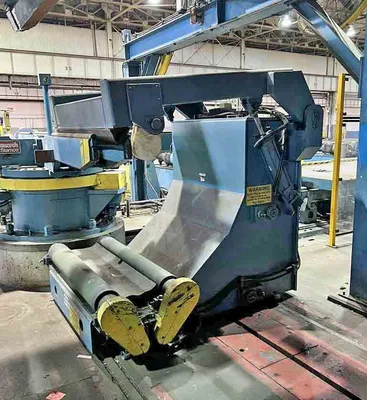

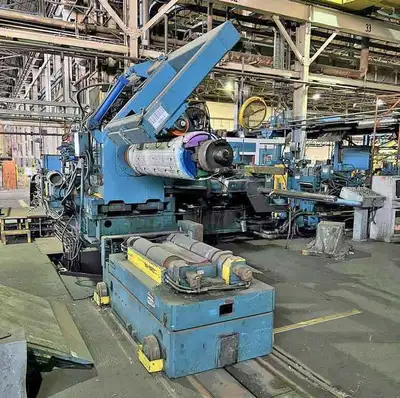

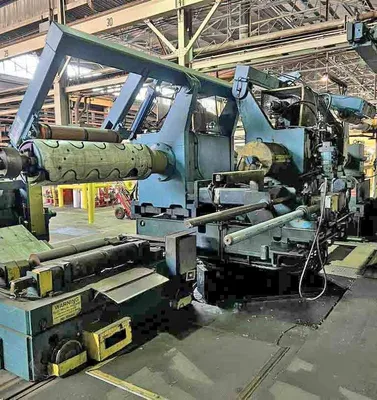

-Turret Type Uncoiler:
Hydraulic Expansion
60" Face Pumpkin Tooth Mandrels
Overarm Holddown Roll
DC Motor Drive & Brake
Slide Base

-Peeler Table:

-Entry Unit:
Entry Driven Pinch Roll, 75 HP DC Drive, 650/2200 RPM, 500 V
Traveling Design - delivers metal over Pit to Slitter Head

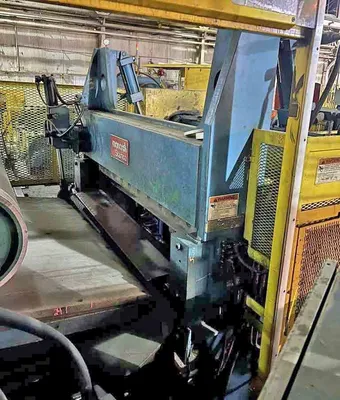

Crop Shear w/60" Blade

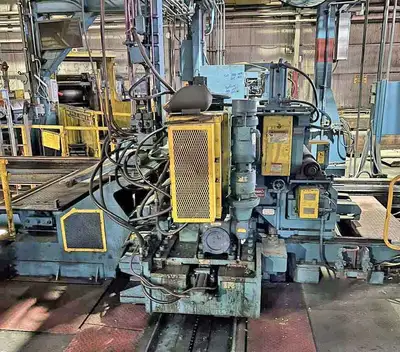

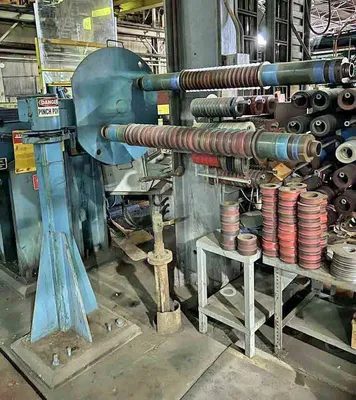

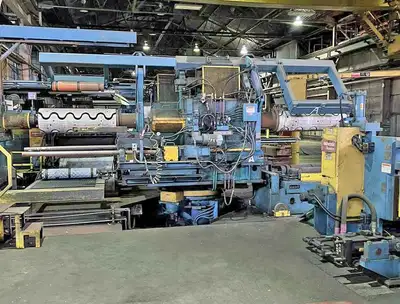

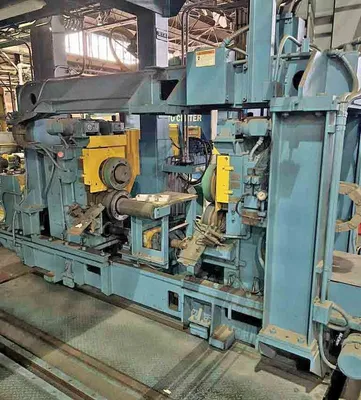

-Injector Slitter Head:
Driven Entry Pinch Roll Stand

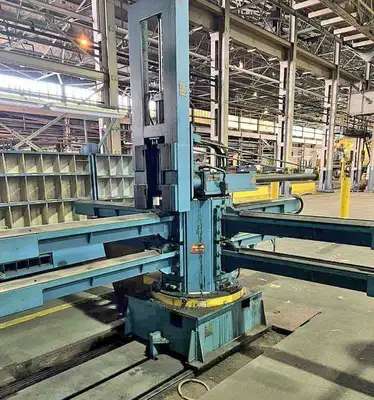

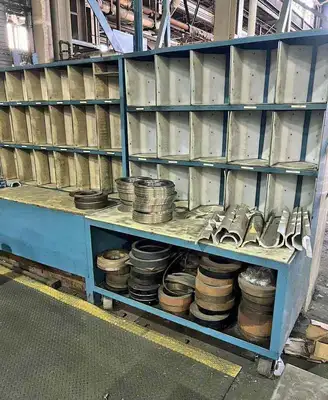

Tooling Change by 4 Arm Turret
(1) Slitter Head, 60" x 8" Dia. Arbors
(1) Double-Stub Edge Trimmer
Hydraulic Tooling Lock Up
200 HP DC Motor Drive, 650/2200 RPM, 500 V

-Scrap Baller:

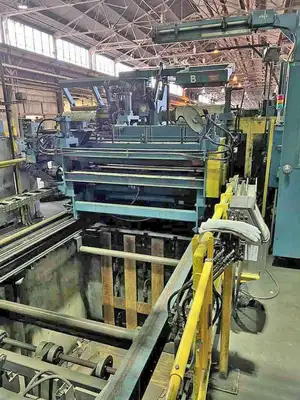

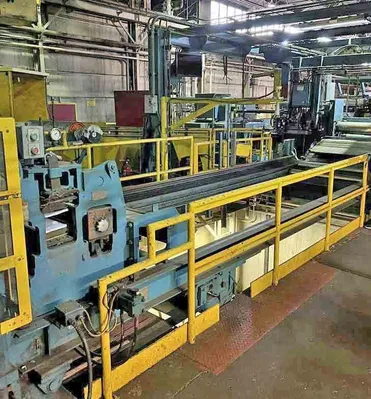

-Pit Carry Over Unit:
Cascade Rolls Entry & Exit

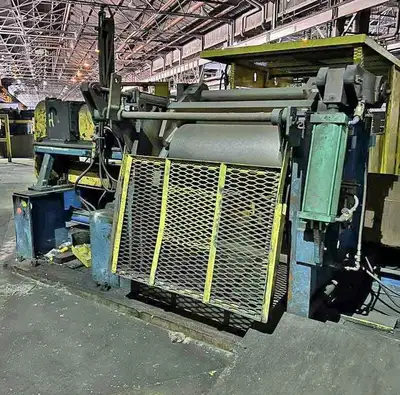

-Combination Pad & Roll Type Tension Stand:
Pneumatic Air Bag Type Pad Tension
DC Motor Drive / Brake for Rolls
16" Diameter Urethane Covered Rolls
Hydraulic Crop Shear

-Free Standing Overarm Separator:
Entry Deflector Roll
Threading Table

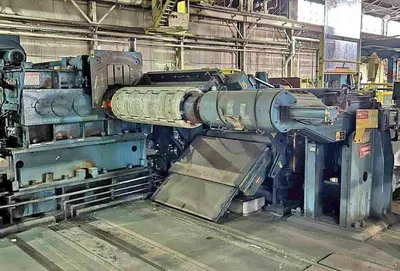

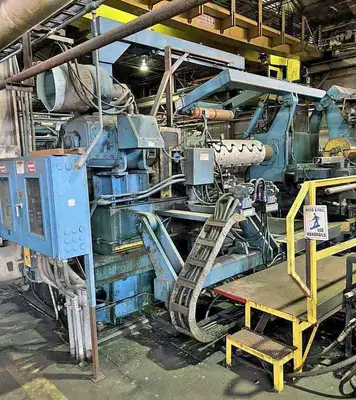

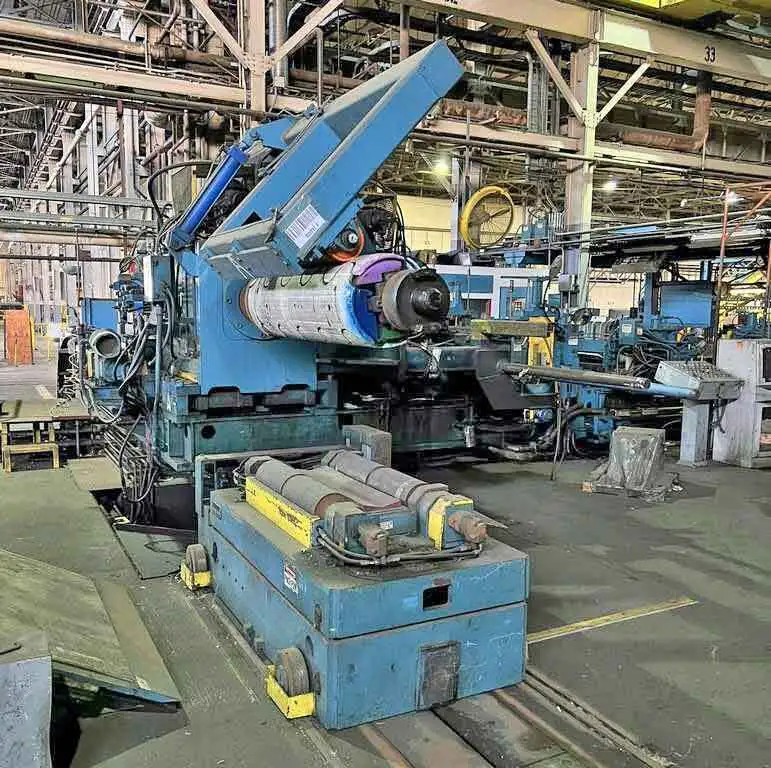

-Recoiler:
16" Dia. Drum
20" & 24" Bolt-On Pads
Approx. 11.5" Dia. Main Shaft
Hydraulic Gripper & Expansion
Hydraulic Pushoff
200 HP DC Motor Drive, 650/2200 RPM, 500 V
Horsburgh & Scott 2 Speed Reducer
Outboard Bearing Support
Passline: 62" from Floor to center of Drum

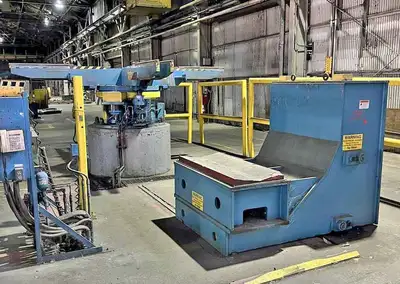

-Exit Coil Car:
L Type
Powered Rollers on Bed
Self-Contained Hydraulic Power Unit
Hydraulic Lift & Travel
Overarm Holddown Arm

-4 Arm Exit Turnstile:
C-Hook Type Arms
Power Rotation

-3 Pump Hydraulic Power Unit

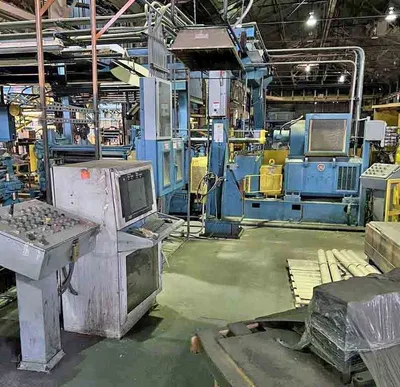

-Westinghouse/Avtron Advanced Digital Drives for DC Motors

Sold "as is, where is" EXW removed and in storage, USA.
