60" x 7.00" x 50,000lb. Cincinnati/Herr Voss Slitting Line: S-321

Description

Manufacture
- Herr Voss
- and others

Material
- Hot & Cold Galv. Steel

Strip Width
- 60" max (1524mm)

Strip Thickness
- .011" - .135" (0.28mm - 3.43mm)

Coil Size
Entry ID = 15 - 39"
Entry OD = 72" max
Weight = 50,000 lbs.

Line Speed
- 570 FPM (Gear, Low)
- 970 FPM (Gear, High)
- 1600 FPM Max.

Hand of Line
- Right to Left

Equipment:
-Entry Coil Staging Platform
Capacity for (2) Coils

-Entry Coil Lift

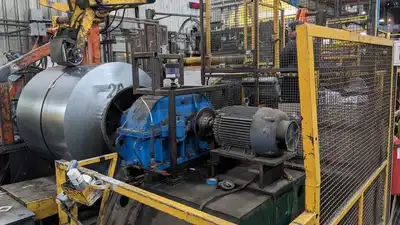

-Cone Type Uncoiler
Capacity: 50,000 lbs.
40 HP AC Motor Feed-Up on each Head
Disc Brakes
Holddown Roll

-Peeler Table
Entry Pinch Rolls
Entry Side Guides
Entry Crop Shear

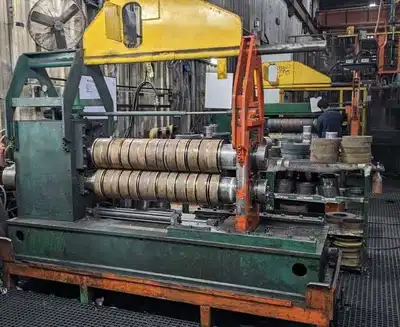

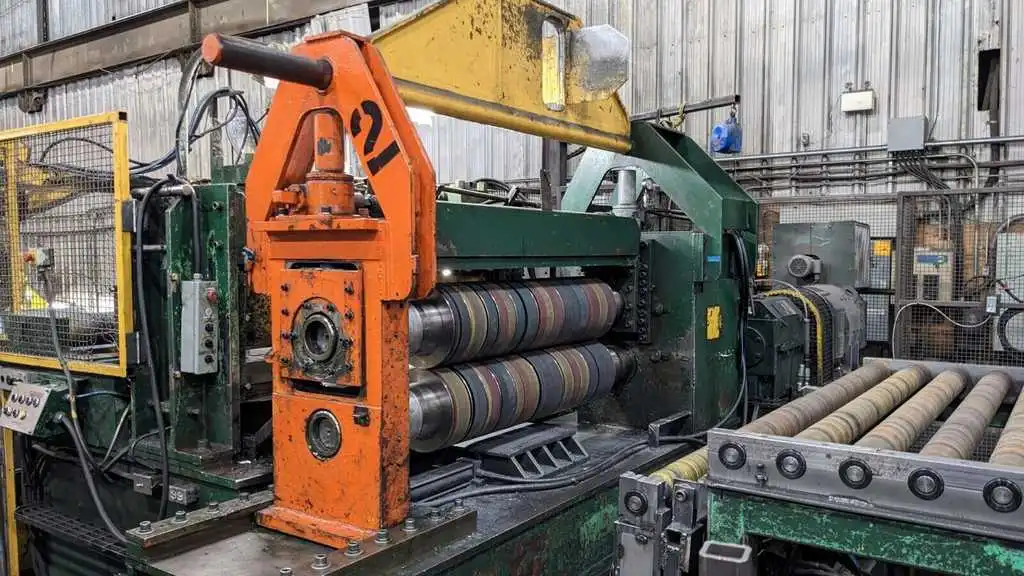

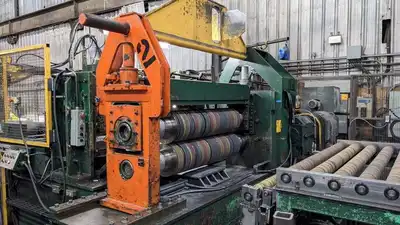

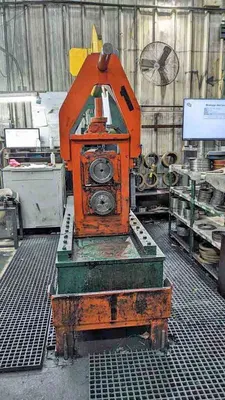

-(2) Slitter Heads: Cincinnati
Crane Type Removable Heads
7" Dia. Arbors
DC Drive Motor

-(2) Scrap Winders

-Looping Pit

-Drag Board Style Tension Stand

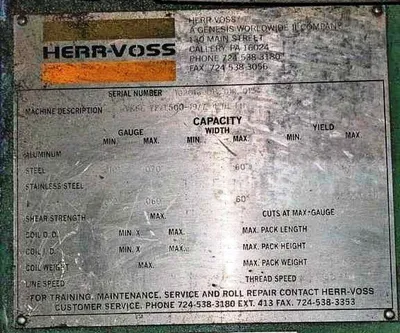

-Herr Voss Strand Extensioner
72/1.500-19/7 4 HI
Max Capacity in Mild Steel - 0.070" thick
1.50" Dia. x 72" face Rolls
19 Work Rolls
7 Flights of Motorized Backups
200 HP DC Motor, rebuilt 2019

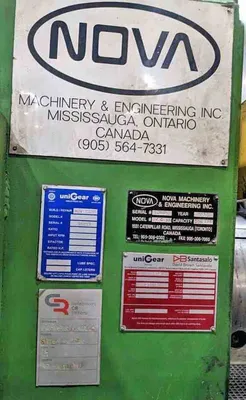

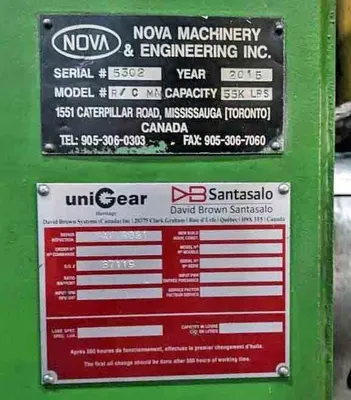

-Recoiler: Nova, New in 2015
Capacity: 55,000 lbs.
20" Dia. Drum
Hydraulic Grip and Expand
Hydraulic Push Off
2 Speed Reducer
200 HP DC Motor

-Free Standing Overarm Separator:

-Exit Coil Car:

-4 Arm Turnstile:
Powered Rotation
Pull Off Device

-Downlayer
In-Line Discharge

-Banding Table
Semi-Automatic Banding Head

-Automatic Stacker
O.D. Grab

-Lazy Susan Sort Table
(6) Stacking Positions
Powered Horizontal Rotation

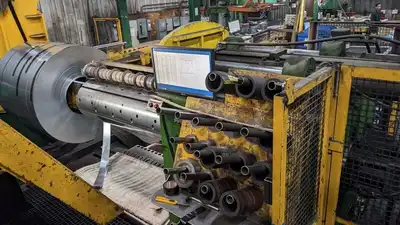

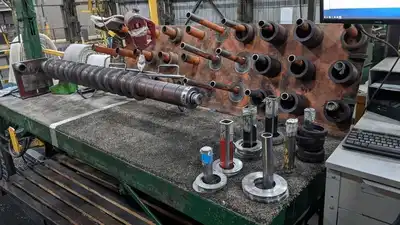

-Slitter Tooling Included

Sold "as is, where is" EXW on foundation and in operation as of July 2026.
