BRANER 72" x 9.00" x 50,000lb Slitting Line: S-320

Description

Manufacture:
- Braner
- New in ??

Material Width:
- 12" - 72"
Material Thickness:
- 0.020" - 0.187"

Coil Size:
- Coil ID = 20" - 24"
- Coil OD = 72"
- Weight = 50,000 lbs

Hand of Line:
- Right to Left

Equipment:

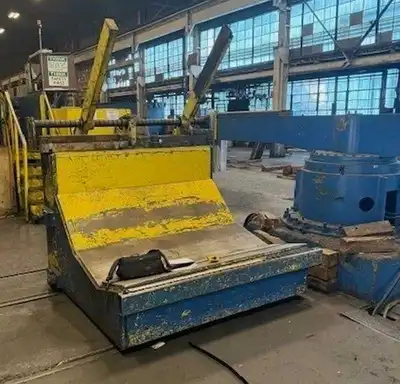

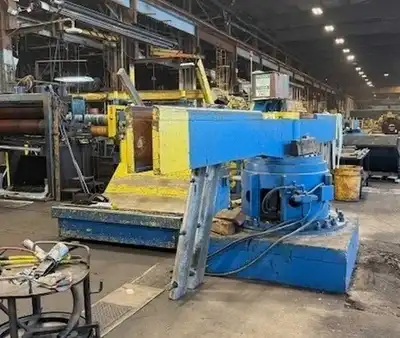

-Entry Turnstile:
Powered Rotation

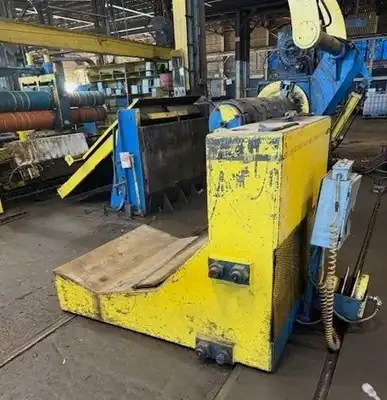

-Entry L Type Coil Car:
Hydraulic Lift and Traverse

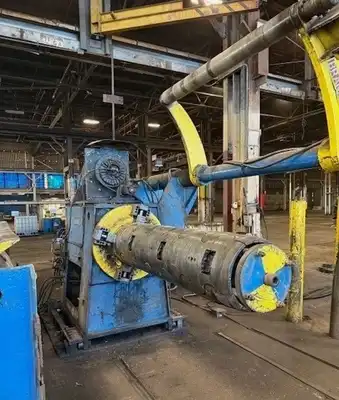

-Mandrel Uncoiler:
Powered Holddown Roll
Hydraulic Mandrel Expansion
Air Cooled Brake
Feed-up Motor
Sliding Base
Hydraulic Peeler Table

-Driven Entry Pinch Rolls:
Adjustable Edge Guides

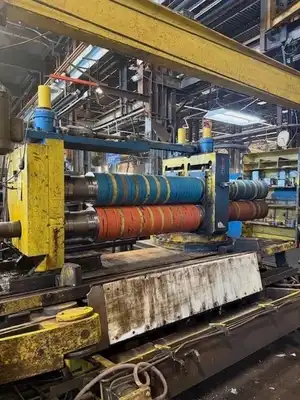

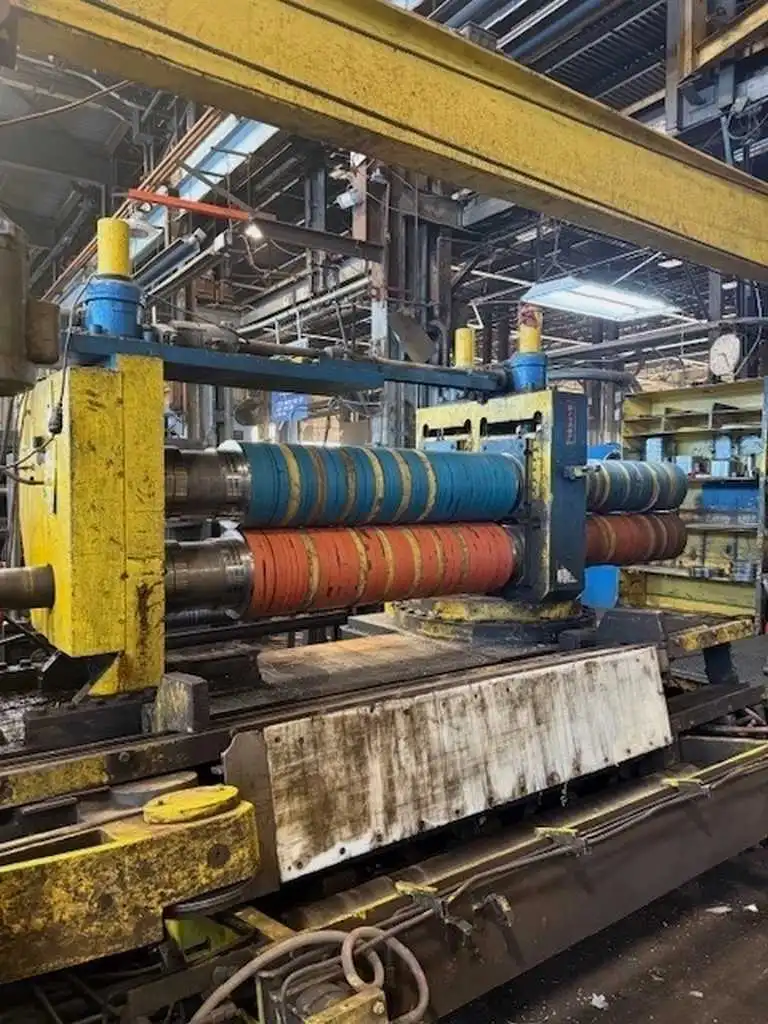

-Two (2) Slitter Heads:
Turret Type Slitter Base
Arbor Diameter: 9"
Powered Head Rotation
Powered Arbor Adjustment
Motor: 100 HP DC
Pit Cross Over Table

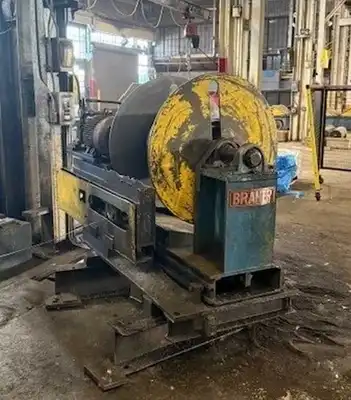

-Two Scrap Winders:
Powered Open / Close
Heavy Duty Design

-Tension Stand:
Combo Tensioning Design
Pneumatic Tension Pads
Coated Tension Rolls
Wichita Tension Brake

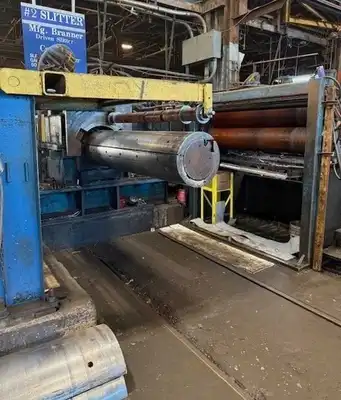

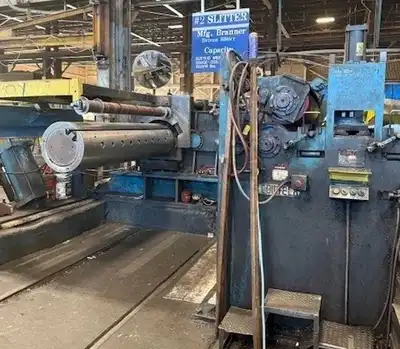

-Recoiler:
Powered Gripper
Hydraulic Overarm Separator
Powered Pushoff
Motor: 250 HP DC

-Exit L Type Coil Car:
Hydraulic Lift and Traverse

-Exit 2 Arm Turnstile:
Powered Rotation

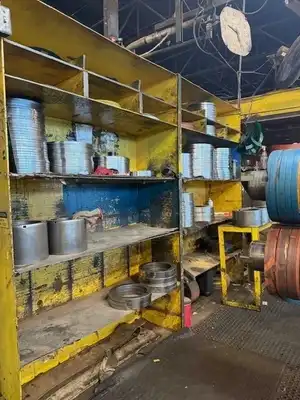

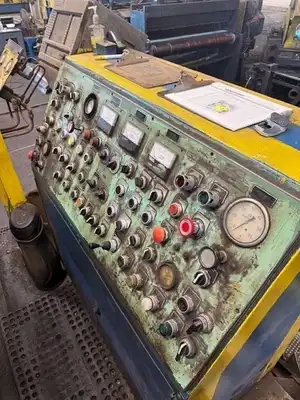

-Electrics, Hydraulics, Control, and Tooling included

Sold "as is, where is" EXW on foundation, USA.
