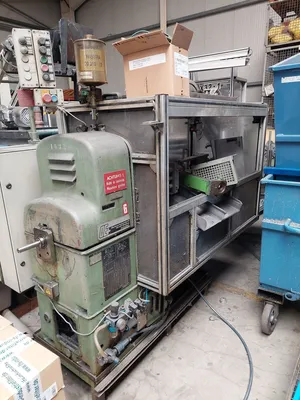

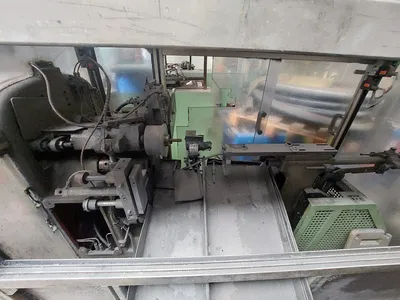

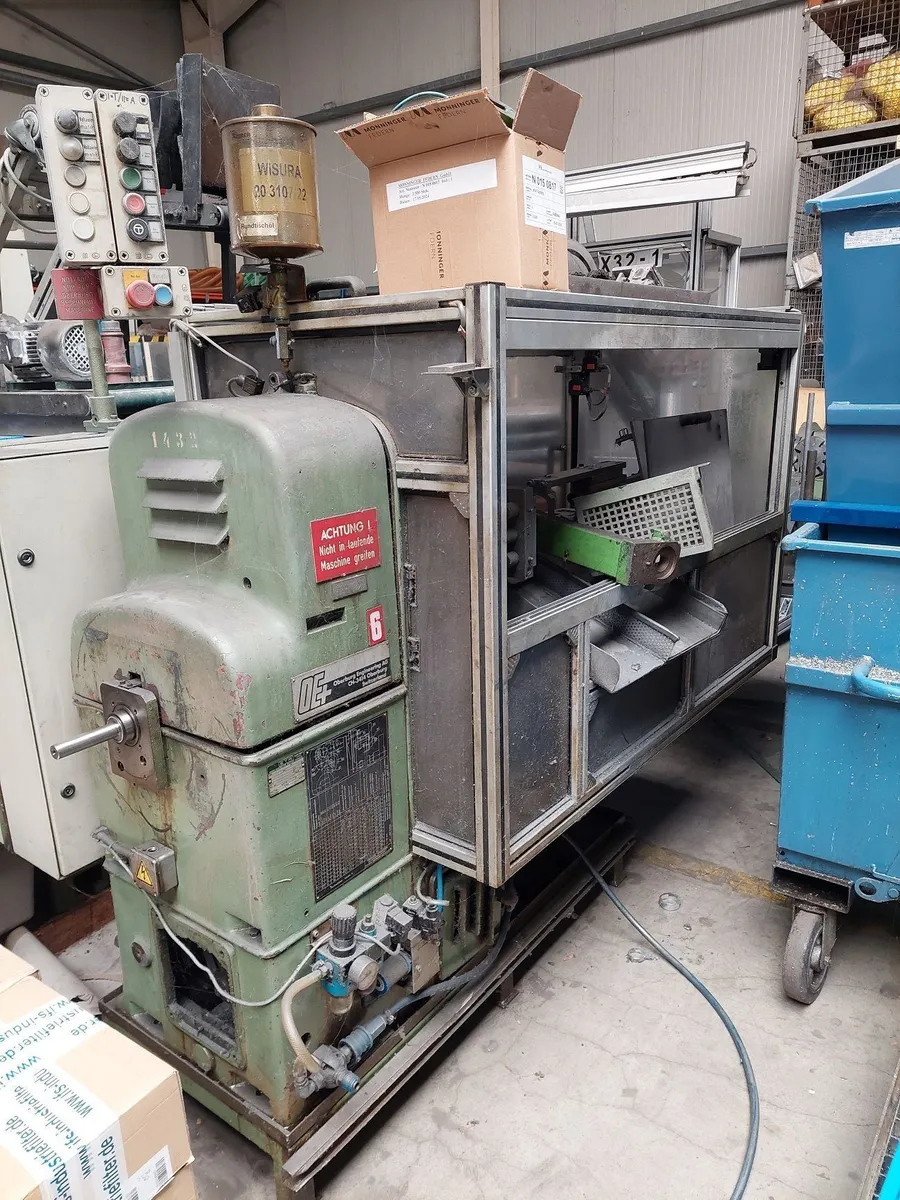

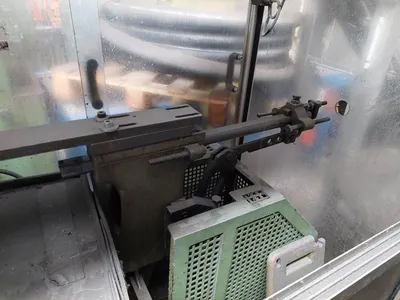

OBERBURG BGD 150/200 x30 Aluminum Can Trimmer for Large Aluminum Cans and Bottles: IEX-218b

Description

Manufacture:
- Oberburg Engineering Corp. (Switzerland)
- Model: BGD 150/200 x30

Status:
- Off foundation, in warehouse storage

Materials:
- Cans, filter housings, and technical extrusion parts.

Part Size Capacity:
- Diameter: 17 - 110 mm
- Length: 230 mm

Automated Functions:

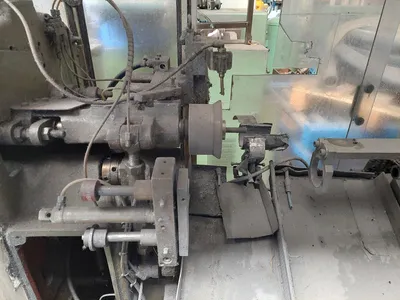

- Trimming (x30 system)
- Thread Rolling
- Beading

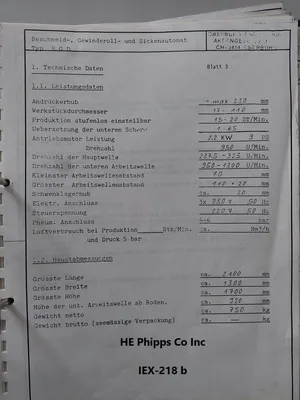

Performance Data:
- Ram stroke: 210 mm
- Workpiece diameter: 17 – 110 mm
- Production rate (continuously adjustable): 15-20 pieces/min

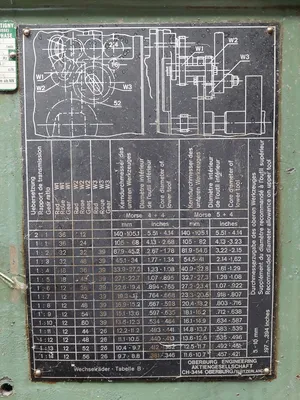

- Gear ratio of lower shear: 1:65

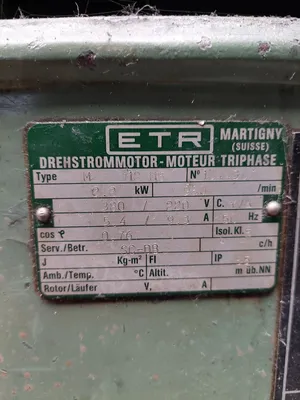

- Drive motor: 2.2 kW / 950 rpm
- Main shaft speed: 237.5-3250 rpm
- Lower working shaft speed: 950-1300 rpm
- Minimum working shaft spacing: 70 mm
- Maximum working shaft spacing: 110 + 20 mm
- Swivel bearing stroke: approx. 20 mm
- Electrical connection: 3x 380V 50Hz / 220V 50Hz
- Compressed air connection: 4-6 bar
- Air consumption during production at 5 bar: ____ m³/h per piece/min

Dimensions:
- Maximum length: approx. 2100 mm
- Maximum width: approx. 1300 mm
- Maximum height: approx. 1700 mm
- Height of lower working shaft from floor: approx. 920 mm (36.2in)
- Net weight: approx. 750 kg (1653 lbs)

Sold "as is, where is" EXW. Europe.
