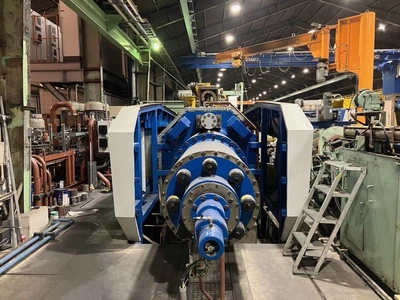

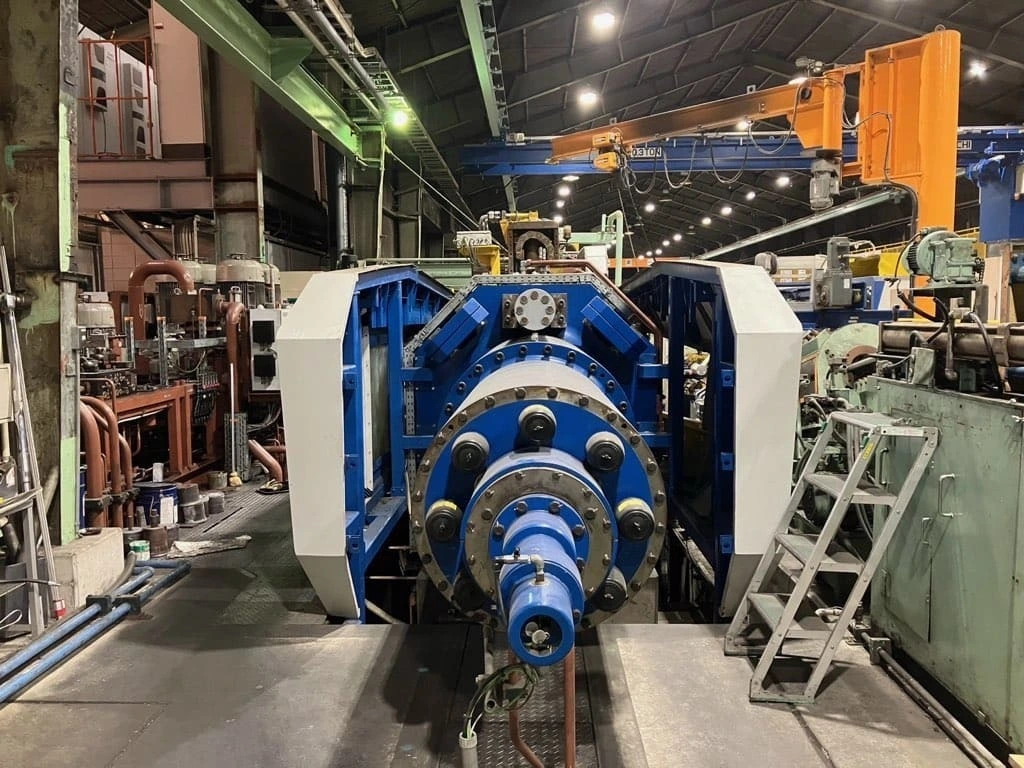

2016 - 1450ton x 6" SMS Aluminum Extrusion Press Only: EX-527

Description

Manufacturer:
- SMS
- Model/Type = HybrEX
- New 2016

Tonnage:
- 1450 tons (14.5MN)
- 310 bar pressure

Billet Size:
- 160mm (6.3") x 800mm max (31.5")

Status:
- In operation
- Scheduled shutdown date = August 31, 2026
- Only the Press is for sale. The Handling Equipment is NOT included.
- Dismantling to begin September 3, 2026

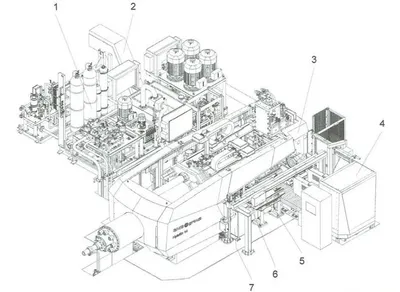

Scope of Supply:
Press proper
Press motors and pumps
Billet Container Holder
Cassette Slider
Tool Cassette
Discard Shear
Intermediate Table
Billet Slide
Billet Loader
Discard Conveyor
Hydraulic Equipment
Electrics

Specifications:

Press:
- Press Stroke: 960mm
- Press Speed: 17-23 mm/s (at 1450 tons = 17mm/s)
- Extruding center: 1000mm
- Extruding height: 3400mm
- Compressed Air: 6 bar

6" Billet Container:
- Pressing force: 140ton
- Pullback force:100ton
- Intake stroke: 1155mm
- Die Hole/Bore range:160mm
- Container length: 830mm
- Billet length range: 250-800mm
- Pressure plate opening: 190mm diameter x 230mm width
- Tool package: 330/ 277.5mm Diameter x 380mm Height
- Drive: 15kW x 2 units
- Weight: 2800kg (6,173 lbs)

Electric Servo Drive:
- Billet Container Drive Power: 2 x 15.7kw motors
- Moving Crosshead Drive Power: 2 x 31.7kw motors
- Billet Loader Drive Power: 14kw

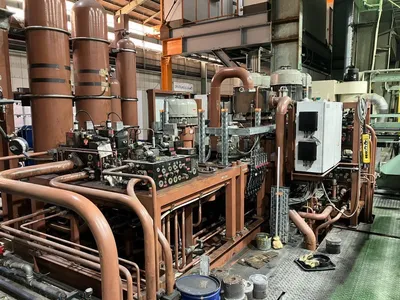

Hydraulic System:
- 4 x High Pressure, Double Internal Gear Oil Pumps
- Operation pressure: 310bar, max.
- Transport amount, max.: 172L/min
- Drive force: 75KW
- Drive RPM: 400-2200 rpm
- Motor type: V1
- High pressure Control Pump:
Operation pressure: 320bar, max.
Transport amount, max.: 9.2L/min
Drive force: 5.5KW
Drive RPM: 400-1500 rpm
- Low Double Pressure Pump:
Operation pressure: 200bar, max.
Transport amount, max.: 90L/min
Drive force: 37KW
Drive RPM: 400-1500 rpm

Electrics:
- 220/440 Operating voltage (+/- 5%)
- 3 phase / 60Hz
- The connected load of the motor switching device:600kVA
- The connected load of container heater switching device: 35kVA

Controls:
- Control System: Siemens S7
- Program Language: English

Sold "as is, where is" without warranty FOB Asian Ocean Port.
