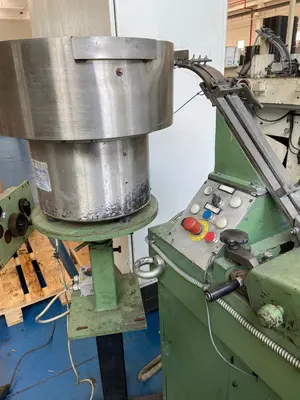

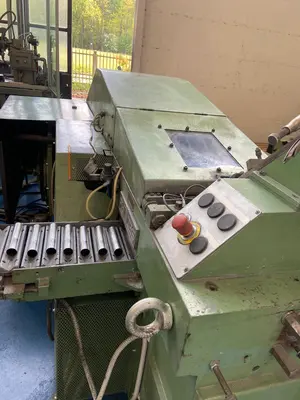

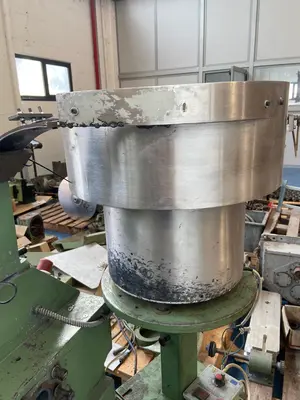

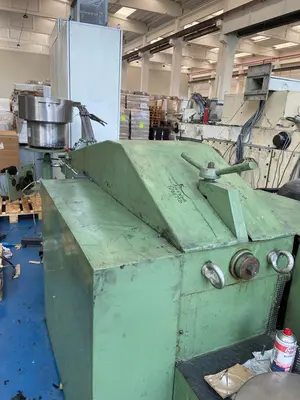

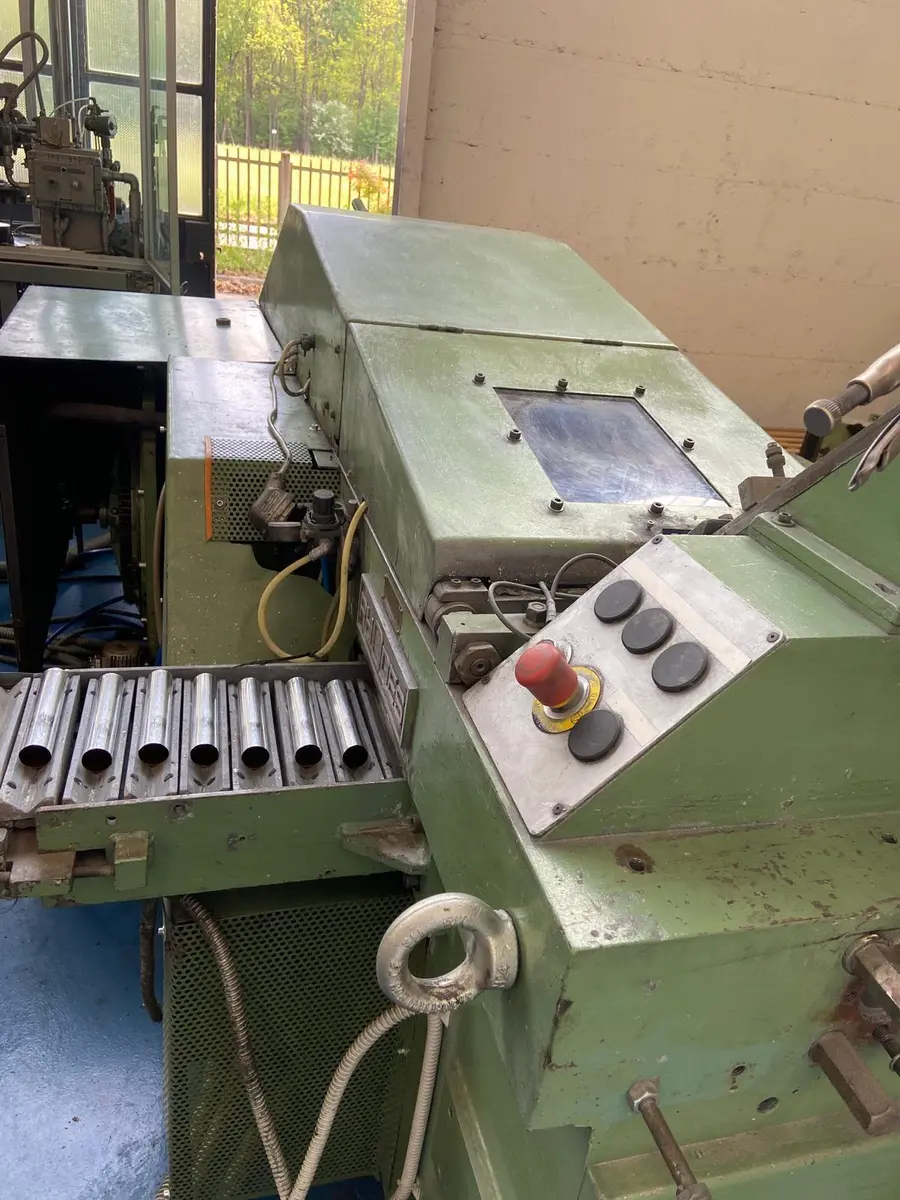

Rhodes KJX Impact Extrusion Press: IEX-223

Description

Manufacture
- Rhodes
- New: 1990
- Model: this is a KJX press but there are no markings or manuals so we cannot determine the model number. From the tube sizes the current Owner ran on this press, it must be a KJX 32 or KJX 25. I have included specs for both models below.

Material
- Aluminum and zinc

Tube Diameters
- Press design:
- Currently running: 19, 22, 25, and 28mm

Speed
- Press design:
- Currently running: 110 pieces per minute

If this Press is a KJX 25, the specs are:
- Tonnage = 60 tons
- Stroke = 254 mm
- Speed = 80 to 170 strokes per minute
- Tube size
Maximum Ø with 0.12mm wall = 25 mm
Maximum Ø with 0.30mm Wall = 30 mm
- Drive Motor = 10 kW
- Size = 2870mm L x 1310mm W x 1520mm H x 6000 kg

If this Press is a KJX 32, the specs are:
- Tonnage = 120 tons
- Stroke = 172 mm
- Speed = 150 to 280 strokes per minute
- Tube Size =
- Maximum Ø with 0.30mm Wall (Zinc) = 32 mm
- Drive Motor = 37 kW
- Size = 2770mm L x 1730mm W x 1650mm H x 10,000 kg

Sold "as is, where is" FCA Europe.
