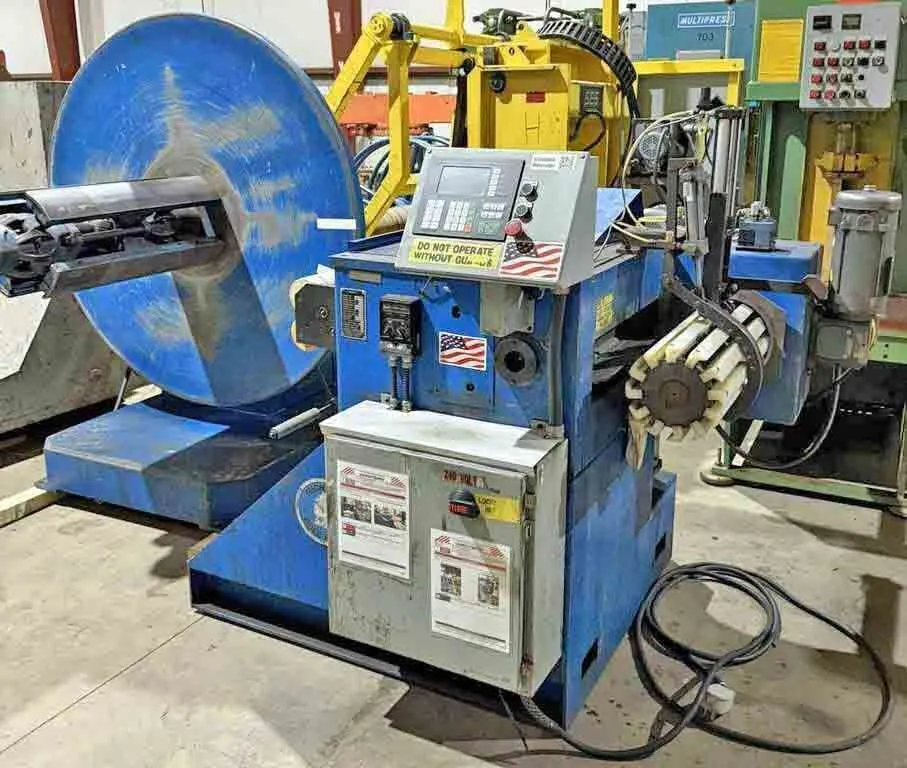

Michigan RF Trim Coil Winding Line - 24" x 0.024": S-318

Description

Manufacture:
- Michigan Roll Form
- Uncoiler = Model VHCH 60 / SN: 60269
- Rewind = Model 24CLR / SN: 60278

Capacity: 24" x 0.024" Mild Steel

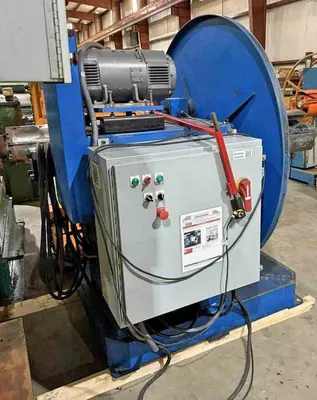

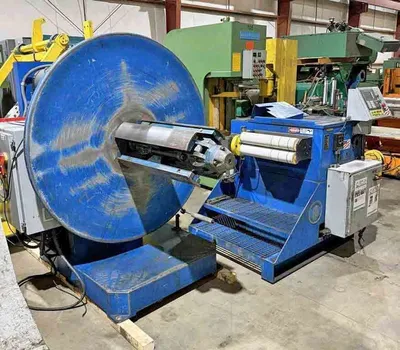

Motorized Uncoiler:

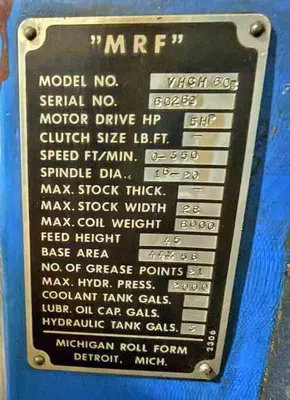

- Model: VHCH 60
- Serial Number: 60269
- Weight Capacity: 6,000 lbs.
- Width: 26"
- Hydraulic Expansion: 16" - 20"

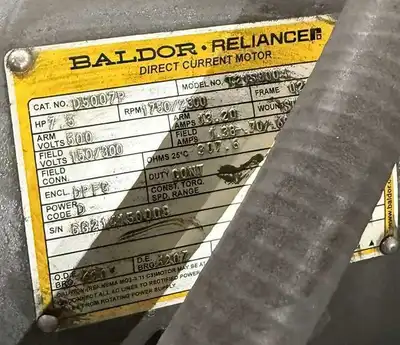

- 7.5 HP Baldor DC Motor, 1750/2300 RPM, 500 V
- Line Speed: 0 - 350 FPM
- Self-Contained Hydraulic Power Unit

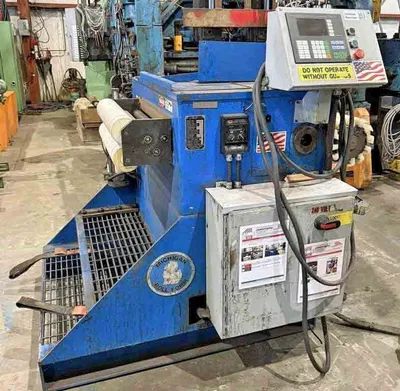

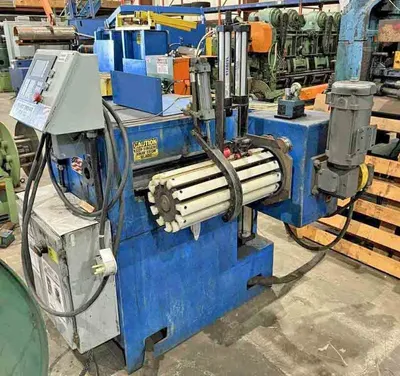

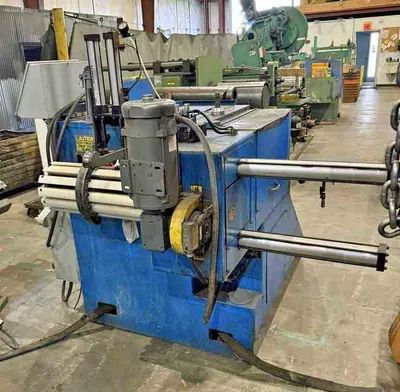

Straightener & Rewind Unit:

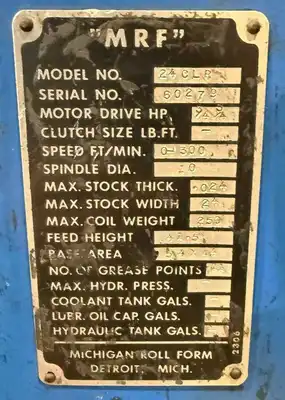

- Model: 24CLR
- Serial Number: 60278
- Stock Width Maximum: 24"
- Maximum Thickness: 0.024"

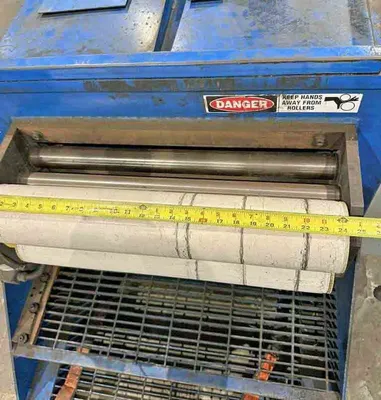

- Entry Passline Rolls
- Entry 3 Roll Coil Breaker
- Line Speed: 0 - 300 FPM

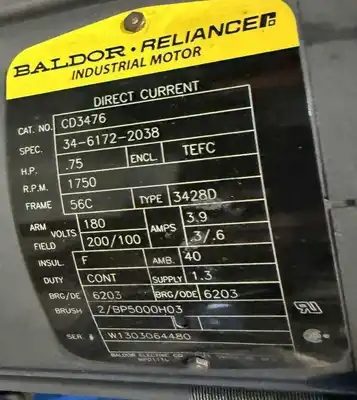

- Straightener Motor: 0.75 HP Baldor DC Motor
- Rewind Motor: 0.75 HP Baldor DC Motor, 1750 RPM

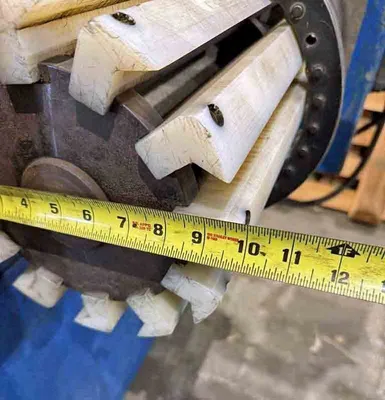

- Rewind Mandrel Diameter: 10"
- Rewind Coil Weight: 250 lbs. max.
- Air Cylinder Pushoff
- Passline Height: 41.5"
- Touchscreen Control Panel

Included:
- Digital copies of the controls and mechanical GA drawings

Line Direction: Left to Right

Weights and Dimensions:
- Approx. 7' L x 7' W x 6' H x 4,000 lbs.

Sold "as is" without warranty FCA our warehouse loaded on your truck or loaded in your container - Ohio, USA. Compare to a new unit which costs USD 275,000 with a 2 year lead-time.
