72" x .187" x 60,000lb. Chicago Maxisota Slitting Line with Two Injector Heads and Braner Turret Stacker Banding Line: S-317

Description

Manufacture
- Chicago Slitter

Strip Width
- 74" entry / 72" exit (1879.6mm / 1828.8mm)

Strip Thickness
- .010” - .187”

Material
- Carbon CRCQ, HR , HRP&O
- Stainless 300 & 400 Series

Line Speed:
- 0 to 1000 fpm ( 305 mpm)

Coil Size
- Entry ID = 20" - 24" (508 - 609.6mm)
- Exit ID = 20" - 24" diam steel spools
- OD: 84" (2133.6mm)
- Entry Coil ID: 20” - 24”

Cutting Capacity:
- 8 Cuts @ .187"
- 15 Cuts @ .090
- 22 Cuts @ .062"
- 31 Cuts @ .010"

EQUIPMENT (Complete Line installed and in operation)

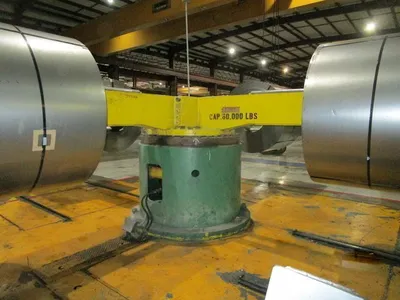

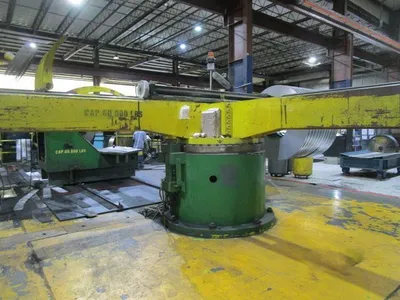

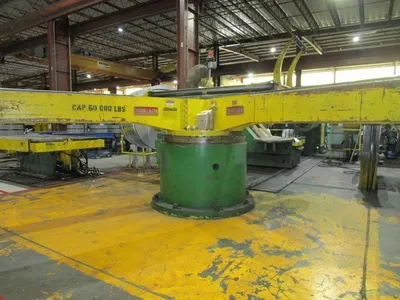

Entry 4 Arm Turnstile
- Power Rotation

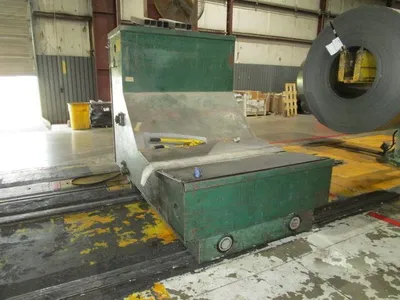

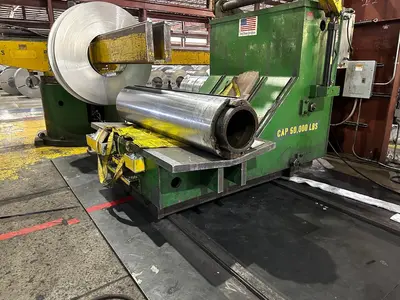

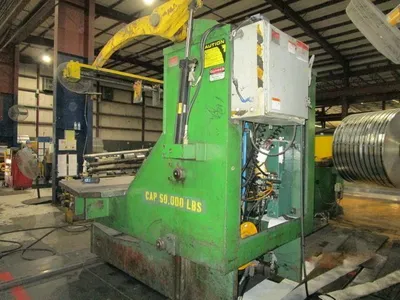

Entry L-Type Coil Car
- Floor Standing / Self Contained Hydraulics
- 36" Lift

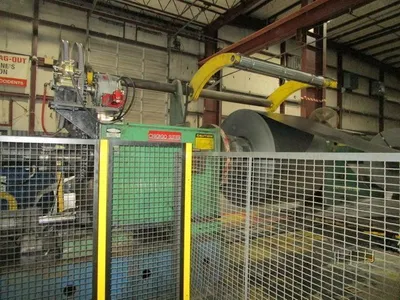

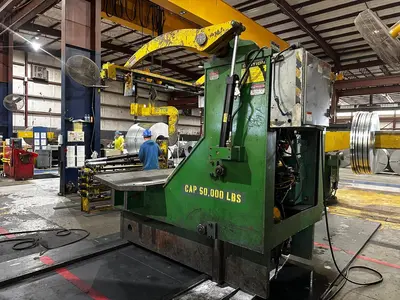

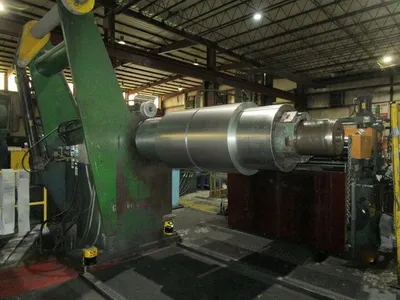

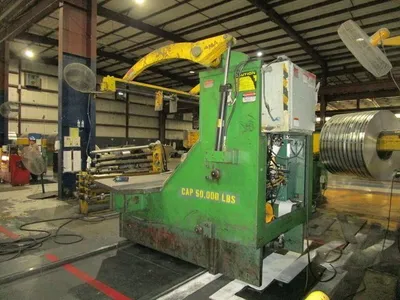

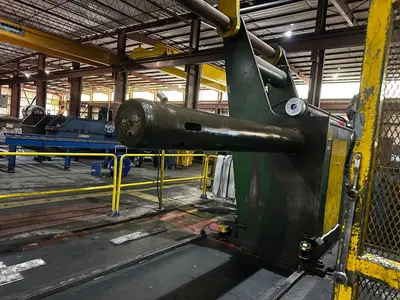

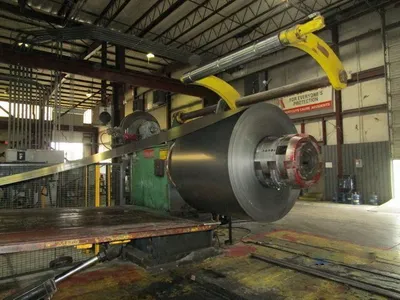

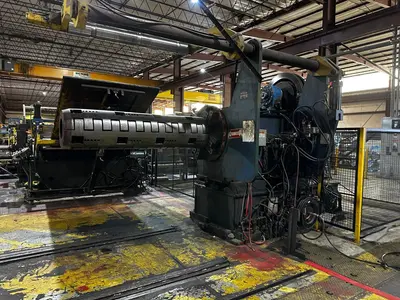

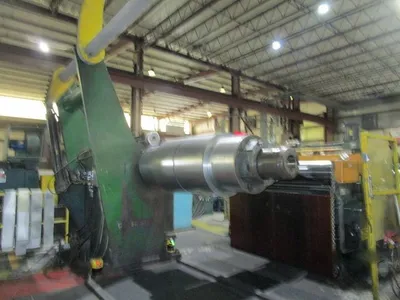

Mandrel Uncoiler
- 4 Leaf Hydraulic Expansion
- Pumpkin Tooth Mandrels
- Sliding Base

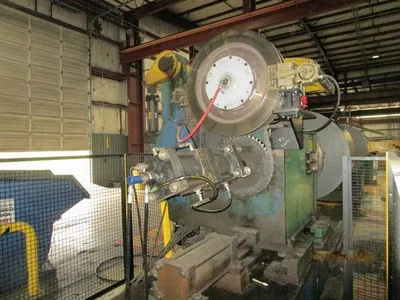

- NEW Wichita Dual Disc Brakes (2023)
- Powered Hold Down Roll
- Feed Up Drive

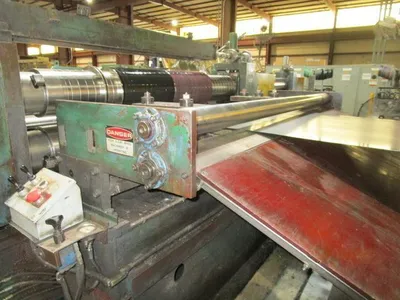

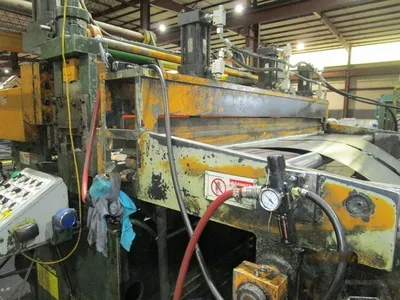

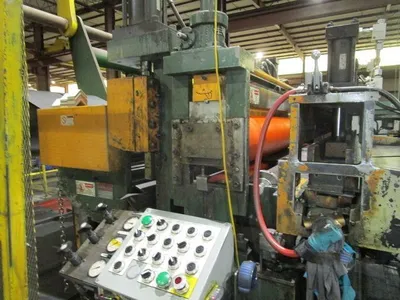

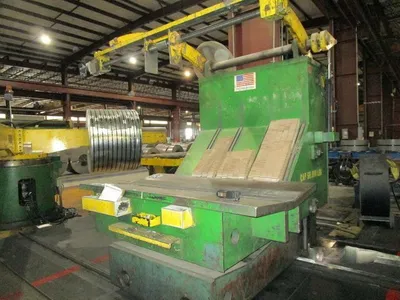

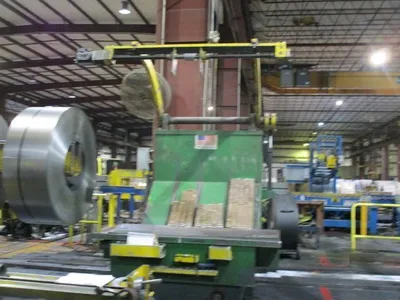

Entry Section

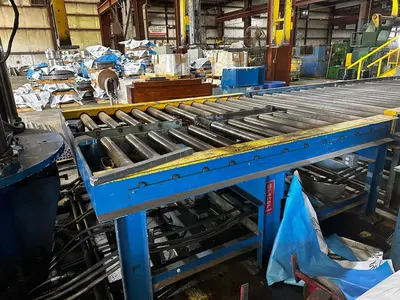

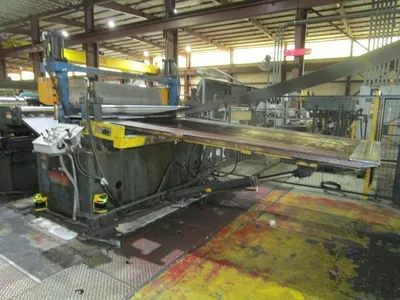

- Peeler Table
- Pinch Rolls
- Hydraulic Crop Shear
- Pinch Rolls
- 2 Sets Hydraulic Edge Guides

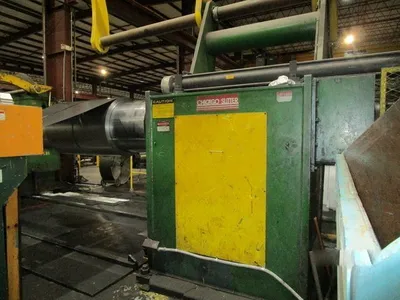

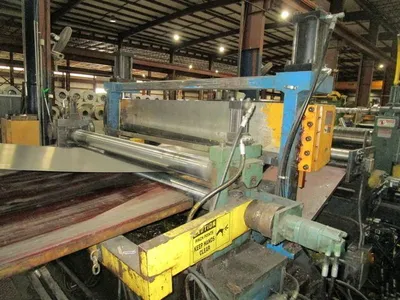

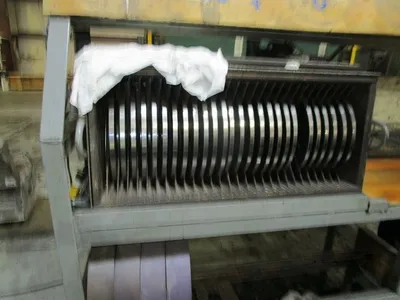

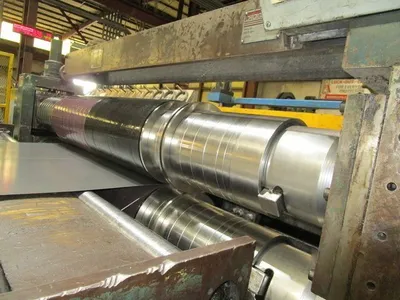

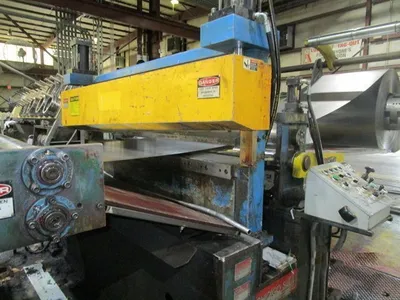

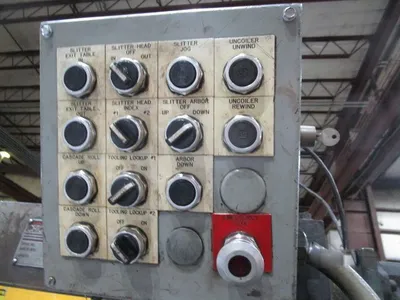

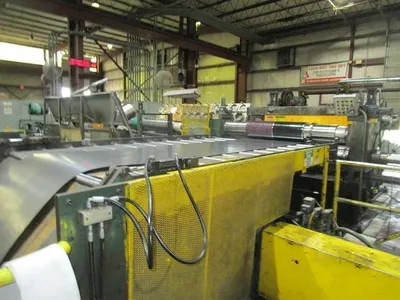

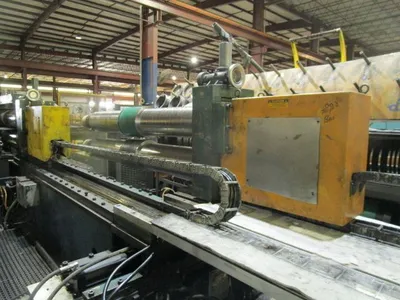

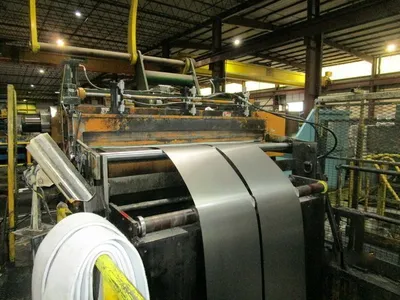

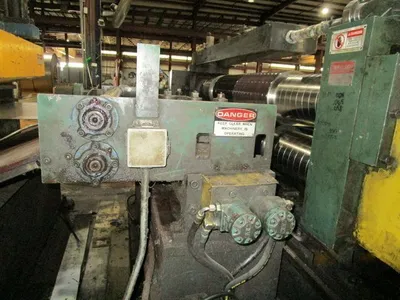

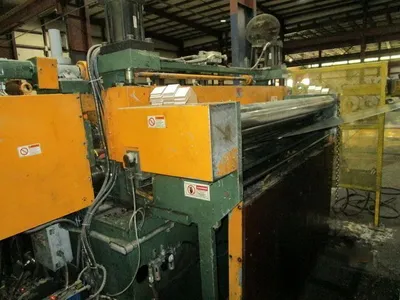

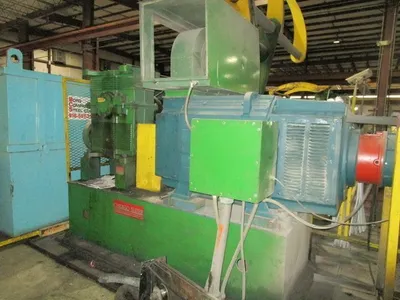

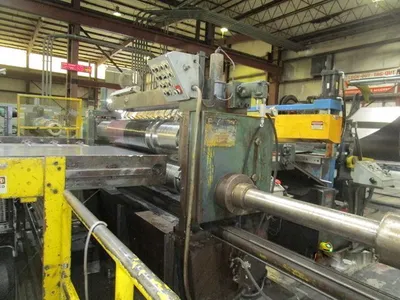

Slitter

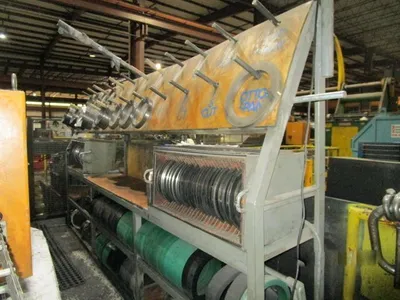

- Dual Injector Slitter Heads (2 Heads)
- 9” Diameter Arbors
- 13" - 11" Knife Diameters
- 150 HP DC Drive
- Hydraulic Arbor Adjustment
- Hydraulic Tooling Locking & Release Arbors
- Feed Up Table
- Shimless Tooling

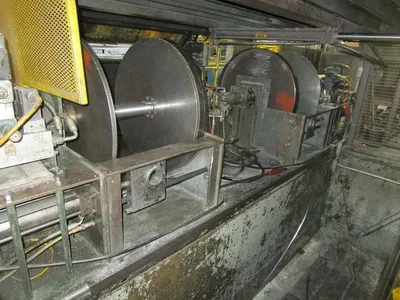

Scrap Winders
- Two (2)
- with Variable Speed Control

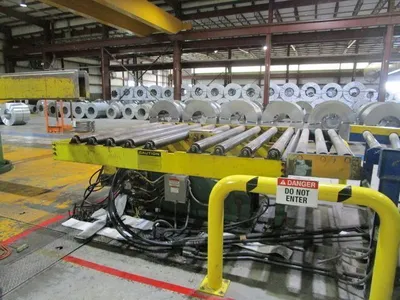

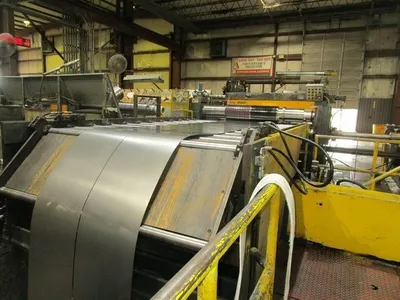

Looping Pit
- Cascade Rolls

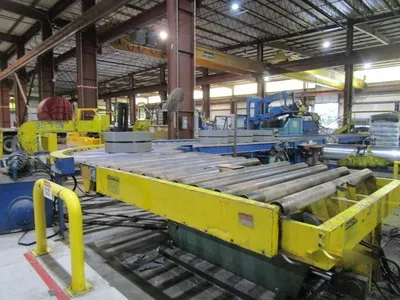

- Cross Over Table

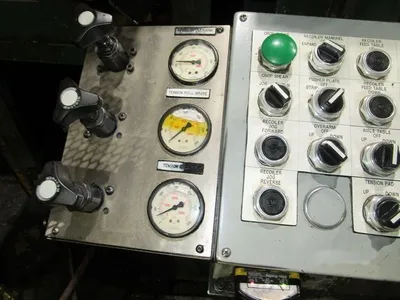

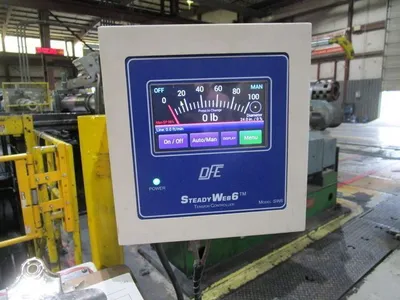

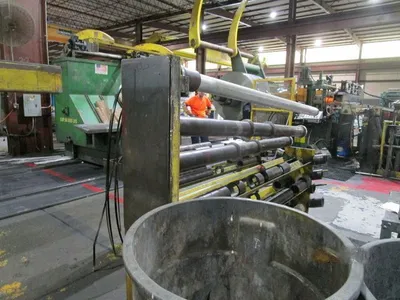

Rotary Drag Board Tension Stand
- Drag Pad with Air Bladder Pressure
- 3 Air Cylinders Top Pressure

Rotary Drag Roll With Dual Hydraulic Drag Brakes
- Air to Oil Cooler
- 3M Synthetic Tension Roll
- 9" Diameter Rolls
- Tension Roll Quick Disconnect
- Tooling Bar

Exit Crop Shear

Exit Pass Line Roll

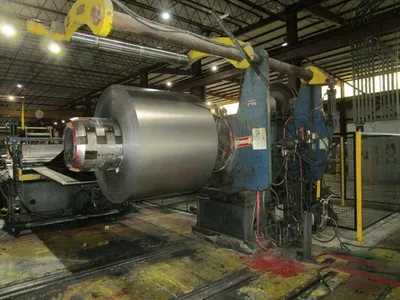

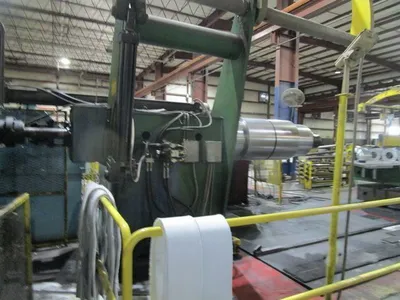

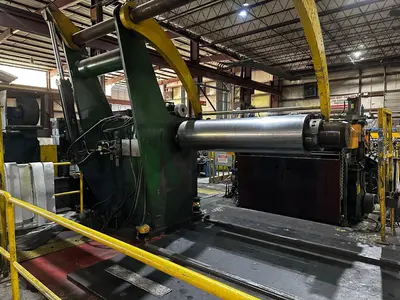

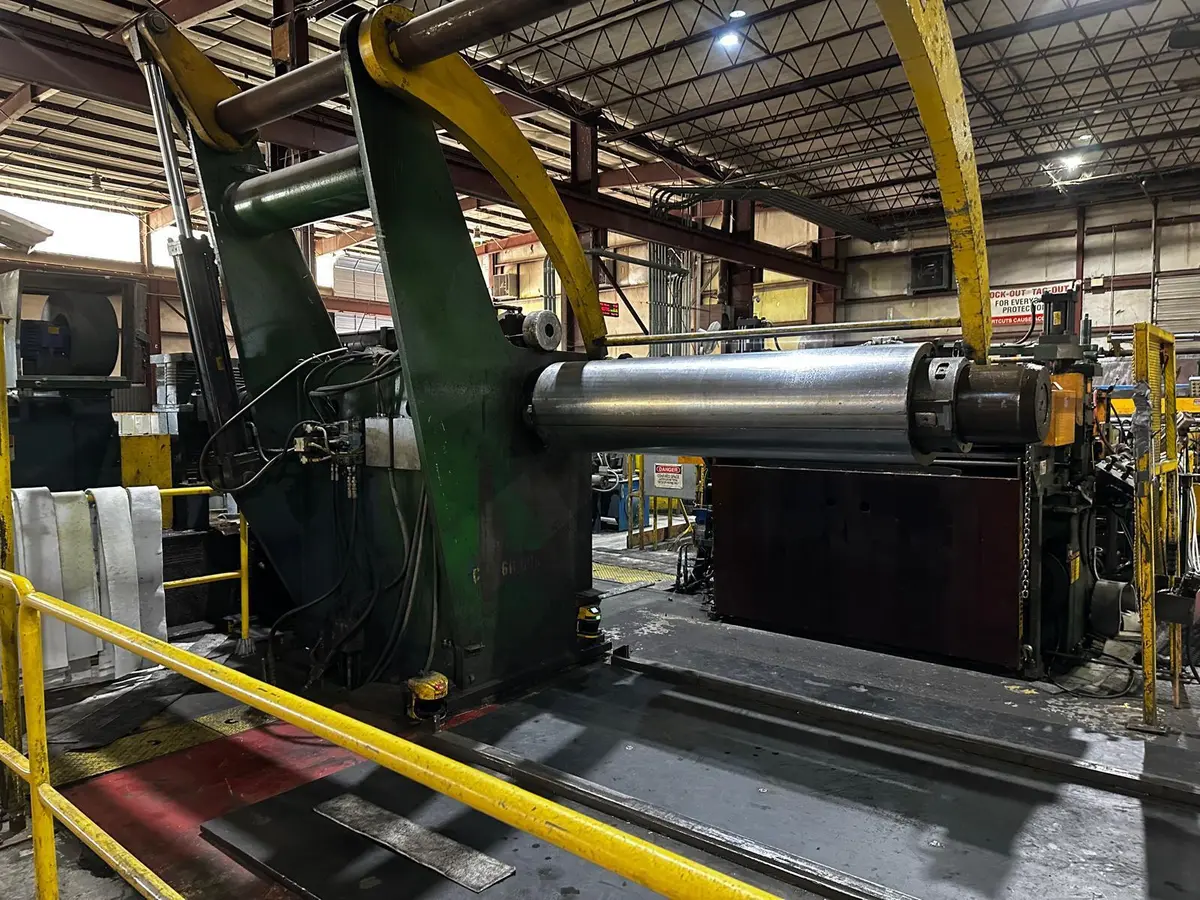

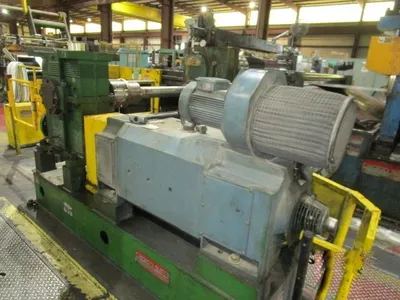

Recoiler
- 3 Segment Hydraulic Drum

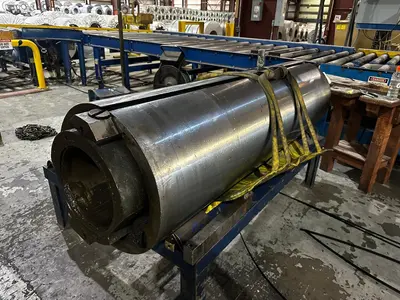

- 20” & 24” Dual Sleeve Drums
- Overarm Separator
- Hydraulic Push-Off
- 200 HP DC Drive. 300/1800 RPM , 500 Volt

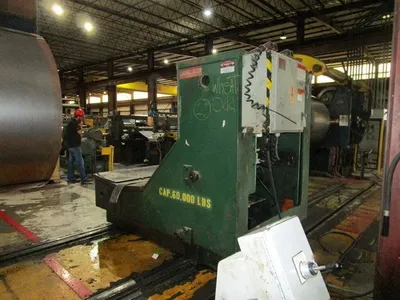

Exit L-Type Coil Car
- Floor Standing / Self Contained Hydraulics
- 36" Lift
- Coil Hold Down Roll
- Coil Holders

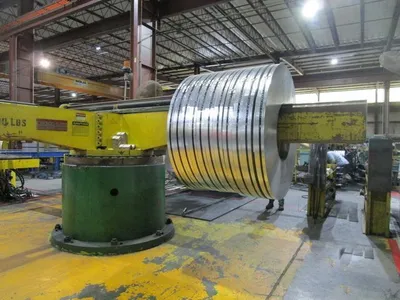

4-Arm Exit Turnstile
- Power Rotation
- Power Push-Off

Chicago Banding Line
- 15,000lb Horn Type Coil Downlayer
- 84” Coil OD
- 18" Max Coil Width
- Powered Rolls

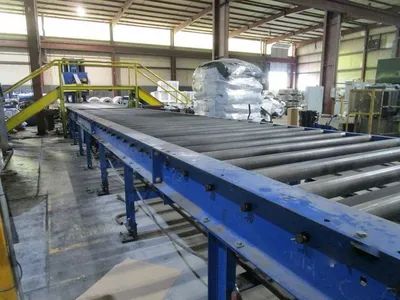

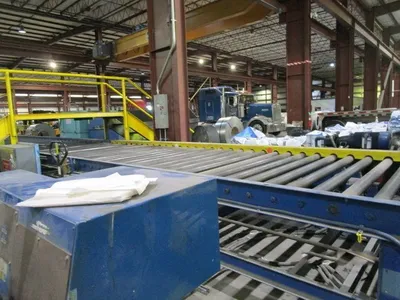

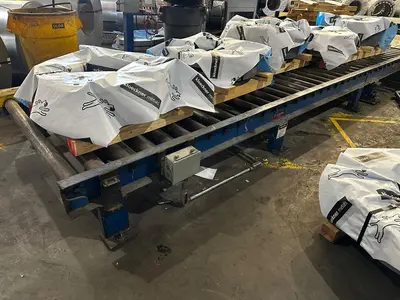

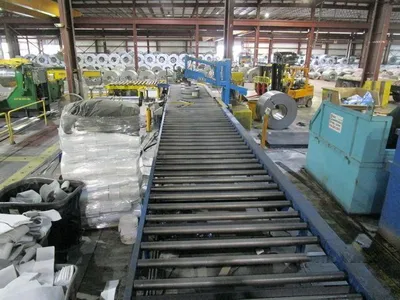

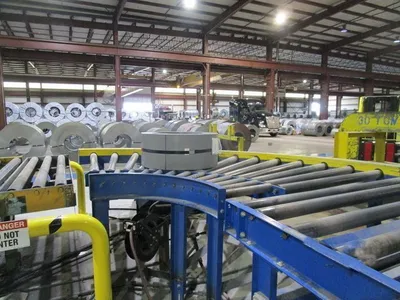

- 45-Degree Conveyor
- 15 foot Powered Conveyor

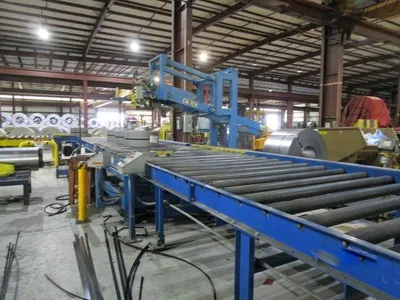

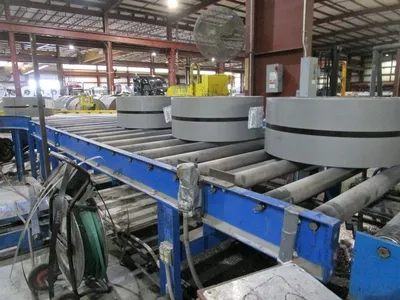

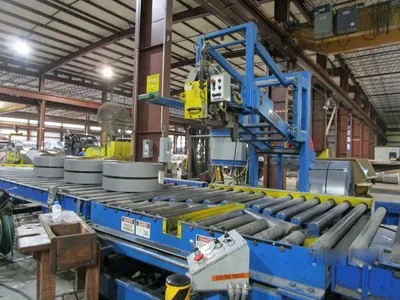

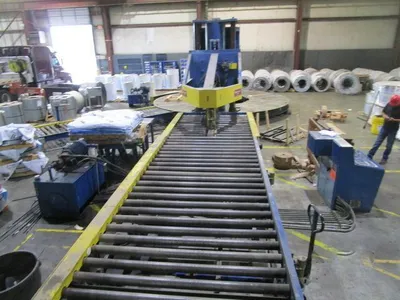

Coiltech Banding Table
- Signode Banding Head
- 3 Conical Rolls

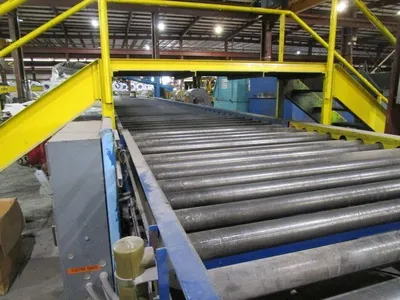

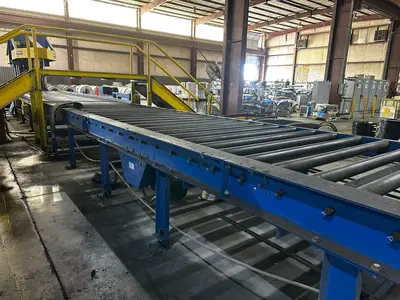

- 60 foot Powered Conveyor
- Photo Electric Coil Positioning Eyes

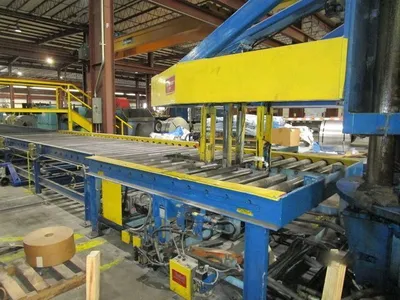

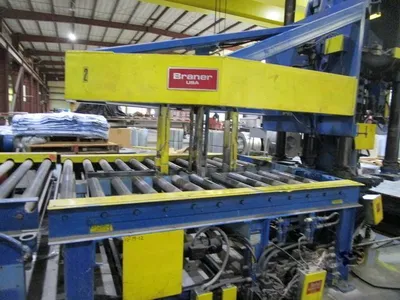

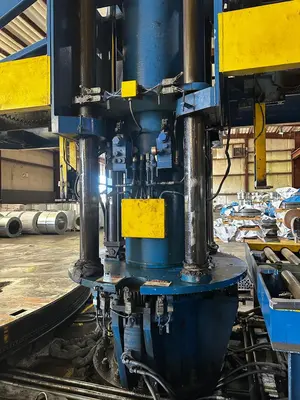

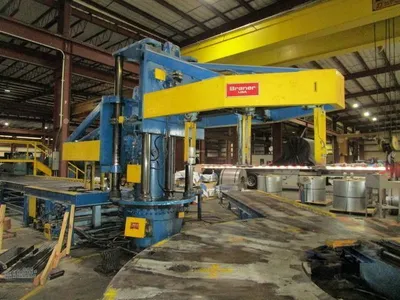

10,000# Braner Turret Coil Stacker
ID / OD Coil Grabs
Coil Positioning Table

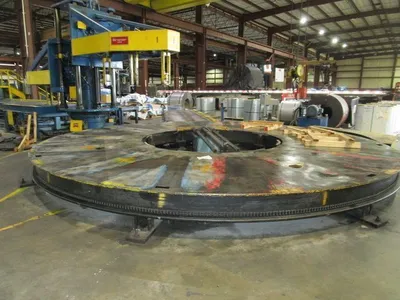

12 Position Coil Turntable
Safety System New in 2017
Upgraded in 2025

Services

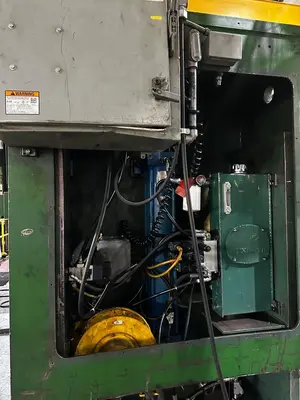

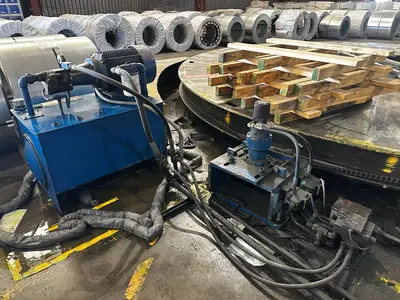

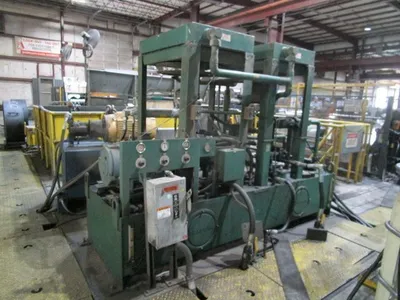

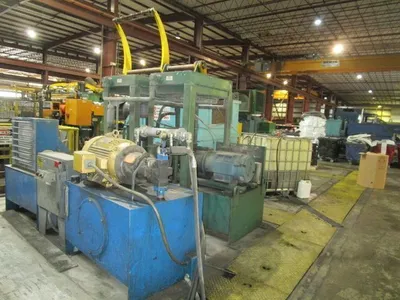

Central Hydraulic Unit

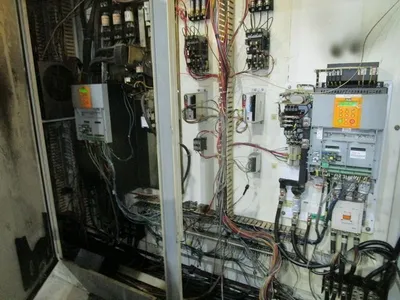

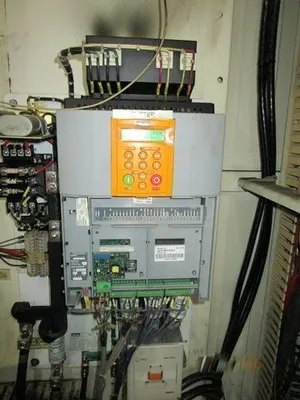

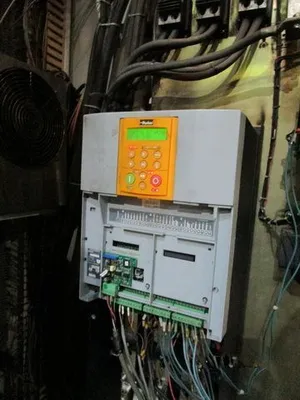

Parker Digital DC Drives New in 2016

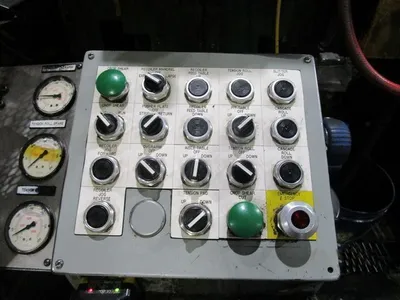

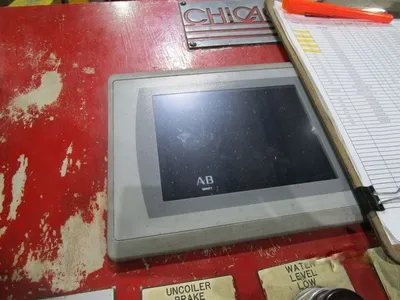

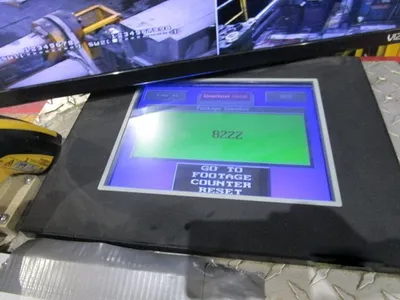

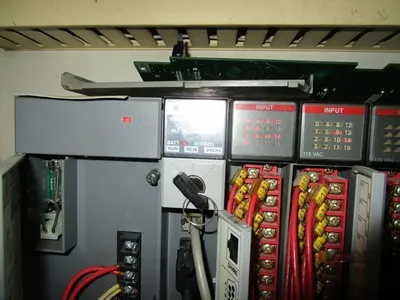

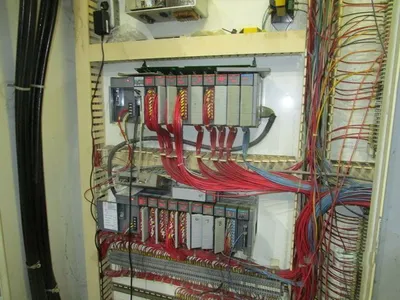

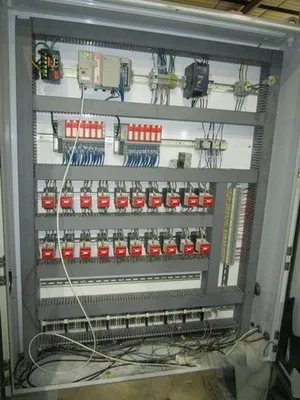

Allen Bradley PLC Controller

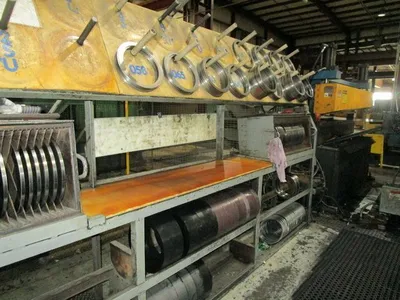

Shimless Tooling

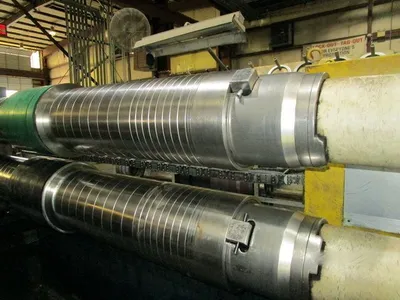

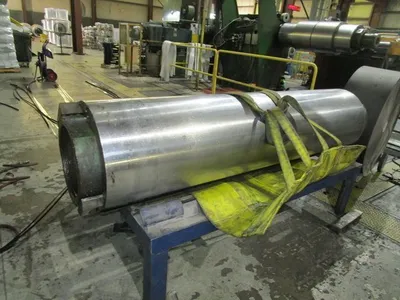

Spare Tooling Shafts
Central Hydraulic Unit (New Pump & New Motor)

Sold "as is, where is" EXW on foundation.
Complete Line Can Be Inspected Under Power and Operating.
