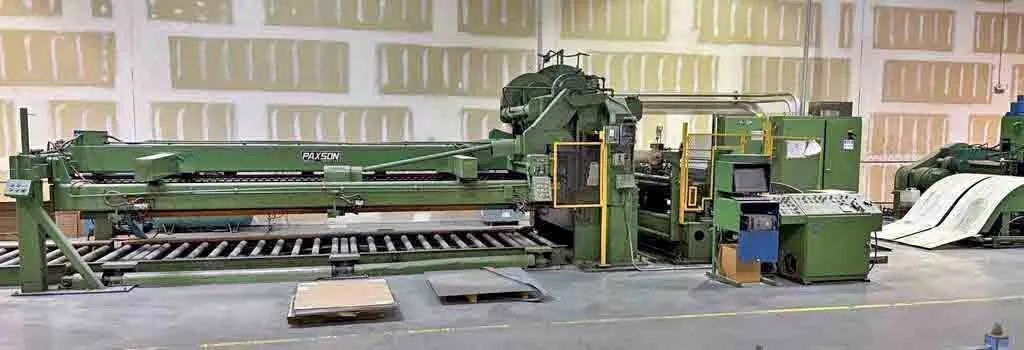

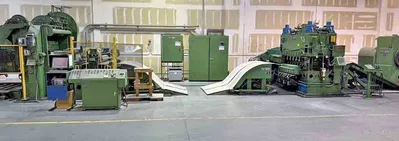

Used Paxson 60" x 0.135" x 40,000lb Paxson Cut To Length Line: CTL-872

Description

Manufacture:
-Paxson
- New 1976 with continuous operation and upgrades

Strip Width
- 60" max

Strip Thickness:
- 0.020" - 0.135"

Coil Size
- I.D. = 20" - 24"
- Weight = 40,000 lbs.

Line Direction:
- Right to Left

Equipment:
-Entry Coil Car:
Above Floor Type
Hand Pendant Control
Self-Contained Hydraulic Power Unit

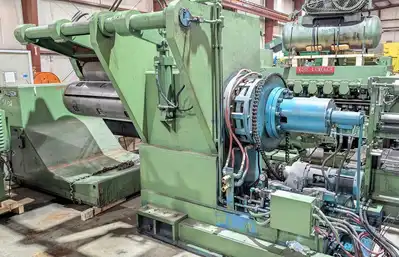

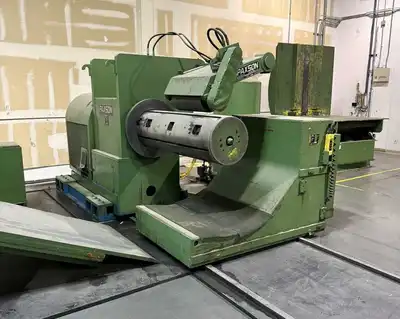

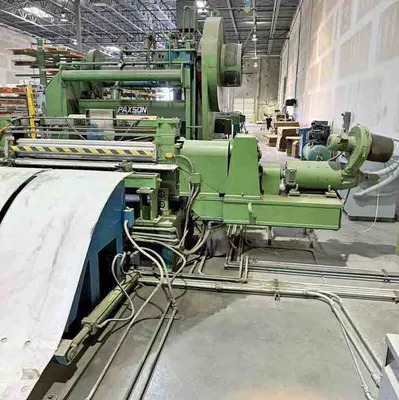

-Uncoiler:
Mandrel Type
Hydraulic Expansion
Powered Overarm Holddown
Slide Base
Water Cooled Brake
Hydraulic Motor Feedup

-Peeler Table:
Hydraulic Lift & Extend

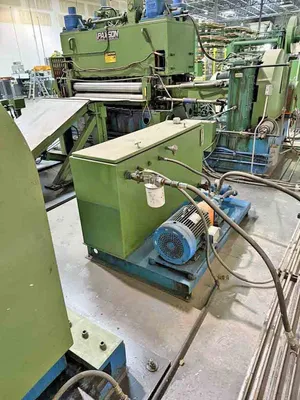

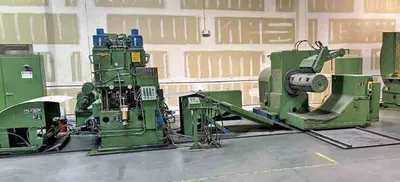

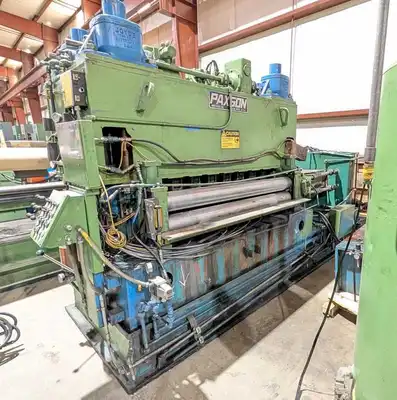

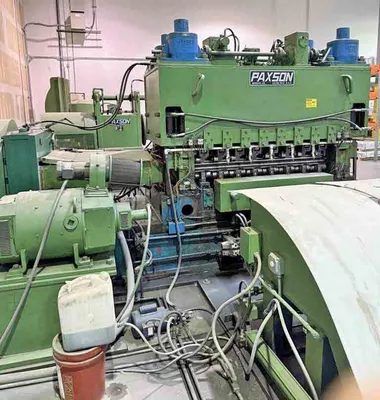

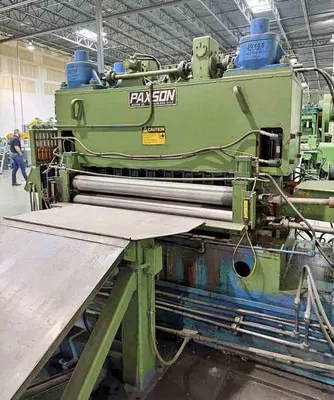

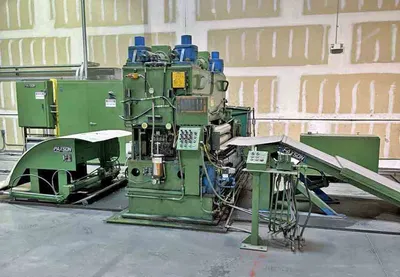

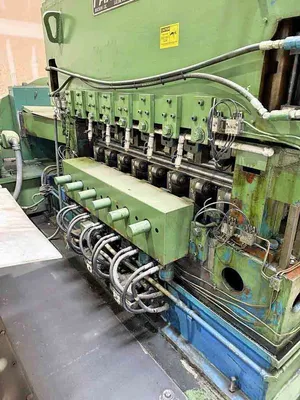

-Paxson Precision Leveler: 6 HI
S/N: 11558-36-8-76

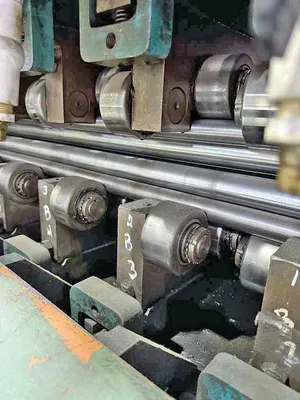

1.750" Diameter x 74" Face Rolls
Entry Pinch Rolls, Powered
8 Flights of Backups, (6 Flights Motorized)
125 HP WER DC Motor, 1750/2000 RPM, 500 V

-Cascade - Loop Table:

-Roll Feed:
Entry Side Guides
Full Width Rolls
Exit Paper Applicator
30 HP Emerson DC Motor

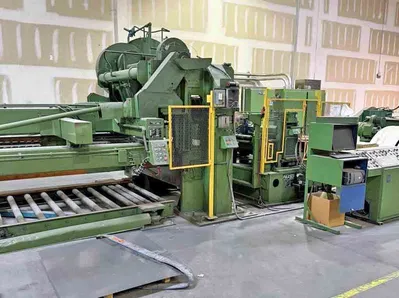

-High Speed Shear:
Over Driven, Mechanical
Manual Blade Gap Adjust
30 HP WER DC Drive Motor, 1750 RPM, 500 V
Air Clutch/Brake

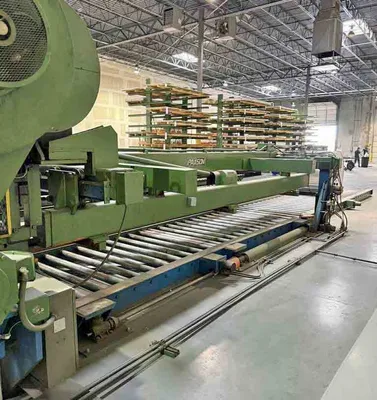

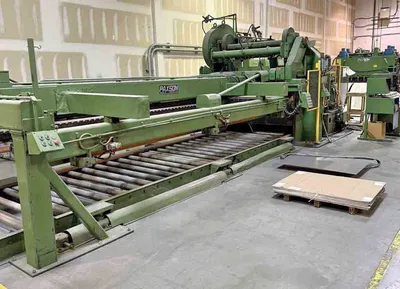

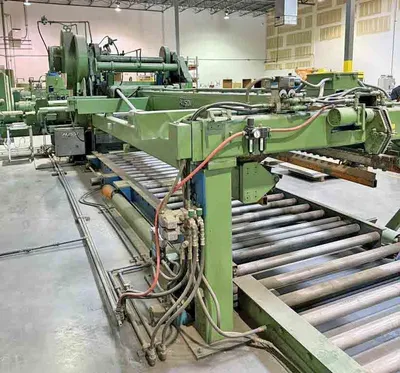

-Automatic Stacker:
Flipper Arm Type
Powered Width Adjustment
Powered Length Adjustment
Non Scratching Roller Supports
20' Maximum Length
Mechanical Screw Jack Lift Table
Powered In-Line Eject Conveyor

-Exit Runout Conveyor:
Powered Rolls

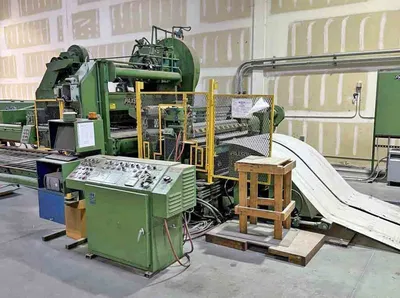

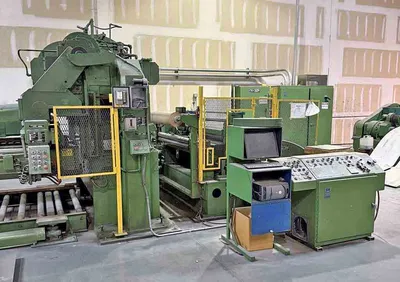

-Main Operators Control Panel:

-Water Cooler:

-Main Hydraulic Power Unit:

-Electrical Controls and Drives:

Sold "as is, where is" FCA loaded on your trucks, USA
