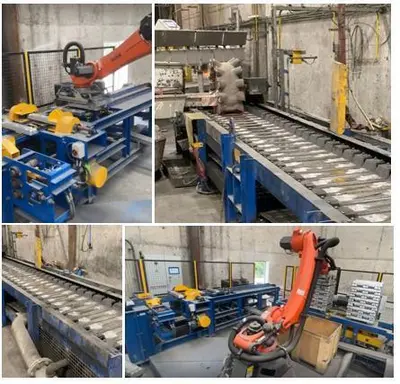

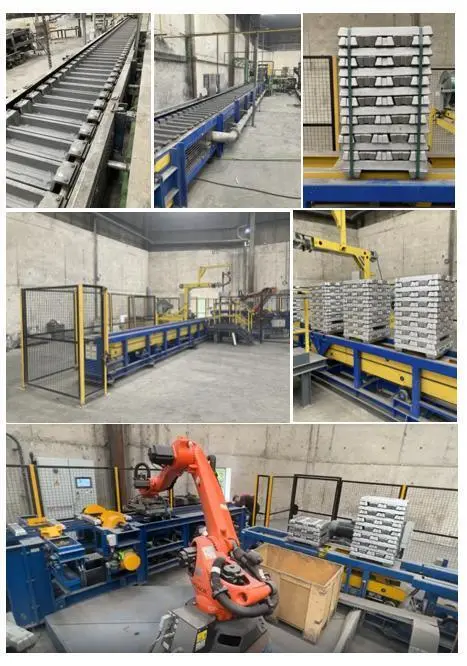

2022 Refurbished ALTEK Aluminum Ingot Caster with Robotic Stacking: MC-486

Description

Manufacture
- Altek Europe
- New 2022
- One owner who ran the line for 2 years

Condition
- Excellent
- Fully refurbished - 12 MONTH WARRANTY
- Complete set of NEW molds included

Ingot Size
- 8kg (17.64 lbs)

Casting Rate
- 6 mtons/hr (13,228 lbs/hr)

Stacked Bundles
- Approx. 500 kg (1,102 lbs)

Equipment
CASTING CONVEYOR
- One ingot casting machine fitted with 230 new ingot molds each with a nominal 8kg capacity
- Star wheel casting
- Gas pre-heat burners
- Cooling water quench tank
- Hammer knock-out
- All electrical controls to operate and control the machine with pipe work and electrical cabling

ARRANGING CONVEYOR WITH COOLING QUENCH
- Take off mechanism (transfers ingots to the onward ingot conveyor)
- Ingot conveyor fitted with stainless-steel chains
- Conveyor incorporates a stainless-steel water quench tank, ingot handling mechanisms, and ingot presentation table
- Laser controlled ingot reject system (sampling each ingot to ensure close size tolerance)
- Alignment mechanism
- Roll over mechanism
- Ingot presentation lift tables

ONE ROBOTIC STACKING MODULE
- One industrial robot with gripper assembly
- One hydraulic – 10 station walking beam
- Fully integrated HMI and PLC with operator stations for the supplied equipment

TECHNICAL SPECIFICATION
- Layout drawing reference = available upon request
- Ingot weight = 8 kg
- Number of ingots on casting machine = 230
- Maximum casting rate = 6,000 kg/h
- Power of main ingot conveyor drive = 4.0 kW
- Power of secondary quench conveyor drive = 1.0 kW
- Hydraulic pump motor for walking beam = 5.0 kW
- Maximum lifting capacity of robot = 250 kg
- Type of water cooling = Indirect
- Voltage = 380/420 V 3 ph 50Hz

ADDITIONAL OPTIONS
Ancillary equipment and services can be provided as additional options (including cooling towers, installation labour, engineering support, semi-automatic banding machines, and bundle weigh stations).

SPARES AND SERVICE SUPPORT
Full aftersales support can be provided such as spare parts, on-site supervision of installation, mechanical and electrical installation, and on-going maintenance support.

Drawings and Videos upon request.

Sold FCA with 12 month warranty.
