OBERBURG Type B.C.D. Aluminum Can Trimmer for Large Aluminum Cans and Bottles: IEX-218

Description

Manufacture:
- Oberburg Engineering Corp. (Switzerland)
- Model: Type B.C.D.

Automated Functions:
- Trimming (x24 system)
- Thread Rolling
- Beading

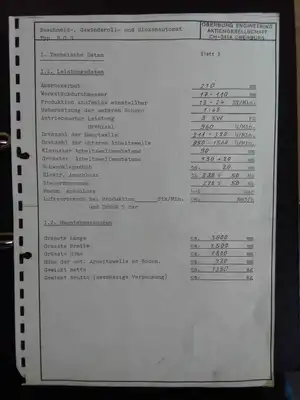

Performance Data:
- Ram stroke: 210 mm
- Workpiece diameter: 17 – 110 mm
- Production rate (continuously adjustable): 13 – 24 pieces/min
- Gear ratio of lower shear: 1:65
- Drive motor: 3 kW / 960 rpm
- Main shaft speed: 214-390 rpm
- Lower working shaft speed: 850-1560 rpm
- Minimum working shaft spacing: 90 mm
- Maximum working shaft spacing: 130 + 20 mm
- Swivel bearing stroke: approx. 20 mm
- Electrical connection: 3x 380V 50Hz / 220V 50Hz
- Compressed air connection: 4-6 bar
- Air consumption during production at 5 bar: ____ m³/h per piece/min

Dimensions:
- Maximum length: approx. 3800 mm (150" or 12ft5in)
- Maximum width: approx. 1500 mm (59" or 4ft11in)
- Maximum height: approx. 1800 mm (71" or 5ft11in)
- Height of lower working shaft from floor: approx. 920 mm (36.2in)
- Net weight: approx. 1350 kg (2976 lbs)

Sold "as is, where is" FCA loaded on your truck or in your container. Europe.
