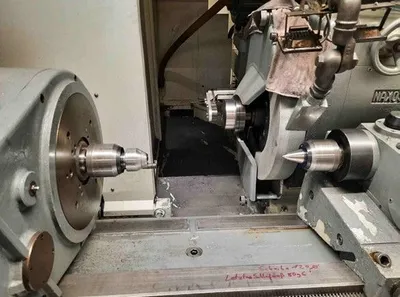

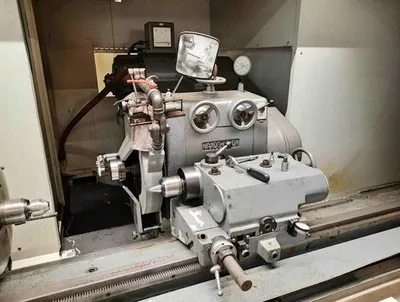

2017 Naxos Roll Grinder - Model W500 - 20" x 98": RG-113

Description

Manufacture
- Naxos-Union
- Model - W500

Status:

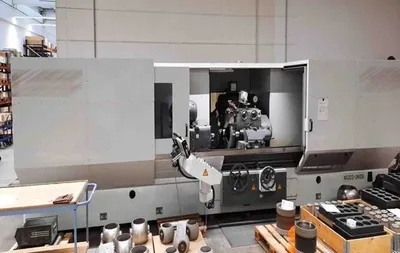

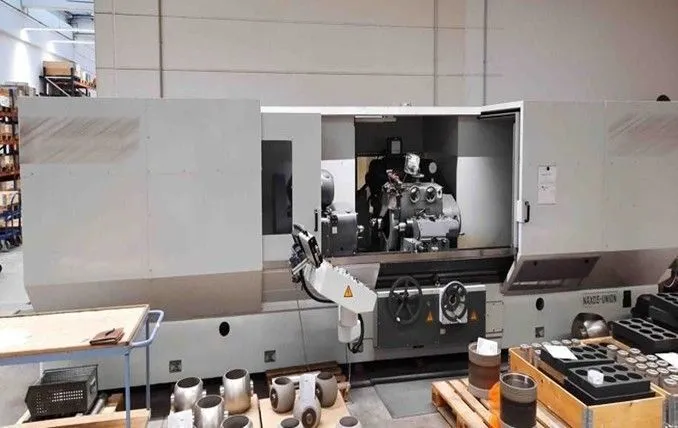

- On foundation, under power, in operation

Specifications
- Max. distance between points: 2500 mm (98")
- Center height: 250 mm (10")
- Grinding wheel diameter: 600 mm (23.6')
- Total grinding support travel: 320 mm (12.6")
- Max. workpiece weight: 1500 kg (3307 lbs)
- Grinding spindle infinitely adjustable: 900-1600 rpm
- Speed ​​of workpiece spindle: 50-450 rpm
- Workpiece spindle holder: Morse 5
- Motor power: 2.2 kW

Accessories:

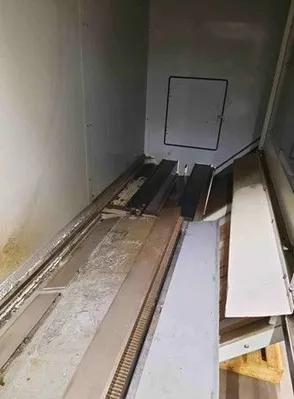

- 1 x machine enclosure, including front sliding door with door switch

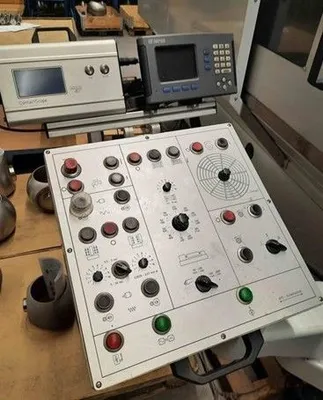

- 2 units measuring X and Y axes, including a Z300 digital display
- 1 new belt filter system with a 100 l/min. pump, including controls
- 1 electromechanical balancing system from MPM, balancing head mounted on the spindle, sensor on the grinding spindle bearing

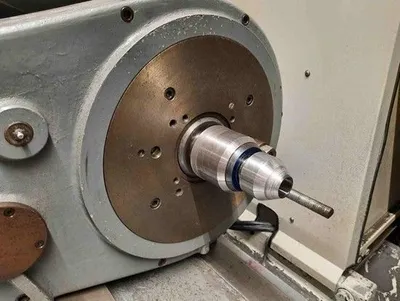

- 1 live center from RÖHM, MK 5 Rotating center punch manufacturer RÖHM MK 5
- 6 grinding wheel flanges
- 7 "lynettes"
- 14 support feet

Dimensions (approximate):
- 7800mm L x 3300mm W x 1750mm H x 13mtons
- 25' 7" L x 10' 10" W x 5' 9" H x 28,600lbs

Sold "as is, where is" EXW or FCA (loaded on your truck)
Seller is only transmitting the specifications from the Owner. Seller takes no responsibility for errors.
