PRO ECO 60" x 0.135" x 20,000lb Cut-to-Length Line: CTL-154

Description

Manufacture:
- Pro Eco / new 19??

Strip Width:
- 60" max

Strip Thickness
- 0.135" max

Coil Size:
- ID =
- OD = 60"
- Weight = 20,000 lbs max

Hand of Line = Left to Right

Equipment:

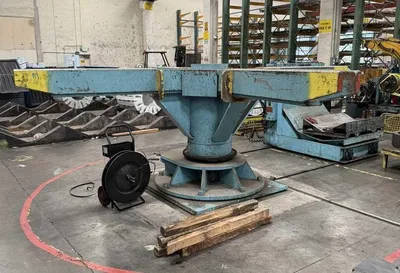

1. Entry Turnstile
- 3 Arm Turnstile
- C-Hook Type Arms
- Powered Rotation

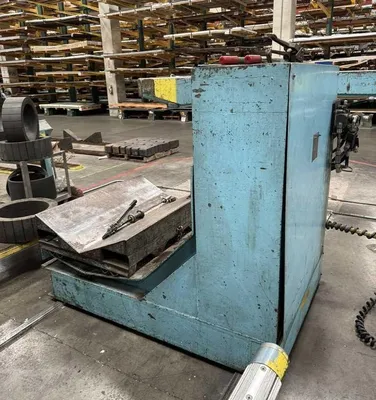

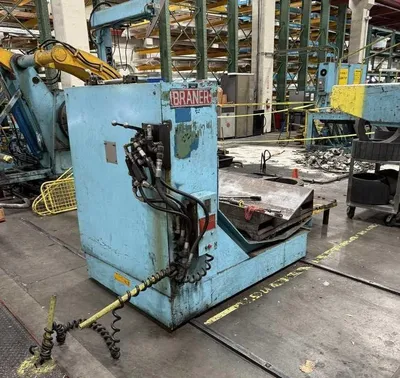

2. Entry Coil Car
- Braner
- Above Floor Type
- Self-Contained Hydraulics

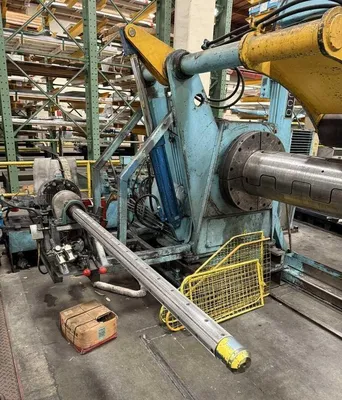

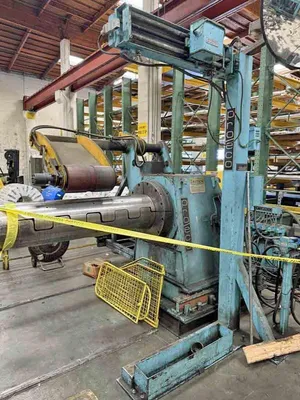

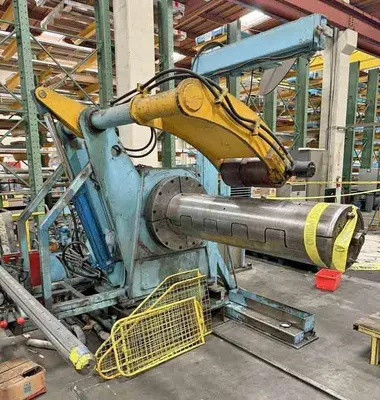

3. Uncoiler
- Model: UNC-20-60 / Hydraulic Expansion / Pumpkin Tooth Drum / Wichita Water Cooled Brake
Sliding Base / Powered Holddown Roll / 60" O.D. Capacity

4. Paper Winder:

5. LEVELER NOT INCLUDED

6. Automatic Edge Control
- Model: EG-FIFE-20-60

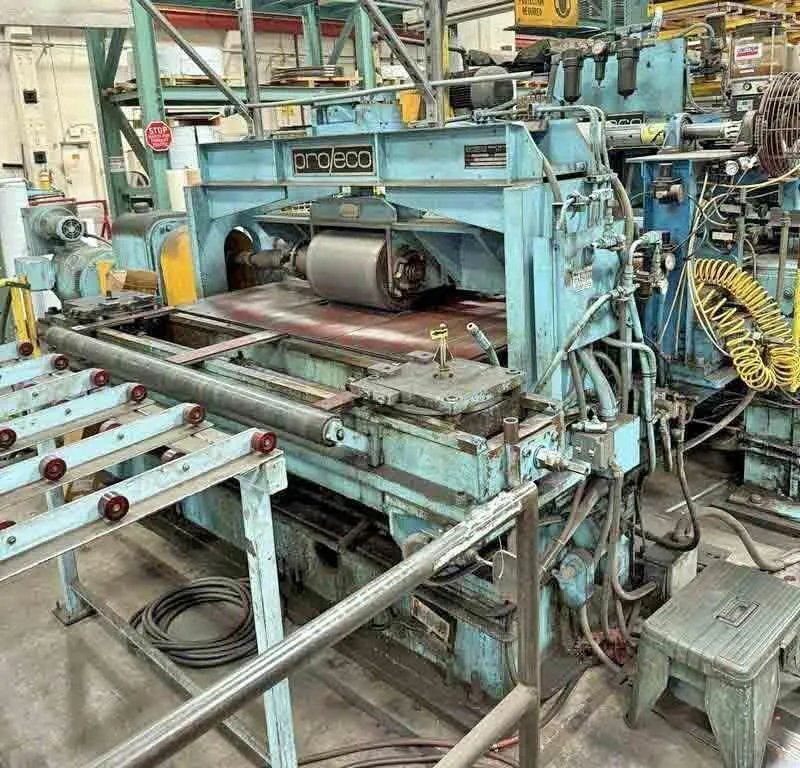

7. Roll Feed Unit
- Model: PFR-12-16-60 / Entry Passline Roll / Entry Side Guides / Film Applicator / Exit Side Guides
Exit Passline Roll

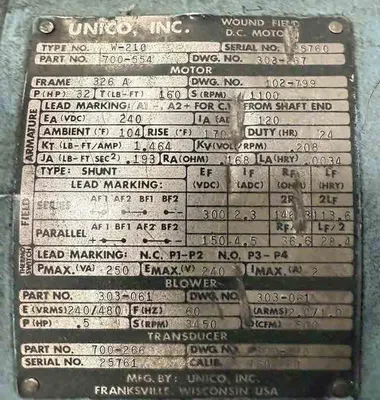

- Drive: by Unico / 32 hp, 1100 rpm, 240 V

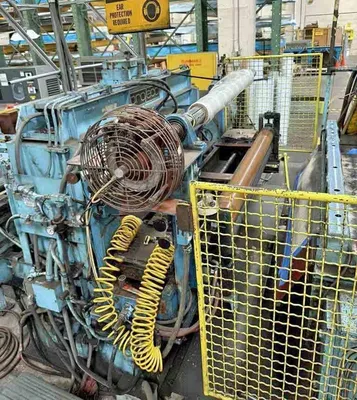

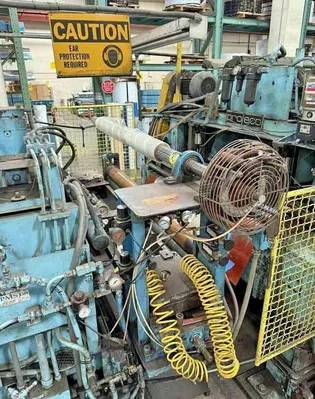

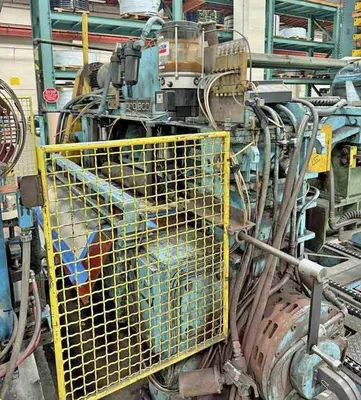

8. High Speed Shear
- Entry Pinch Roll
- AC Drive Motor
- Air Clutch and Brake

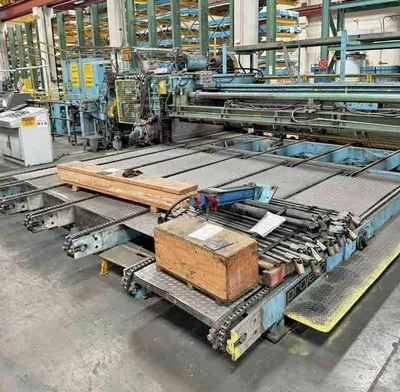

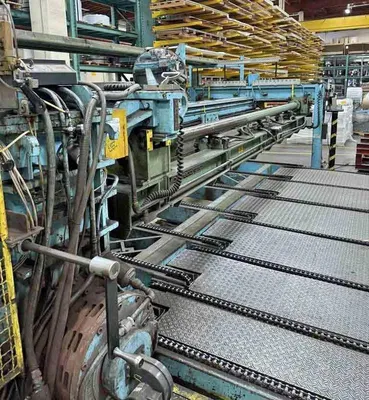

9. Automatic Stacker
- 10,000 lb Stack Capacity
- Powered Width Adjustment / Powered Length Adjustment

10. Side Discharge Chain Conveyor

Sold "as is, where is" installed. WILL BE DISMANTLED AND MOVED TO A WAREHOUSE SEPTEMBER 2025.
