NEW Sow Molds, Dross Pans, and Slag Bins: MC-482

Description

Manufacture:
- ALTEK (UK)
- NEW

2000lb / 900kg Low-Profile Sow Molds
- Item Code: 106178
- Description: 2000-SM-LP-02
- Material specification: "RHINO-CAST" Steel Alloy (ASTM A27 Grad 65-35 cast steel)
- Delivery terms: FCA Indiana
- Payment terms: 100% prior to collection
- Quantity: 10
Price: USD 6,090.00 each / 60,900.00 total

-----------------------------------------------------

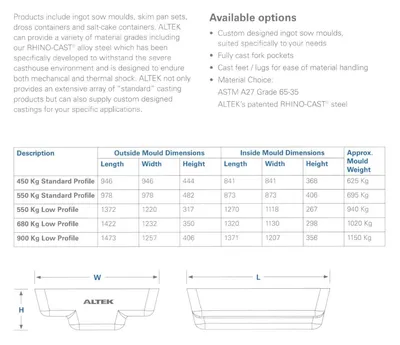

ALL MOLDS AND SIZES:

LOW-PROFILE SOW MOLDS:
1. 1500lb / 680kg:
- Empty weight = 1020kg / 2250lbs
- Outside dimensions = 1422mm L x 1232mm W x 350mm H
- Inside Dimensions = 1320mm L x 1130mm W x 298mm H

2. 2000lb / 900kg:
- Empty weight = 1150kg / 2535lbs
- Outside Dimensions = 1473mm L x 1257mm W x 406mm H
- Inside Dimensions = 1371mm L x 1207mm W x 356mm H

3. 1200lb / 550kg
- Empty weight = 940kg / 2075lbs
- Outside dimensions = 1372mm L x 1220 mm W x 317mm H
- Inside Dimensions = 1270mm L x 1118mm W x 267mm H

STANDARD PROFILE SOW MOLDS:
1. 1000lb / 450kg
- Empty weight = 625kg / 1380lbs
- Outside dimensions = 946mm L x 946mm W x 444mm H
- Inside Dimensions = 841mm L x 841mm W x 368mm H

2. 1200lb / 550kg
- Empty weight = 695kg / 1535lbs
- Outside dimensions = 978mm L x 978mm W x 482mm H
- Inside Dimensions = 873mm L x 873mm W x 406mm H

Sold FCA Midwest USA, under warranty.
We can provide quotations including freight.
