2005 Polyurethane Sandwich Panel Line and Roll Forming Line: RF-209

Description

Manufacture
- ILKWANG (Korea) - plus - Siempelkamp pump (Germany)
- New = 2005
- Decommissioned = October 2023

Production Capacity
- 3,000m2 per 8 hour shift (32,292 square feet per shift)

Panel Size
- Thickness = 50mm min / 125mm max (1.97 - 4.92")
- Width =

Equipment

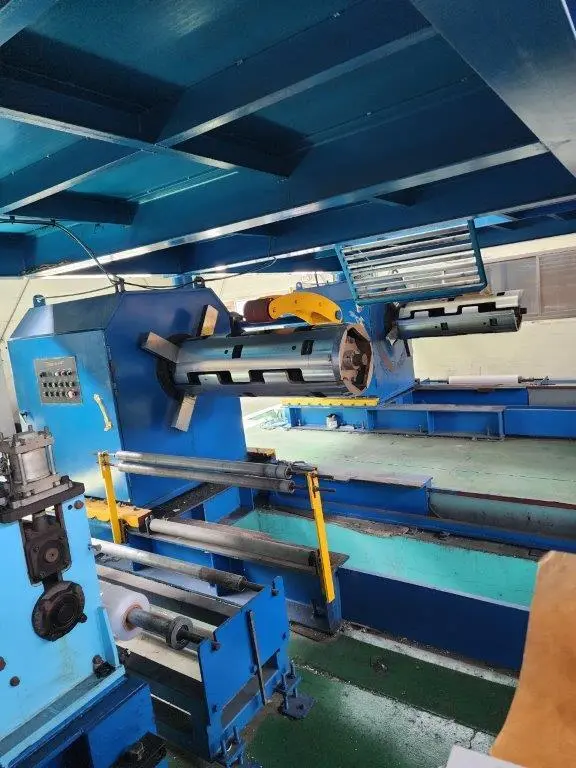

Uncoiler:
- Mandrel width = 1,270mm (50.0")
- Max Weight = 7.0 mtons (15,428lbs)

Panel:
- 50mm minimum thickness (1.97")
- Wall Panels = 150mm maximum thickness (5.90")
- Roof Panels = 125mm maximum thickness (4.92") - But if you increase the pump capacity at a cost of about $5,000, you can produce 150mm roof panels.
Total around 26 CNTR

Foam Application Head:
- Nozzles, sweeping left-right

Foam / Insulation:
- PIR (polyisocyanurate)
- PUR (polyurethane)
- MDI (Methylene Diphenyl Diisocyanate)
- Pentane is possible with the addition of a separate tank.

Double Belt
- 20-25 meters
- Electric belt preheat

Included:
- PLC - Siemens Simatic
- Chemical tanks (and systems)
- Iso-Pentane or Other blowing agent = BASF
- Saw and length control
- Dust extraction
- Curing is done by a warm temperature blower at 20-23 degrees C
- Panel Stacker
- Panel rotator
- Film applicators

Videos
- https://youtu.be/PojXgUx6B3Y
- https://youtu.be/j3gA30S-0vE

Sold "as is, where is" FCA dismantled and loaded on special cargo trucks. Asia.
PHOTOS = PLEASE ASK FOR OUR PDF WITH 75 PAGES OF PHOTOS OF THE LINE.
