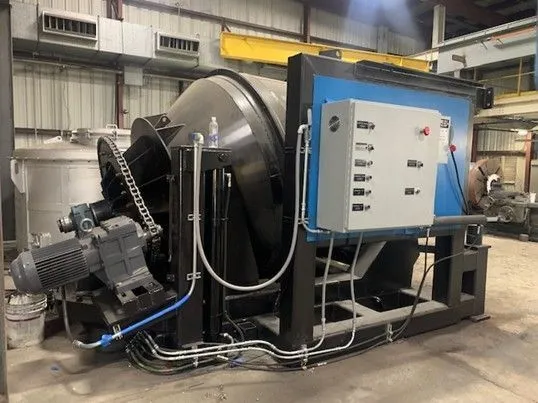

2024 Mansell & Assoc. 50 cu.ft. Tilting Rotary Melting Furnace: MC-476

Description

Manufacture:
- Mansell & Associates (USA)
- NEW Dec 2024, never used

Molten Metal Holding Capacity:
Aluminum = 7,000 lbs (50 cubic feet x 140lbs per cubic foot for aluminum)
Lead = 35,000 lbs.

Condition
- Brand new. Sitting at factory ready to ship except for fitting the refractory and burner.
- Furnace will be pre-assembled and tested prior to shipping.
- Built of very heavy duty materials, easy to operate, require little maintenance.
- Design capacity = continuous metal processing, 7 days a week

Equipment
1.a. Furnace Barrel:
- 50 cubic foot capacity
- Cone shaped
- Mounted on Tilt Frame with 3 Suspension Points: 1 x Tail Shaft Bearing + 2 x Carrier Rolls with Riding Ring on Cone

1.b. Refractory:
- Lined with 6” thick castable
- Cured at 1500 degrees F during assembly test
- 3000 degrees F compatible (for molten lead contact)
- Anchored in with S/S V-Anchors welded to drum
- 1/4” insulating material between refractory and steel shell

2. Door:
- 48” door opening
- Burner mounted in door, flue exit installed
- Hydraulic power unit opens/closes door

3. Motor Drive:
- 15hp heavy-duty Gear Box/Motor
- Provides rotation of Barrel thru chain/sprocket
- Speed Drive from 1 to 6 RPMS
- 480V / 3 phase / 60Hz

4. Hydraulic Drive:
- 7.5 hp Hydraulic Power unit (480V / 3 phase / 60Hz)
- Furnishes Fluid to Two (2) Cylinders to Raise and Lower (tilt) Barrel to pour off Molten Metal and Slag into Crucible or Molds provided by Customer
- Also, Opens/Closes furnace door

5. Burner:
- 3 million BTU/hr
- Natural Gas or Propane fired

6. Control Panel:
- Pre-wired and tested. Operates all functions of Rotary Furnace.

7. Smoke/Fume Collection:
- Custom fume hood included
- Fabricated from 3/16” 304 Stainless Steel plate
- Duct work from hood to baghouse by customer

8. Weight:
- Approximate total system weight = 44,000 lbs.

Sold FCA (loaded on your truck) Alabama USA with One (1) Year Warranty.
Six (6) week delivery (from PO and deposit)
Spare barrel and 25,000 CFM baghouse are additional options
Full quote available upon request.

Size:
- Weight: 35,000 lbs (approximate)(including refractory)
- Dimensions: 9ft wide x 8ft high x 15ft long (estimated)
- Shipped: on single drop trailer
- Plus hood sections or other equipment
