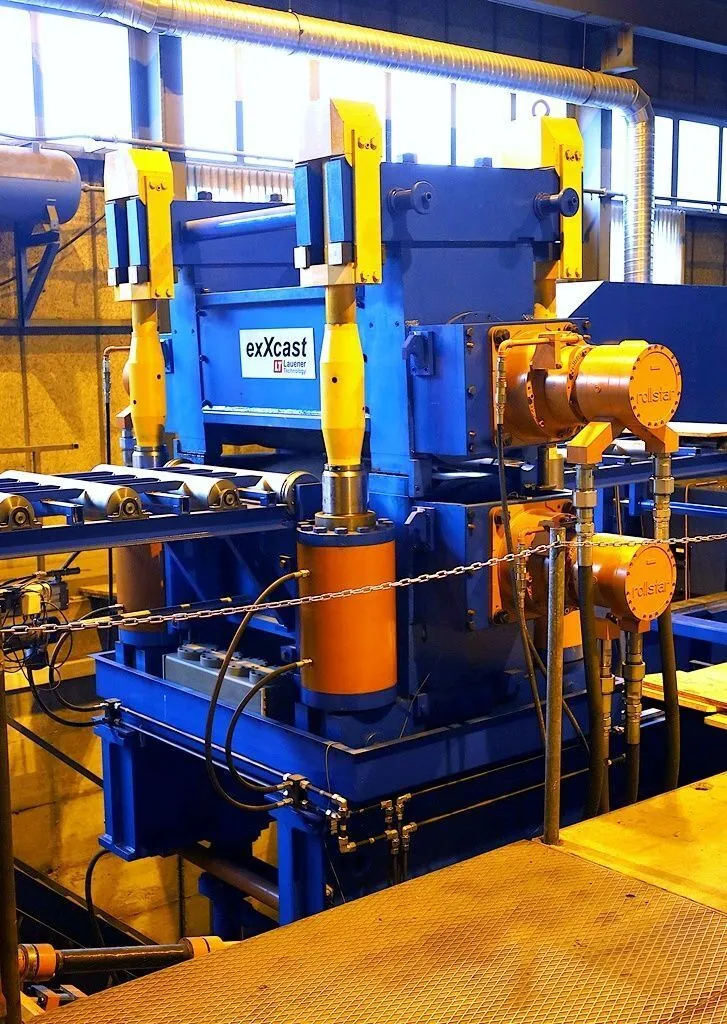

NEW Lauener Technology Hydraulic Aluminum Roughing Mill

Description

Manufacture
- Lauener Technology - Switzerland
- This mill was built new in 2010 to test Lauener's new version of a Block Caster
- It has VERY few hours of operation
- Condition = excellent

Roll Size
- Diameter: 685mm / 27"
- Roll Face: 1000mm / 39.4"

Drive
- 4 hydraulic motors by ROLLSTAR (Switzerland)
- Model - M201
- Torque = (@ 145 bar), 4 x 1.64 kNm = Total 6.56 kNm
- Various pumps included

Rolling force
- 4 hydraulic cylinders
- 210 bar hydraulic pump included
- Rolling force = (@ 210 bar) 4 x 1.25 MN = Total 5.00 MN
- Higher rolling forces can be achieved with correspondingly higher oil pressure up to 300 bar
- However, the pump included in delivery is limited to 210 bar

Controls
- Includes control items such as frequency converters, etc.

Overview
- Mill design includes intelligent features for easy maintenance.
- The open structure allows for quick roll changes.

- The price is EXW.
- Disassembly is NOT included
- Customer can dismantle (for necessary knowledge for reassembly)

Sold "as is, where is" EXW on foundation, Switzerland.
- Dismantling and freight for the Buyer's account.
- Plant will allow Buyer to dismantle with it's own people (which is necessary for reassembly knowledge). Or, Buyer can hire a Dismantling Contractor.
