Mesta Hot Mill - Completely Rebuilt by Danieli 2010 - 64" Strip Width: RM-461

Description

FOR SALE: Mesta Hot Mill - Completely Rebuilt by Danieli 2010 - 64" Strip Width: RM-461

Manufacture:
- Mesta / new 1960's
- Danieli - complete rebuild 2010
- Danieli - site review 2018 (see comments below)

Comments from Danieli Survey Report in 2018:
"The Plate Mill equipment inspection verified that all of the major equipment is on site and in general good condition. The equipment can be installed with very little reconditioning required. In general, thorough cleaning and some rust to be removed". Full report available upon request.

Materials:
- Titanium (grades Ti-6AL-4V)
- Aluminum
- Zirconium
- Austenitic Materials

Line Direction
- Right to Left

Equipment

1. SLAB HEATING FURNACE ROLLER HEARTH:
90 Ft Length
Insulation Brick and Fiber
Walking Beam Conveyor
64 Gas Fired Burners, Direct Fire

2. REHEAT FURNACE:
30 Ft Length
Insulation Brick and Fiber
Roller Conveyor
22 Gas Fired Burners, Direct Fire

3. SLAB:
- Size (Maximum): 64" x 64" x 6" x 4000lbs / 1625mm x 1625 mm x 152mm x 1815kg
- Incoming Hot Material Temp: 1500F to 1000F depending on material

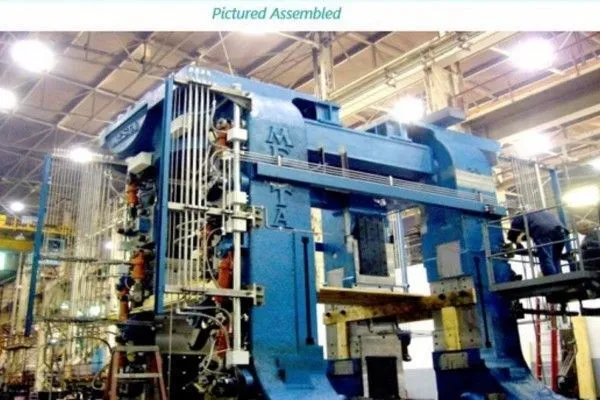

4. MESTA 4 HI, REVERSING, HOT PLATE ROLLING MILL
Infeed Material Thickness: 4" to 6" (101mm - 152mm)
Maximum Material Width: 64" (1625) mm
Final Plate Thickness: 3/16" to 1-1/4" (4.8mm to 31.8mm)
Maximum Finished Width: 64" (1625mm)
HAGC Force Hydraulic Screw Cylinders
Bearings: 4 Row Taper Roller Bearing

Work Roll Driven
Mill Motor Drive: (2) 2500 HP DC Volt (1 Spare 2500 HP Motor Armature)
Mill Speed: 5 to 200 FPM (1.5M/min to 60M/min
Work Roll Dimensions (Dia x Face): 25" x 67" (635mm x 1700 mm)
Work Roll Useable Diameter: 23" (584mm)
Dimensions of Backup Roll (Dia x Face): 47" x 66" (1193mm x 1663mm)
Backup Roll Useable Diameter: 45" (1143mm)
Weight of Back up Roll: 30 ton (Approximate)

Mill Entry and Exit Side Guides, Edge Roller Housings
New WR & BUR Bearings (8) each

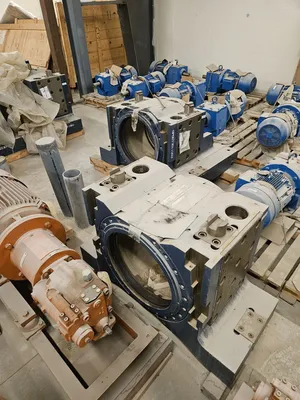

(6) New WR Chocks
(8) New BUR Chocks

Roll Bending, Mae West Unit
Bottom Work Roll Lifting System
Top Backup Roll Balancing System
Roll Change System, Hydraulic
Hydraulic, Air, Oil and Grease Systems and Reservoirs
Motor/Pump (2) 200 Hp; (3) 75 Hp; (12) 25 Hp
Five Bottle, Two Bottle and Small Accumulator Unit
Valve Stands
Heat Exchanger Units (2)

5. ROLLER CONVEYOR
Mill Entry and Exit Roller Type Conveyor (Design)
Conveyor Rolls: 72" face x 8-1/2" Diameter
Capacity: 756# / Roll
Pass Line: 32"
OA Length of Mill Roller Conveyor: 150 ft
Speed: 5 to 200 Lineal FPM, AC Variable Frequency Control
Turn Table
Exit Cooling Table: Walking Beam Table
Automated Lube System

6. MARLEY COOLING TOWER
7. TRANSFORMERS (3), 34.500 kV
8. SWITCHGEAR
9. CONTROLS
- Allen Bradley PLC Control
- All motors were located and believed to be available.

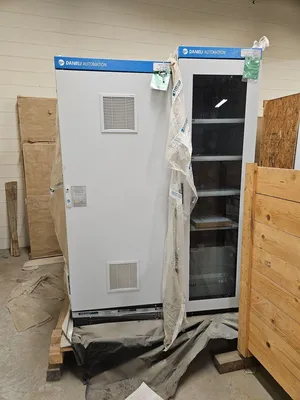

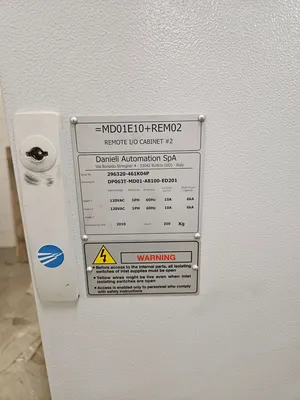

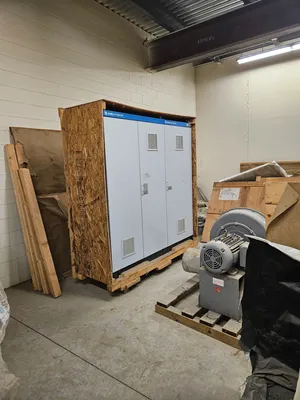

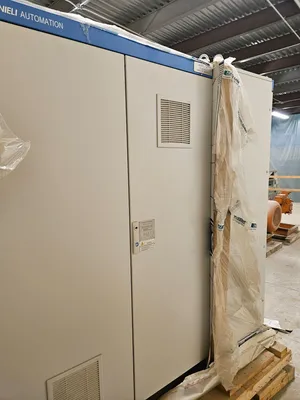

10. ELECTRICAL
Electrical and Automation Equipment: Rockwell and Danieli. Confirmed and believed to be in good condition with just few items missing. Some upgrades are recommended by Danieli.
11. DRAWINGS
Design, General Arrangement, Layout, Foundation and other drawings are available.

Sold "as is, where is" off foundation. USA
