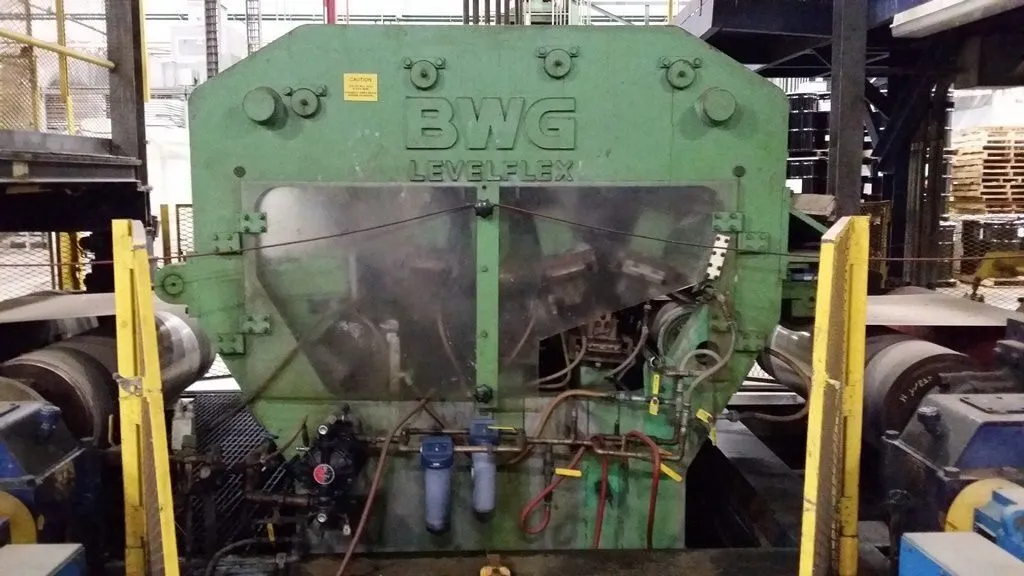

1975 60" BWG Tension Leveling Section: TLL-209

Description

Manufacture:
- BWG
- 1975 new / 1984 upgrades

Material:
- Aluminum
- Comes out of an Aluminum Coil Coating Line (our reference CC-157)

SPECIFICATIONS OF THE LINE IT CAME FROM:
Strip Width:
- 60" max / 1524 mm

Strip Thickness:
- .008 - .020" / 0.20 - 0.51mm

Coil Size of the line is comes from:
- Entry: ID = 20" (508 mm) / Weight = 50,000 lbs (27.2 mtons)
- Exit: - ID = 16" (406 mm) / OD = 70" max (1778 mm) / Weight = 48,000 lbs (21.8 mtons)

Line Speed:
- Rated: 275 fpm / 84 mpm
- Actual ran: 300 fpm / 91.4 mpm

TENSION LEVELER:
1. 2-Roll Entry Bridle (Line bridle #3):
- Roll 1 - 25 hp, 1750/2500 rpm, 34.13:1 gear ratio
- Roll 2 - 50 hp, 1750/2500 rpm, 33.23:1 ratio

2. BWG Flex-Roll Section:
- 5 roll cassettes
- Work rolls: 1.125" & 1.75" diam
- Back up Rolls: 2.25" diam

3. 2-Roll Exit Bridle (Line bridle #4):
- Roll 3 - 150 hp, 1750/2500 rpm, 34.5:1 gear ratio
- Roll 4 - 75 hp, 1750/2500 rpm, 33.02:1 gear ratio

Sold "as is, where is" EXW on foundation. USA
