1500mm x 0.4-2.0mm Cut-to-Length Line: CTL-153

Description

FOR SALE: 1500mm x 0.4-2.0mm Cut-to-Length Line

Manufacture:
- Manufacturer - Vigano
- Year of Mfr - 1995
- New Controls and Electrics - 2022

Strip Width:
- Min - 400mm (270mm)
- Max - 1500mm

Strip Thickness
- Min - 0.4mm
- Max - 2.0mm
- At 1250mm strip width = 2.0mm max
- At 1500mm strip width = 1.5mm max

Coil Weight:
- ID = 430-620mm
- 20 mtons max

Cut Lengths
- Min - 400mm (280mm)
- Max - 3000mm

Tolerance = +/- 0.5mm

Production Capacity = 50 tons/day

Equipment:
ENTRY GROUP

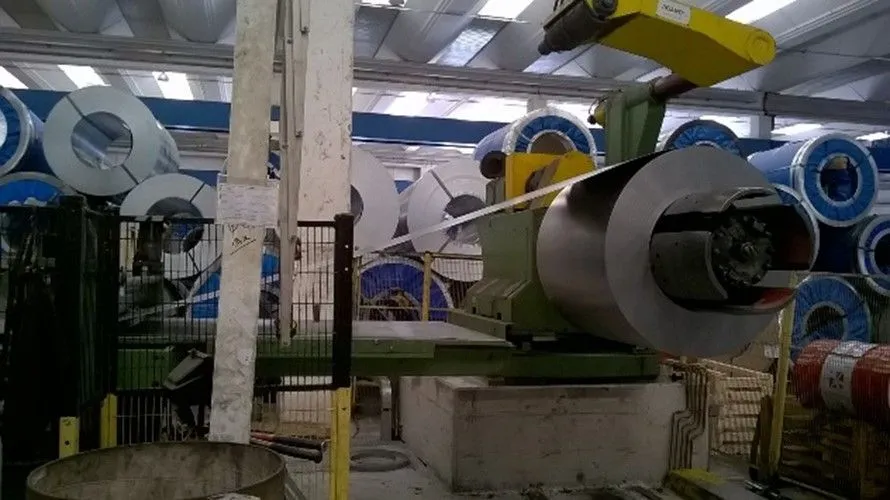

- Uncoiler - Cantilever unwinder
- Pinch-roll
- Introduction table

LEVELER
- 6-Hi
- Entry idler roll unit
- Exit pinch roll

FEEDER AND SHEAR
- Flying shear type
- Centering device and feeder allow for minimum tolerances
- Measuring wheel
- Encoder

RUNOUT TABLE and STACKER
- 4000mm tables
- Equipped with fins for stacking material without wood stock
- 3 x 4000mm discharge chains (controlled from both the main pulpit and strapping station). Table 2 has a "soft drop" feature. Table 3 has a weighbridge.

ELECTRICAL
- Total electrical and control revamped in 2022
- GEfran ADV200

SAFETY
- 2022 = complete line received new safety barrier fencing

Sold "as is, where is" EXW under power in production.
