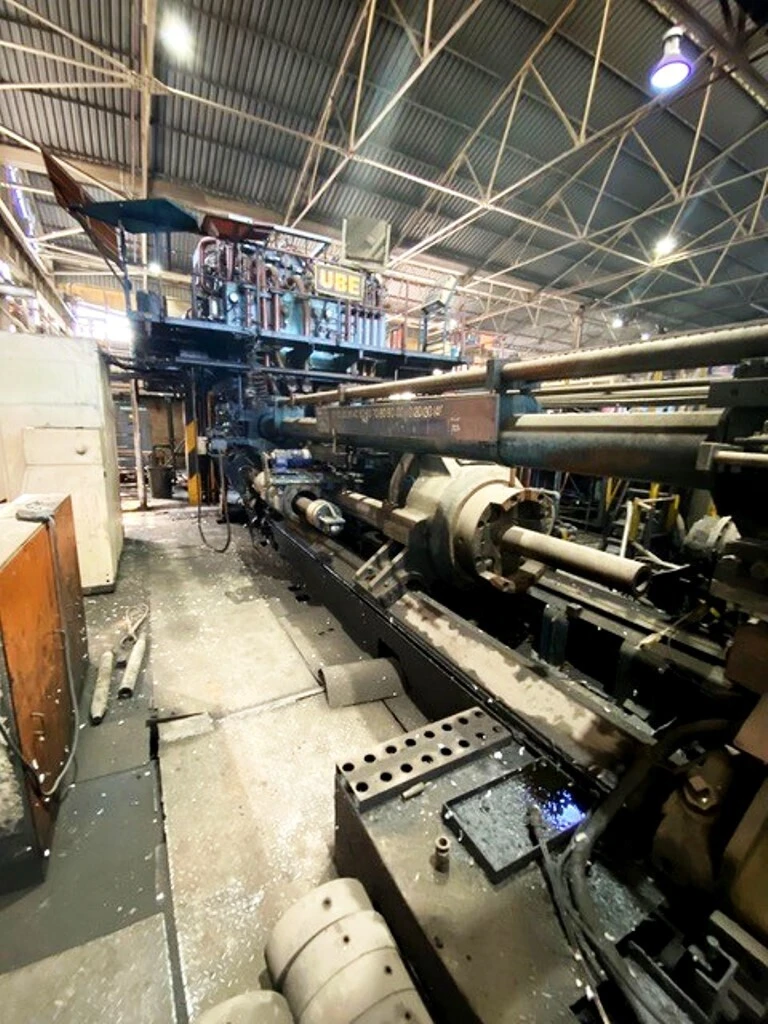

1800mton UBE Brass/Copper Piercing Extrusion Line for Billet and Tube: EX-522

Description

FOR SALE !!! 1800mton UBE Brass/Copper Piercing Extrusion Line for Billet and Tube FOR SALE !!!

Manufacture:
- UBE
- Last major upgrade = 2010

Billet Size
- Diameter = 130-230mm (5.12" - 9.05")
- Length = 660mm max (26")

Equipment
Billet Heater
- Banyard Ltd. induction type

Press
- Design = Direct Extrusion WITH PIERCER, horizontal, 4-column, oil hydraulic
- Production rate = 4,861 kg/hr
- Hydraulic oil = 12,000 litre capacity
- Container heating = 33kW, 380v
- Cooling water requirement 480 l/min
- Stroke = 1700mm main ram / 400mm container / 800mm mandrel
- Speed = Extrusion 48 mm/sec, Closing 370 mm/sec, Return 400 mm/sec, Container sealing 300 mm/sec, Container opening 285 mm/sec, Piercing 220 mm/sec, Mandrel return 220 mm/sec

Capacity
Extrusion (normal) - 210 kg/mm2 - 1,788 tons
Closing - 210 kg/mm2 - 183 tons
Return - 210 kg/mm2 - 89 tons
Container sealing - 210 kg/mm2 - 136 tons
Container opening - 210 kg/mm2 - 183 tons
Piercing - 210 kg/mm2 - 304 tons
Mandrel return - 210 kg/mm2 - 202 tons

Pumps
3 x Variable delivery axial plunger pump - 210 kg/mm2 450 l/min 1,000 rpm
2 x Constant delivery axial plunger pump - 210 kg/mm2 450 l/min 1,000 rpm
3 x Feed pump - 15 kg/mm2 545 l/min 3,000 rpm
1 x Constant deliver pump - 210 kg/mm2 14 l/min 1,000 rpm
1 x Constant deliver pump - 70 kg/mm2 88 +148 l/min 1,000 rpm
1 x gear pump - 5 kg/mm2 435 l/min 1,500 rpm
1 x Vane pump - 70 kg/mm2 88 +148 l/min 1,000 rpm
1 x Vane pump - 140 kg/mm2 115 l/min 1,000 rpm

Motors
5 x 150 kW, 1,000 rpm
2 x 37 kW, 1,000 rpm
3 x 19 kW, 3,000 rpm
2 x 7.5 kW, 1,500 rpm

Handling System
- Runout table, stretcher, saw etc
- Motors include 5x 150kw; 2x 37kw; 3x 19kw; 2x 7.5kw
MORE DETAIL COMING

Spares
- 2 x Hydraulic pumps V30 D140 variable axial with proportional control
- 1 x Hydraulic pump A2F 125 L 6735
- 1 x Hydraulic pump A2F 125 R 6735
- 1 x Q310 furnace coil liner 172mm O.D
- 1 x Ceramic furnace coil 172mm O.D
- 2 sets x Main ram seals 830 x 872 x 110 x 21mm
- 1 x Container cylinder (piston & nut)

Condition
- Installed
- Excellent condition
- Well equipped

Electrics
- 380v / 3 ph / 50 Hz

Sold "as is, where is" EXW on foundation.
