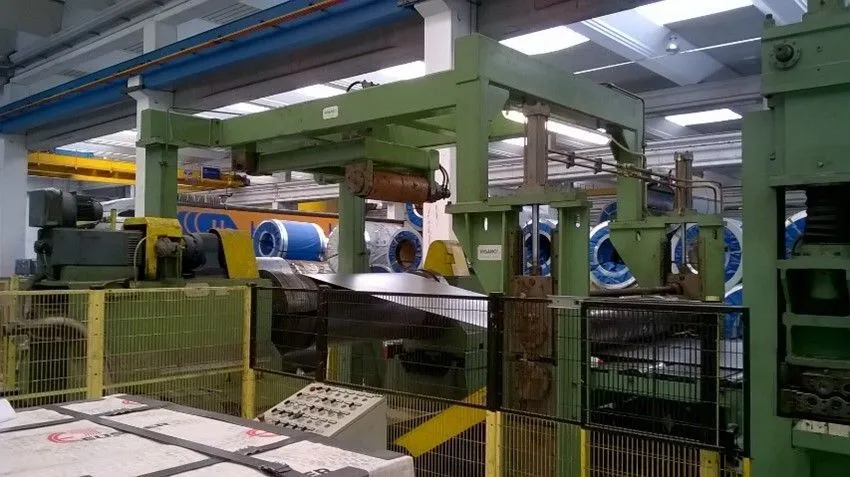

2000mm x 6.0mm Aluminum Cut-to-Length Line: CTL-151

Description

FOR SALE: 2000mm x 6.0mm Aluminum Cut-to-Length Line / complete / under power / in production!

Manufacture:
- Leveler = Vigano (Italy)
- Shear = Riva (Italy)
- New = 2001

Material
- Mild steel

Strip Width:
- Min = 500mm (19.7")
- Max = 2000mm max (78.7") for lighter gauges
- 1500mm up to S275JR at 6.0mm thickness

Strip Thickness:
- 1.5 – 6.0 mm (.060 - .236")

Cut Lengths:
- Min = 580mm (23")
- Max = 6000mm (236" / 19'8")
- Tolerance = +/- 1mm

Stack Height
- 400mm max (15.75")

Coil Size
- ID = 508 - 700 mm (20.0 - 27.5")
- OD = 650mm (25.6") min - 2000 mm (78.7") max
- Weight = 30 mtons (66,000 lbs) max

Typical Production Capacity:
- 80 mtons daily, on average (176,350 lbs/day)

Equipment:
ENTRY GROUP
- Uncoiler 1
- Uncoiler 2 (for coils up to 30 tons, expandable from 500 to 700 mm)
- Pinch roll
- Introduction table

LEVELER
Work Rolls
- 52mm (2.05") diameter work rolls = 15 included / 2200 mm face / surface hardness: 58-60 HRC
- 80mm (3.15") diameter work rolls = 15 included / 2200mm face / surface hardness: 62-64 HRC

Backup Rolls (7+7)
- 130mm (5.12") diameter backup rolls = 133 included / surface hardness: 56-58 HRC
- 72mm (2.83") diameter containment backup rolls = 28 included / surface hardness: 56-58 HRC

- 6-Hi
- Upper and lower cylinder packs
- IR rings = 45 included
- Complete needle roller cages (NA6909) = 60 included
- Thrust bearings complete with fifth wheels = 30 included (30 sealing rings)(15 MIM)
- Spacers to be made at the time of assembly = 15 included
- End-pins for intermediate cylinders complete with needle roller bearings and thrust bearings = 34 included
- Keys/retaining rings and bolts

SHEAR
- Flying shear type
- Measuring wheel
- Encoder
- Shear carriage

RUN-OUT TABLE AND STACKER
- 6m long
- No packaging Equipment

DC Motors and Controls - very good condition

Sold "as is, where is" EXW on foundation, under power, in production.
To be decommissioned December 2024.
