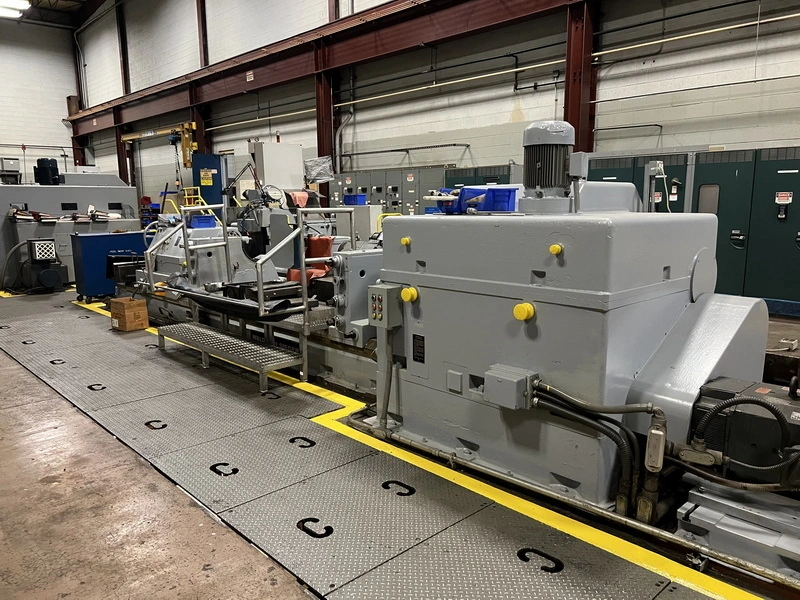

Waldrich Siegen 50" x 196" Roll Grinder: RG-111

Description

Manufacture
- Waldrich Siegen
- Model: V/S II b 35 x 5000

Roll Size
- Max Roll Diameter = 1260mm (50")
- Min Roll Diameter = 140mm (5.5")
- Max Roll Length = 5000mm (196")
- Max Roll Weight = 35 US tons (70,000 Lbs)

Distance Between Centers
- 5000mm (196.85")(16.4 ft)

Max Grinding Wheel Diameter
- 800mm (31.5")

Specs and Features
- Crowning = installed
- Cambering = installed
- Stationary Rotating Roll with Travelling Grinding Carriage
- Two (2) Steadies
- Servo Drives on Headstock and Grinding Wheel
- Face Plate RPM = 7 - 70 RPM
- Grinding Carriage Feed = 60 - 4000 mm/min
- Cross Slide Traverse Infeed = 560mm
- Rapid Traverse Cross Slide = 400mm/min
- Fine In-Feed Hand Wheel = 0.0125mm/1 Umdr
- Coarse In-Feed Hand Wheel = 0.25mm/1 Umdr
- End Feed by Motor = 0.01 - 0.10 mm/Hub

Grinding Wheel:
- Max Diameter = 800mm (31.5")
- Width = 80mm (3.15")
- Hole = 305mm (12")

Motors
- Headstock = 60hp, 240/960/2400 rpm
- Grinding Wheel = 40hp, 720/1800 rpm
- Carriage Drive = 5hp, 24/1600 rpm

Rapid Traverse Cross Slide
- Grinding Spindle Lubrication
- Bedway Lubrication
- Quill Rapid Traverse - Tailstock

2008 Electrical Upgrade
- Computer Controlled
- Allen Bradley Powerflex Digital Drives
- Allen Bradley 1606-XL Power Supply
- N-Tron 508 XT Ethernet Card
- Allen Bradley Panelview Plus 1250 Digital Readouts
- Allen Bradley PLC CompactLogix L32E

Sold "as is, where is" EXW on foundation, USA
Condition = excellent used condition
Estimated dismantling cost = $60,000
