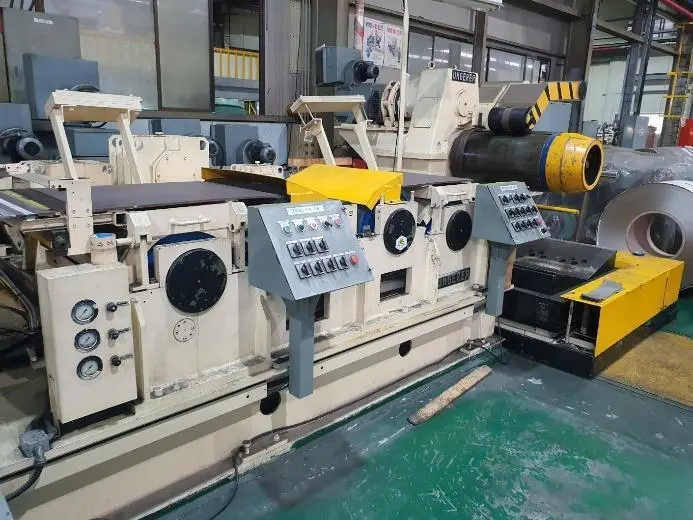

1984 Ungerer 550mm Tension Leveling Line: TLL-207

Description

Manufacture
- Ungerer
- New: 1984
- Refurbished and reinstalled in 2013 with all new electrics and general mechanical refurbishing

Materials
- Stainless Steel / Copper / Copper Alloy / Mild Steel

Strip Width
- 130mm min design specification (5.12")
- 635mm max design specification (25.0")
- 550 mm max typical width (21.65")

Strip Thickness
- 0.8mm max (.031")
- 0.08mm min (.0031")
- Typical material run by current plant = 0.1 - 0.6mm (.004 - .0236")

Line speed
- 150 mpm max (492 fpm)
- 120 mpm average product speed (393 fpm)

Coil Size
- Entry ID - 508 mm diameter (20")
- Exit ID - 508 mm diameter (20")
- Exit OD - 1320 mm diameter (52")
- Coil weight - 5,500 kg max (5.5mtons)(12,125 lbs)

Equipment
Uncoiler
- 15 kW DC

Entry 4-Roll Tension Bridle
- Roll 1 = 14kW / Roll 2 = 7kW / Roll 3 = 56kW / Roll 4 = 28kW
- 1490 rpm

Ungerer Leveler
- Work Rolls: 23 rolls - 20.32mm diameter x 760mm face width
- Intermediate Roll: 15.24mm diameter
- Backup Rolls: 20.32mm diameter x 27mm W x 11 rolls x 2 strand x 14 block
- Motor - Reliance DC motor, Parker DC drive pack
- Max Tensile strength - 920 N/mm2 max
- 0.2% Proof Stress - 830 N/mm2
- Elongation - 2% min
- Cross-section = 508mm2 Max

Motor powers:
- Uncoiler = DC 15kw
- Entry Tension Bridles = #1 DC32kw / #2 DC16kw / #3 DC130kw / #4 DC65kw - 1490 RPM
- Exit Tension Bridles = #1 DC14kw / #2 DC7kw / #3 DC56kw / #4 DC28kw - 1490 RPM
- Recoiler = DC 20 kw

Gauge Control
- Installed at exit tension bridle rolls
- Vollmer "Point Contact" type

Exit 4-Roll Tension Bridle
- Roll 1 = 32kW / Roll 2 = 16kW / Roll 3 = 130kW / Roll 4 = 65kW
- 1490 rpm

Recoiler
- 20 kW DC

Details
- Line direction - Left to Right
- Line Footprint = 13,000mm L x 6,000mm W (42.6ft x 19.7ft)
- Electric power source = AC440volts x 3Phase x 60Hz
- Spare parts = available (the list is presented as one of the photos)

Sold "as is, where is" EXW on foundation, not under power, Asia.
