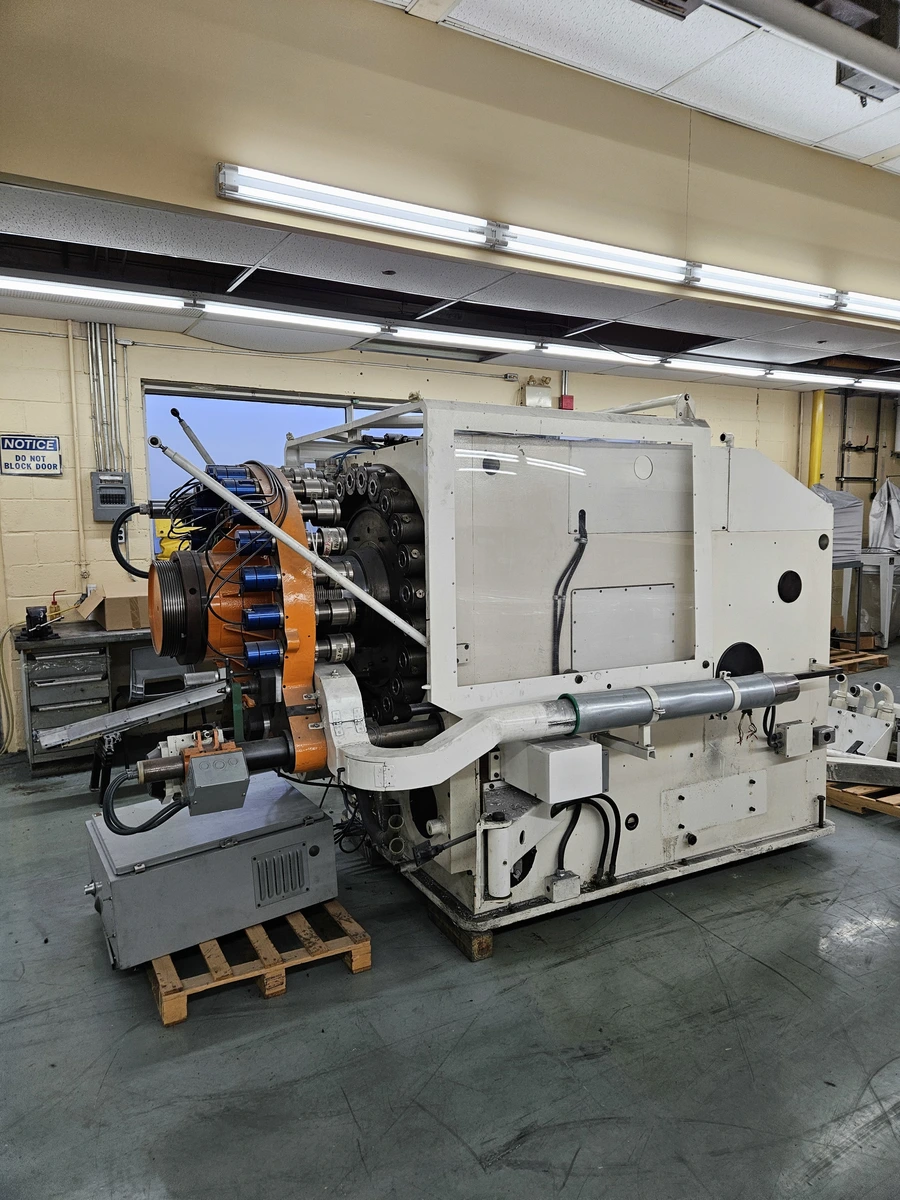

Guzzi/Frattini C-24-150 Impact Extrusion Necker: IEX-211

Description

Manufacturer:
- Frattini (Guzzi)
- Model C-24-150
- New = 1990? / nameplate was missing when rebuilt

Necking Stations:
- 24

Tooling:
- 35mm diameter
- 45mm diameter
- Forty (40) tool holders included

Stroke:
- 65mm

Speed
- Up to 150 cans per minute

Electrics/Motors
- 380V /3ph / 50Hz
- Electrical panel not included
- Electrical engineering work is done (so you can get local quotes)
- Motors = by Cemer, mechanical drive, motors included and in very good shape

Upgrades and History:
- Complete rebuild and certification by a prominent impact extrusion equipment manufacturer
- Ran 750,000 cans after certification
- Necker was running very smoothly without vibration and unusual noises before the rebuild
- Two (2) vacuum suction devices (with Siemens drive) are included
- The filter suction device was not connected
- There are no scrap containers included
- Previous owner ran 135 cans/min

Rebuild details:
a. Necker was taken apart completely
b. All bearings, seals, and guides were replaced with new
c. The main shaft was overhauled including surface grinding and new chrome plating
d. No measurement device is available
e. Drive and control unit replaced with new LS, iS7
f. Switch cabinet control unit also is a new iS7
g. Electrical parts on the main machine are new
h. Main drive = mechanical, motors by CEMER

Size: 10' L x 8" W x 7' H x 12,000lbs

Sold "as is, where is" FCA your truck.
