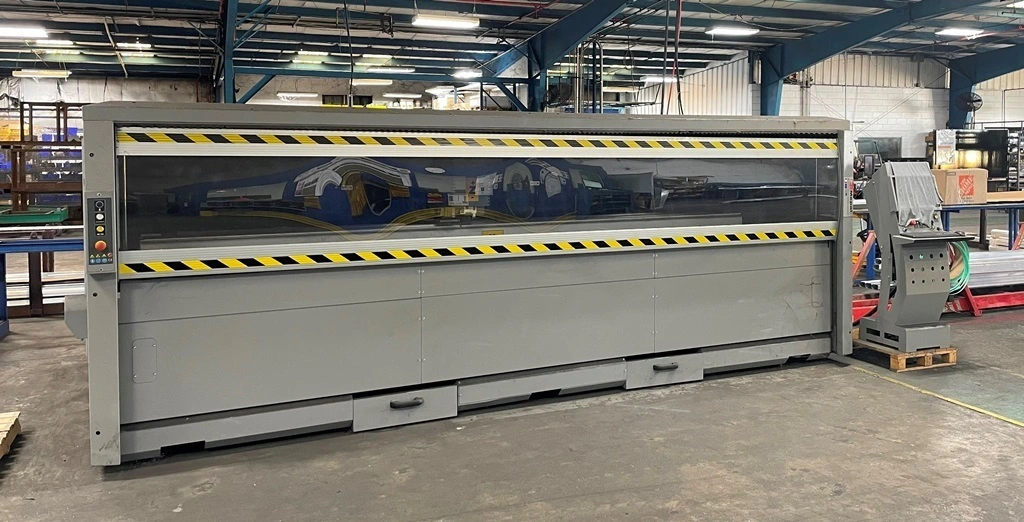

Mepal Atlantis C4 Plus CNC Machine: M-337

Description

FOR SALE - Excellent CNC Machine

Manufacture
- Mepal - new 07/2020
- Model - Atlantis C4 Plus
- Serial Number - 3000

Specifications:
Axes:
- X Axis Range: 4200 mm
- Y Axis Range: 570 mm
- Z Axis Range: 300 mm
- I Axis Range: 180°
Spindle: 4.5kW HSD Electro-Spindle
Spindle Taper: ISO 30
Spindle Speed: 2,800-18,000 RPM
Clamps: 6 Pneumatic
Tool Change: 11 Position
Control: Windows 10 Touch Operator Panel

Equipped With:
- Automatic Tool Changer: 10 position + 1
- Tool Height Measurement System
- HSD Electro-Spindle
- Quick Clamp for positioning
- Closing Door for Security
- LED Lighting
- Modern On Board Console

Sold "as is, where is" EXW under power and can be demonstrated during inspection.
Some rigging required.
