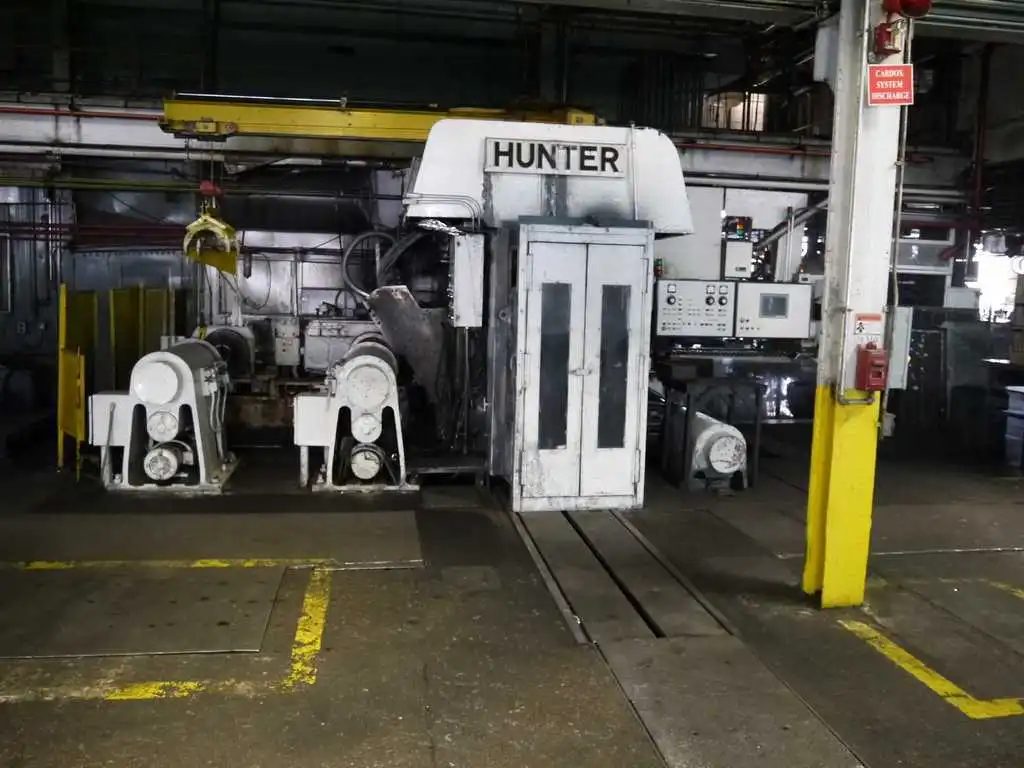

54" (1371mm) Hunter Doubling Aluminum Foil Mill: FM-111

Description

FOR SALE!!! 54" (1371mm) Hunter Doubling Aluminum Foil Mill: FM-111

Manufacture
- Hunter Engineering
- New - 1968
- New ABB system 2015

Status
- On foundation, not under power, still heated
- Decommissioned 2019

Strip Width
- Entry = 41.5 - 54.0" (1054-1371mm)
- Exit = 40.5 - 53.0" (1029-1346mm)
- Inside Mill Frame Width = 74" (1879mm) opening

Strip Thickness
- Max Entry = .0024" (0.061mm)
- Min Exit = .000245 matte (0.0062mm) / .0005" bright (0.013)

Line Speed
- High Gear = 3000 fpm (914 mpm)
- Low Gear = 1100 fpm (335 mpm)

Equipment

Uncoilers
- Payoff = 2 x 50hp - 300/1800 rpm - 2.11:1 and 7.49:1 gear ratios
- Doubling Payoff = 2 x 25hp - 300/1800 rpm - 2.111:1 gear ratio

Mill
- Type = 4-Hi oil hydraulic
- Work Rolls = 10" diam x 66" face (254 x 1676mm)
- Backup Rolls = 26" diam x 62" face (660 x 1575mm)
- Spool Sizes = 10" or 22" (SPOOLS NOT INCLUDED)
- Motor = 600 hp - 400/1200 rpm
- AGC = yes = Andritz ShapeTronic = ACT/ABB gauge type
- Drives = Allen Bradley = all new 2015 = this upgrade has it's own control cabin
- Mill Exhaust = 28,000 CFM
- Preload Cylinders = 18" diam
- Separating jack diam. = 2.75"
- Reversing jack diam. = 2.75"
- Preload Pressure = 3.9gpm flow, 1500 max PSI, 7.5hp motor
- Main Hydraulics =40gpm flow, 1000 max PSI, 30hp motor
- Mill Torque = 7875 foot-pounds base speed
- Coolant Spray = bar with 2" centers
- Filter = Schneider - model MOS-314-8-250 - dirty tank 1200 gal - clean tank 2100 gal - steam heaters
- Mill Pump = 200 gpm
- Filter Pump = 250 gpm x 25 hp

Work Rolls:
- 14 rolls total (7 sets)(Roll diameter range = 10.000" new, 9.200" scrap)
- 2 full sets of chocks/bearings
- Roll diameters =
1. Roll 132697 = 9.419"
2. Roll 132696 = 9.417"

3. Roll 92205 = 9.452"
4. Roll 92204 = 9.445"

5. Roll 92207 = 9.468"
6. Roll 70825 = 9.465"

7. Roll 84653 = 9.271"
8. Roll 84652 = 9.272"

9. Roll 126244 = 9.501"
10. Roll 126245= 9.503"

11. Roll 162233 = 9.514"
12. Roll 162119 = 9.513"

13. Roll 124243 = 9.291"
14. Roll 126242 = 9.289"

Backup Rolls
- 4 rolls total (2 sets)
- 2 full sets of chocks/bearings

Recoiler
- 2 x 50hp - 300/1800 rpm - 1.32:1 and 3.00:1 gear ratios
- 1 x cone type

Sold "as is, where is" on foundation USA
