Used 600mm x 0.2-4.0mm REFURBISHED Looping Pit Slitting Line: S-310

Description

For Sale - REFURBISHED LOOPING PIT SLITTING LINE - 600mm x 0.2-4.0mm

Manufacture
- LDM / New in 2006

Current Status
- Dismantled, completely refurbished, and lying in warehouse, Europe.

- Scope of refurbishment:
a) internal components checked, lubricated, and replaced if needed;
b) external cleaned, painted, repaired if needed;
c) checked movement and function of all components.

- History: Built in 2006. Only 1 owner who only ran one shift per day until 2016. Owner closes his plant in 2016. The line was well preserved plus now is refurbished.

Strip Width
- 150 - 600mm (5.9" - 23.6")
- Roll faces = 700mm (27.5")

Strip Thickness
- 0.2mm min to 4.0mm max (.008" - .157")

Hand of Line
- Left to Right

Tensile strength
- 1000 N/mm2 for thickness 0.2 - 2.0mm
- 650 N/mm2 for thickness 0.2 - 4.0mm

Coil Size
- ID = 508mm (20")
- OD = 1800mm (70.8")
- Weight = 8.0 mtons max (17,632lbs)

Slitting Heads
- 180mm arbor diameter (7")
- 320mm knife external diameter (12.6")
- 2 heads included - Automatic Change

Line Speeds
- Max. speed = 300 m/min (984 fpm)
- Feed up speed = 5-10 m/min (16-32 fpm)

Equipment:
- Coil ramp
- Entry Coil car

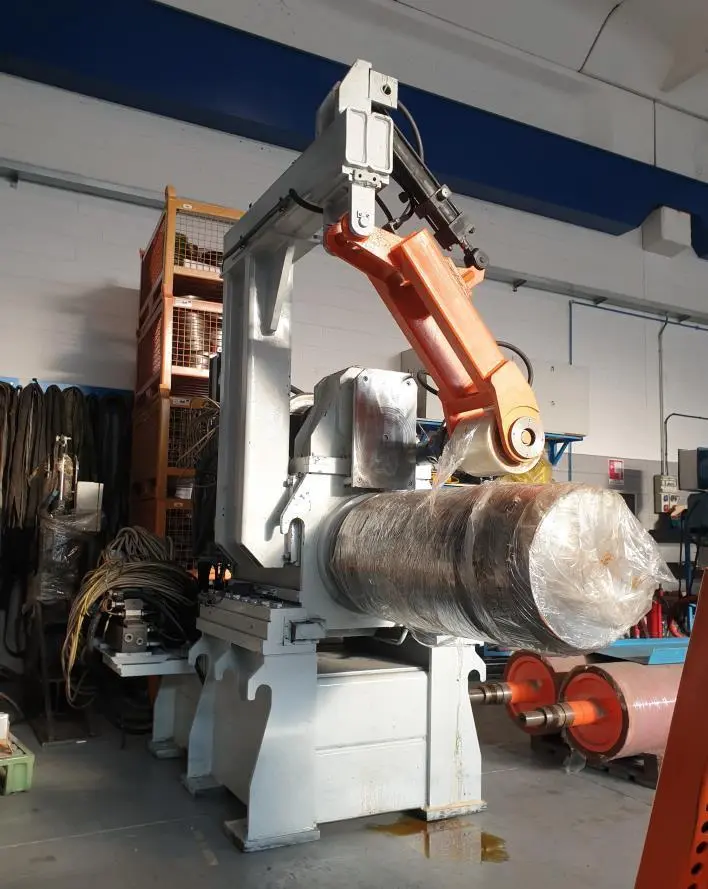

- Uncoiler
- Entry shear (guillotine type)
- Centering device (with vertical rolls)
- Tension roll
- Pinch roll
- Slitting Head (2 heads with automatic changeover)(180mm diam x 700mm face)
- Scrap chopper
- Scrap winder
- Deburring roll
- Saddle with loop hole entry table
- Saddle with loop hole exit table
- Felt roll
- Pinch roll
- Deflector roll
- Telescopic table
- Recoiler
- Exit Coil Car (LL system on the floor)
- Turnstile - 3 arms
- Shaft for Separators on Saddle (one shaft for each saddle)
- Shaft for Separators on Recoiler
- 3 Operator Control Desks
- Some spare tooling

Sold "as is, where is" EXW warehouse floor.
