Used 26" (660mm) Ruesch NARROW STRIP Precision Slitting Line with Slip-Core Drum Recoiler: S-308

Description

FOR SALE: 26" (660mm) Ruesch NARROW STRIP Slitting Line with Slip Core Drum

Manufacture:
- Ruesch
- Recently decommissioned, dismantled, and in storage

Strip Width
- 26.0" max strip (660mm)
- .025" to 24.0" typical cut widths at current location (0.635-609mm)
- .324" max cut width (8.23mm)

Strip Thickness
- .010” - .105” (0.25 - 2.67mm)

Material
- Various steels, aluminum

Coil Size
- ID = 16" (406mm) entry and exit
- OD =
- Weight = 10,000 lbs max (3049 kg)

Equipment:
Coil Upender

Traversing Coil Car / Coil Lift

Uncoiler
- 4-Leaf Mandrel type
- 28" mandrel Face
- Sliding Base
- Feed Up Drive
- Hydraulic Expansion

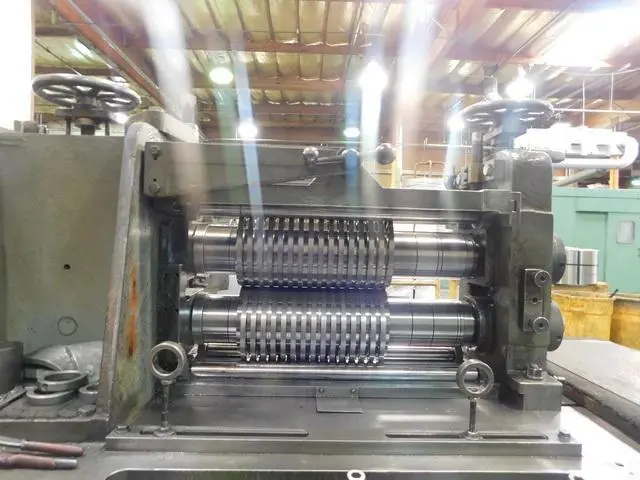

Ruesch Slitter Head (1 head included)
- Arbor diameter = 4-1/8" (4.125")(104.8mm)
- Arbor face = 28" (711mm)
- Ring Slitter Design
- Top & Bottom Back Ups
- 25 HP DC Drive
- Entry Pass Line Roll
- Entry Edge Guides
- 2 Scrap Winders with Oscillating Wind

Feed Table

Ruesch Recoiler (with Slip-Core Drum)
- Drum = 16" diam x 33" face
- 40 HP DC Drive
- Hydraulic Push-Off
- Spare Recoiler Drum
- Precision Slitter Tooling

Floor Standing Overarm Separator

4-Arm Exit Turnstile

Hydraulic Units
Operator Push Button Controls
Electrical Controls & Transformers

Including:
- Parker SSD 590 Integrator DC Drives
- Control Techniques Mentor ll Digital Drives

Sold "as is" EXW warehouse, USA.
