HERLAN P8 Impact Extrusion Press: IEX-207

Description

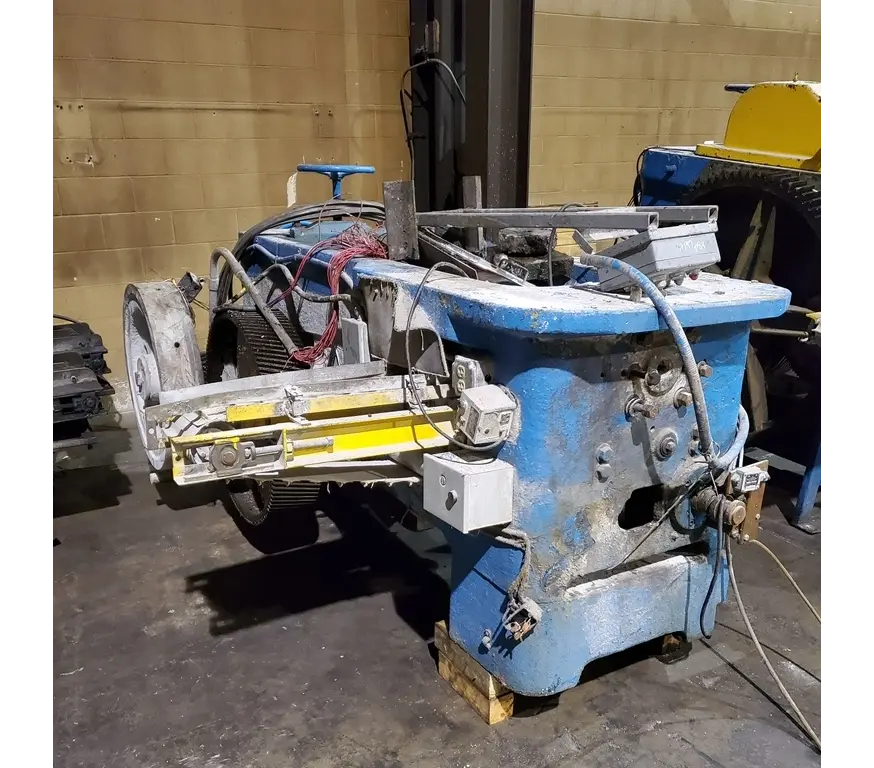

Used HERLAN P84 Impact Extrusion Press

Manufacture
- Herlan / 19?? / SN -
- Model - P8

Nominal Power
- 400 metric tons

Stroke Length
- 335 mm max

Aluminum (99.5)
- Max Diameter - 65mm
- Max Wall Thickness - 0.12mm
- Max Extruded Length - 255mm

Zinc (at 130 degrees C)
- Max Diameter - 56mm
- Max Wall Thickness - 0.4mm
- Max extruded Length - 154mm

Number of Strokes per minute
- 65

Motor Power
- 22 kW

Size
- 3960mm L x 2890mm W x 1760mm H x 11,600kg
- 10ft 0in L x 9ft 0in W x 5ft 9in H x 25,600lbs

Includes
- Bowl Feeder
- Air Actuated Clutch Motor
- Ejector

Sold "as is, where is" USA warehouse.
