Herlan Impact Extruded Tube Trimmers (BDZ, BST, BST/S): IEX-205

Description

Herlan Tube Trimmers: IEX-205

BDZ UNITS:
- 1 trimmer available
-------------------------------------------------------------------------

BST UNITS:
- 7 trimmers available

BST Specifications:
- Automatic trimming, thread-rolling, beading, and knurling
- Max Untrimmed Lengths:
a. Diameter 8.0 - 38.0mm = 175mm length max
b. Diameter 38.0 - 120.0mm = 250mm length max
- Part Diameters = 8.0 - 120.0mm with above lengths
- Production Speeds:
a. Switching Stage 1 = 39 - 54 ppm
b. Switching Stage 2 = 58 - 80 ppm
- Thickness Range:
a. Sheet Iron = 1.0mm Trimming / 0.6mm Beading & Thread-rolling
b. Copper & Brass = 1.0mm Trimming / 0.8mm Beading & Thread-rolling
c. Aluminum = 1.2mm Trimming / 0.8mm Beading & Thread-rolling
- Center Distance of Tool Spindles = 80mm min / 125mm max
- Motor = 1.7 kW / 1165-1745 rpm approx.
- Height Of Lower Tool Spindle To Floor = 610mm
- Machine Overall Dimensions (approx.) = 2030mm L x 945mm W x 920mm H x 550 kg
-------------------------------------------------------------------------------------------

BST/S UNITS:
- 1 trimmer available

BST/S Specifications:
- Automatic trimming, thread-rolling, beading, and knurling
- Production Speeds:
a. Up to 65mm diameter x 200mm long = 70 ppm
b. Up to 125mm diameter x 310mm long = 45 ppm
- Thickness Range:
a. Sheet Iron = 2.5mm Trimming / 1.5mm Beading & Thread-rolling
b. Copper & Brass = 3.0mm Trimming / 1.8mm Beading & Thread-rolling
c. Aluminum = 3.5mm Trimming / 2.5mm Beading & Thread-rolling
- Center Distance of Tool Spindles = 95mm min / 180mm max
- Motor = 4 kW / 960 rpm approx.
- Height Of Lower Tool Spindle To Floor = 1040mm
- Machine Overall Dimensions (approx.) = 2920mm L x 1175mm W x 1485mm H x 700 kg

Sold "as is, where is" FCA (loaded on your truck or in your container) Ohio, USA.

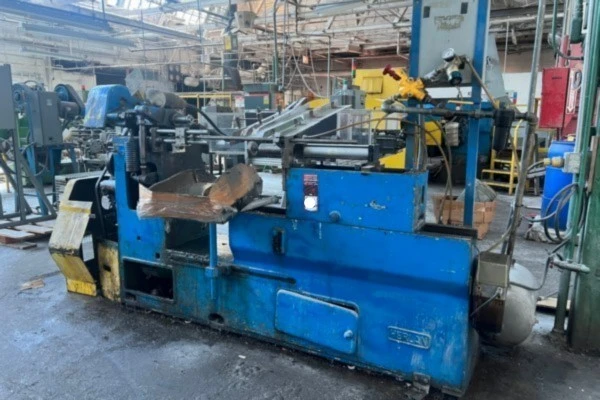

*** EACH PHOTO REPRESENTS A DIFFERENT AVAILABLE TRIMMER ***
