1997 Braner Scrap Choppers: S-306

Description

Used Braner Scrap Choppers for Steel Strip

Manufacturer
- Braner
- New 1997

Material
- Steel

Strip Width
- Designed for use in a 72" wide slitting line / 1828mm

Max. Scrap Width
- 1.5" / 38.1mm

Strip Thickness
- .015" - .048" with existing 10 hp drive motor
- Previous use = .075" thick x 0.500" wide material (Mild Steel)
NOTE: The original motor on this machine was replaced with a smaller motor (the owner needed to cut thin gauge stainless). Buyer must verify actual strip thickness capacity for

Speed
- 900 fpm max at .048" mild steel / 274 mpm

Equipped with:

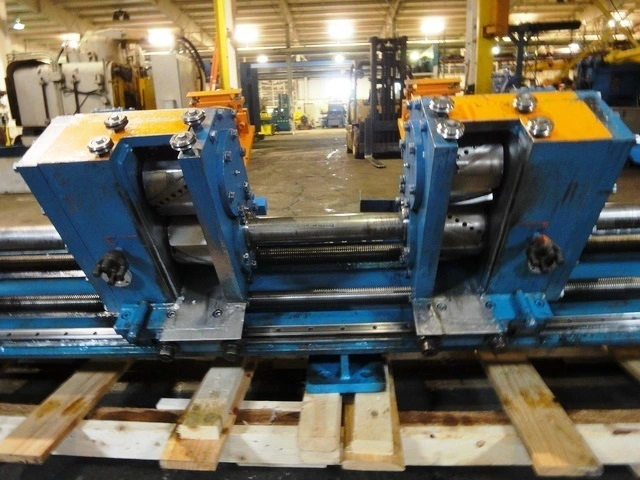

1. Chopper Heads
- 2 included
- Hydraulic motor powered head positioning
- Traversing base
- 10 hp DC drive motor with blower (Less Controls), 850/2550 RPM, 500 V
- Gearbox = right angle reducer, 5:1 ratio

2. Exit Scrap Conveyor
- 15' L x 38" W x 46" H (mounted on wheels)
- 24" wide Slat Conveyor opening

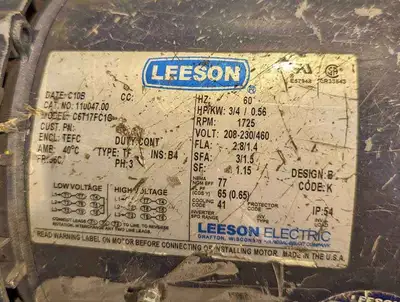

- 0.75 HP Leeson AC Motor, 1725 RPM, 208-230/460 V

Sold "as is, where is" loaded on your truck. Ohio, USA
- Overall Size of Choppers: 130" L x 28" W x 35" H
- Drive: 60" L x 30" W x 36" H
