Herlan P5 Impact Extrusion Press: IEX-201

Description

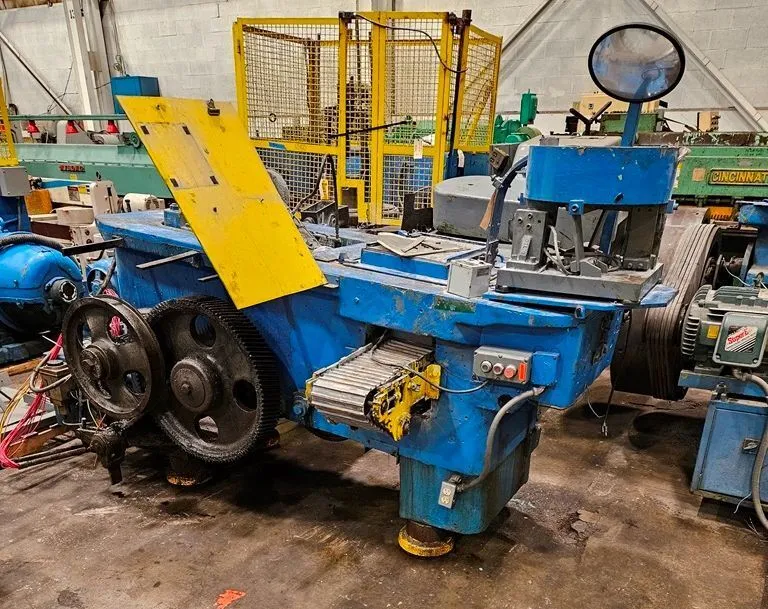

Used HERLAN P5 Impact Extrusion Press

Manufacture
- Herlan / 1961 / SN - 5268
- Model - P5

Nominal Power
- 240 metric tons

Stroke Length
- 300 mm max

Aluminum (99.5)
- Max Diameter - 38mm
- Max Wall Thickness - 0.10mm
- Max Extruded Length - 250mm

Zinc (at 130 degrees C)
- Max Diameter - 32mm
- Max Wall Thickness - 0.35mm
- Max extruded Length - 80mm

Number of Strokes per minute
- 85

Motor Power
- 15 kW

Size
- 3230mm L x 2200mm W x 1680mm H x 7,200kg
- 10ft 7in L x 7ft 3in W x 5ft 6in H x 16,000lbs

Includes
- Bowl Feeder
- Air Actuated Clutch Motor
- Ejector

Sold "as is, where is" USA warehouse.
