62" x .0065-.060" Stamco Vertical Aluminum Slitting Line: S-305

Description

Manufacture

- Monarch-Stamco
- new 1997
- upgraded 2008

Material

- All common Aluminum alloys and clad products
- Full hard to dead soft temper range

Strip Width

- 24 - 62" (entry)
- 60 - 2" (exit)

Strip Thickness

- .0065 - .060"

Entry Coil Size

- ID - 16, 20, 24"
- OD - 100"
- Weight - 40,000 lbs
- Unwinding = overwind only

Exit Coil Size

- Min cut = 2”
- ID - 16, 20"
- OD - 36" max for 2-3" wide cuts / 40" max for 3-6" wide cuts / 48" max for 6-12" wide cuts / 75" max above 12" wide cuts
- Weight - 25,000 lbs max (each recoiler)
- Winding: Over and under wind capable (in any combination)

Slitter Capabilities

- Arbor Size - 6.50" diameter
- Maximum incoming width: 62”
- Minimum incoming width: 24”
- Maximum trim width: 60”
- Minimum slit width: 2”
- Cuts: .0065”-.030” (8 cuts maximum) / .031” - .060” (6 cuts maximum)
- Maximum side trim width: none as trim can be wound to winder
- Minimum side trim width: .50”

Line Speeds

- Low Gear – 500 fpm maximum
- High Gear – 1000 fpm maximum

Hand of Line

- Right to Left

Control System

- GE 90-30 PLC

Drives

- Siemens Simoreg

Line Description

- Single Uncoiler
- Dual Recoilers
- Vertical Pass Slitting
- Light/Medium Gauge aluminum

Basic Line Equipment:

- Unwind Reel Drive – 100 HP DC motor driven, dual speed gearbox
- Unwind Edge Guide: North American
- Unwind Pinch Roll
- Entry Shear
- (2) Stamco #6 Vertical Pass slitter heads (one in-line and one for next set-up;

exchange heads with overhead crane)

- Slitter Drive – 30 HP DC motor driven, single speed gearbox
- Trim Pull Rolls: Pneumatically driven
- Scrap Baller: 25 HP AC motor driven, single speed gearbox
- Recoiler Drives – 100 HP DC motor driven, dual speed gearboxes

Sold "as is, where is" EXW dismantled at plant, USA.

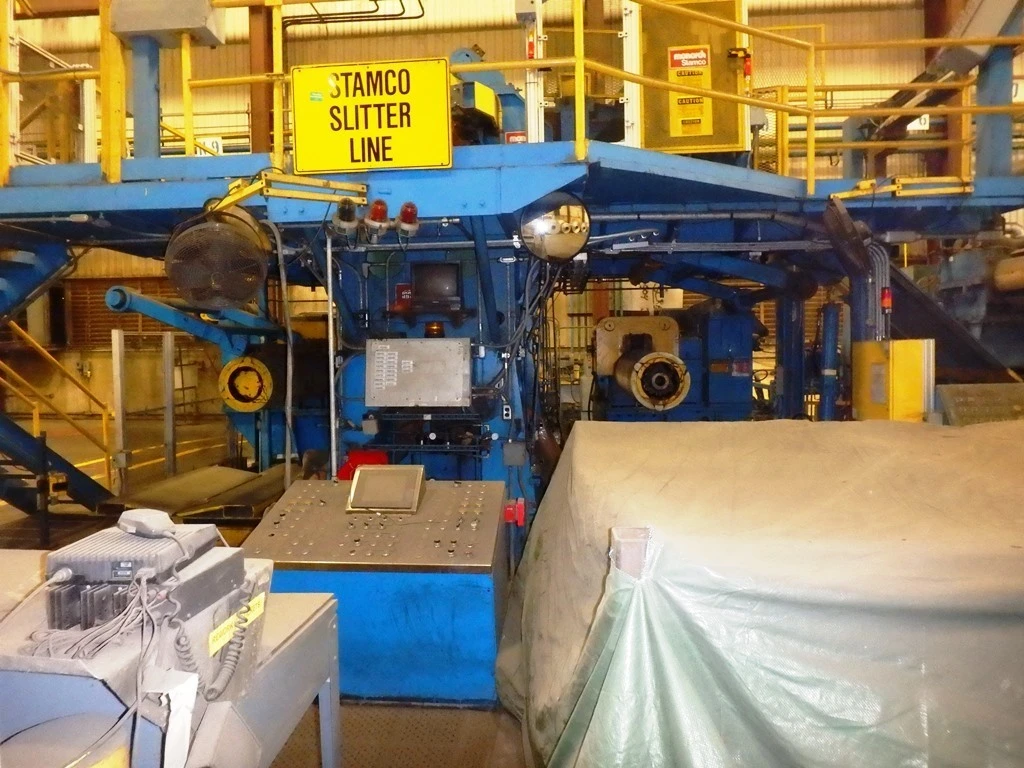

Photos are a combination of when the line was installed and in it's current dismantled state.

The line was properly dismantled by a rigging contractor!
