60" x 7" Cincinnati/Forte Slitting Line: S-303

Description

FOR SALE: 60" x 7.00" x 24,000LB Cincinnati/Forte Slitting Line

Manufacture
- Cincinnati/Forte
- New - 1969
- Many upgrades

Material
- Cold rolled + Aluminum

Strip Width
- 60" max

Strip Thickness
- .010" - .119"

Coil Size
- Entry ID = 16 - 24"
- Exit ID = 16" / 20" & 24"
- OD = 60" max entry and exit
- Entry Weight = 24,000 lbs
- Exit Weight = 20,000 lbs

Max. Shear
- 45,000 PSI

Max. Yield
- 45,000 PSI

Line Direction
- Left to Right

Mode of Operation
- Driven

Line Speed
- 250 / 500 fpm (approx.)

Equipment

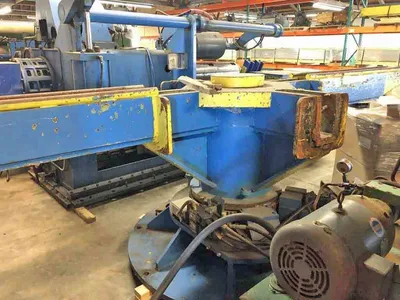

Entry Turnstile:
- Four (4) Arms x 25,000lbs/arm
- Powered Rotation
- Slotted for C-Hooks

Entry Coil Car:
- Mast Type
- Floor Mounted
- Powered Lift and Traverse
- Self-Contained Hydraulics
- Machine Mounted Controls

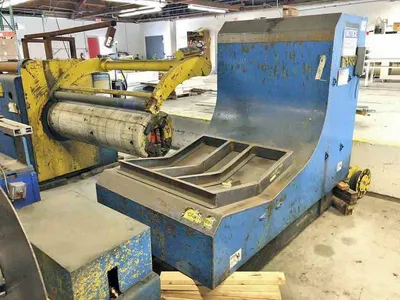

Uncoiler:
- Single Mandrel Type
- Hydraulic Expansion
- Holddown with Powered Snubber Roll
- Wichita Water Cooled Brake
- AC Feed up Drive
- Slide Base
- Paper Winder

Outboard Support - A & B:
- Powered Extension / Retraction

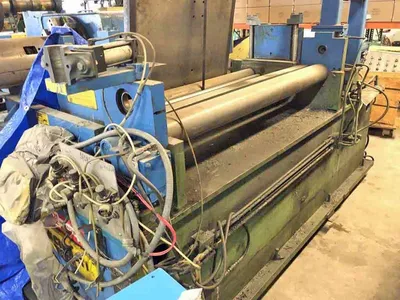

Entry Unit:
- Extending Blade Peeler
- Manual Side Guides
- Powered Entry Pinch Rolls (incomplete)
- PVC Applicator
- Idler Pinch Rolls for PVC Application
- Rotary Crop Shear

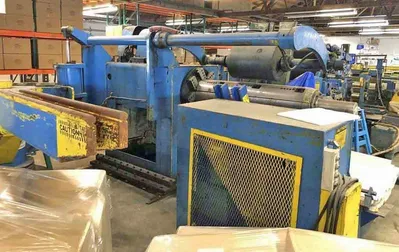

Stationary Slitter Base:
- 20 HP AC Leeson Feed up Motor, 1750 rpm
- Renold Gear Reducer, 41.8/1 ratio
- 75 HP Baldor DC Motor, 1760 RPM, (New in 2001)
- Powered Head Lock

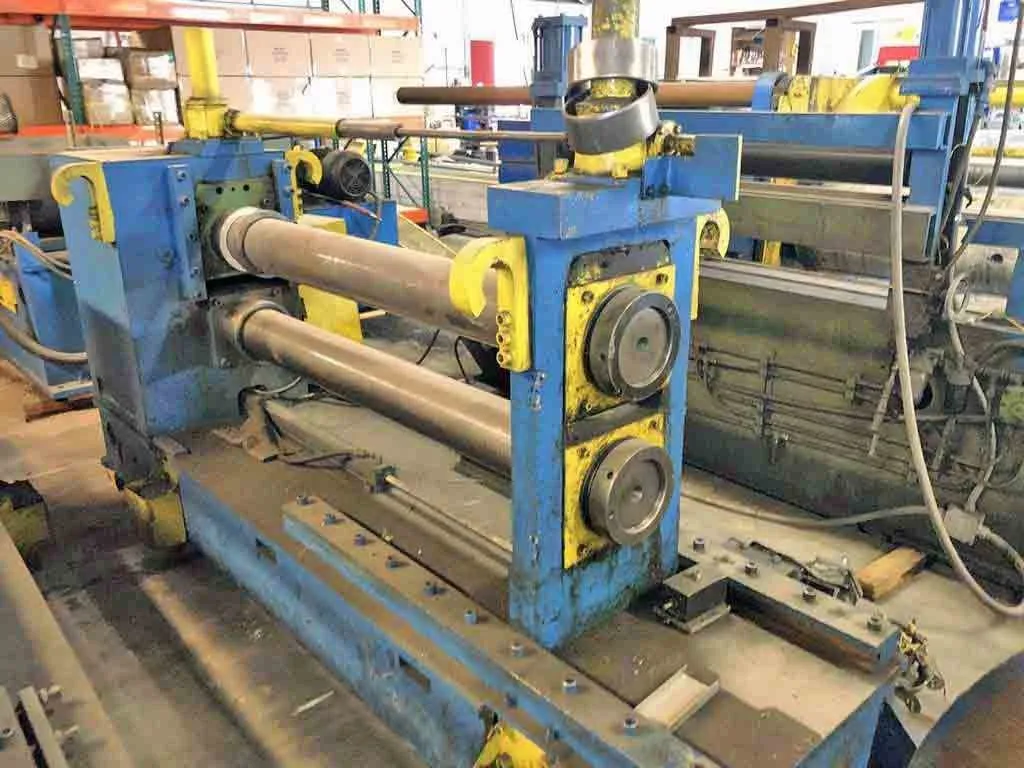

Two (2) Slitter Heads:
- Injector Type
- Powered Traverse
- Powered Top Arbor Adjust
- Powered Outboard Retraction
- "Over the Arbor" design for slitting widths between 48-60"
- Head #1 - 5" Diameter Arbor
- Head #2 - 7" Diameter Arbor
- 75 HP DC Drive for Slitter Head (New in 2003)

Pit Section:
- Inspection Table
- Powered Cross Over Table

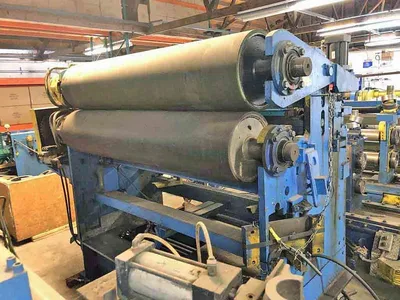

Tension Stand: Combination Drag and Roll Type

Strip Separator Arm
- "Drag" Type with two (2) Cylinders
- Two (2) 14" Diameter Tension Rolls
- Two (2) Wichita Water Cooled Brakes

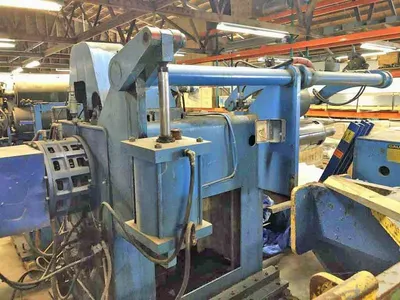

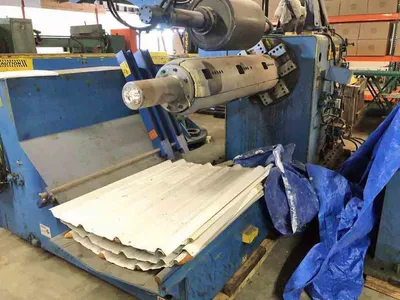

Recoiler:
- 16" Dia. Drum
- Hydraulic Pushoff
- Hydraulic Expansion & Gripper
- Overarm Separator Assembly

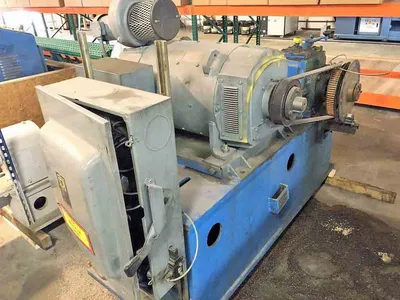

- 150 HP Baldor AC Motor, 1150/2000 RPM (New 2001)
- Two (2) Speed Transmission, 2:1 and 1:1 ratios
- Bolt-on Risers for 20" & 24"

Exit Coil Car:
- Mast Type
- Floor Mounted
- Powered Lift and Traverse
- Self-Contained Hydraulics
- Narrow Coil Retainers
- Machine Mounted Controls

Exit Turnstile:
- Two (2) Arms x 20,000lbs/arm
- Powered Rotation
- Slotted for C-Hook
- Powered Lift / Retract

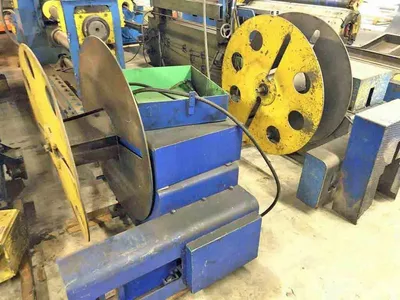

Two (2) Scrap Winders:
- Hydraulically Powered
- Manual Scrap Dump
- Level Wind

Electrical Controls:
- Main Operators Control Console
- Auxiliary Operators Control Console

Slitter Tooling:
Approx. Knife Count
- 80 - 0.250" x 5" ID
- 50 - 0.500" x 5" ID
- 59 - 0.250" x 7" ID (beveled)
- 47 - 0.250" x 7" ID (beveled)
- 58 - 0.250" x 7" ID
- Rubbers / Spacers / Shims / Separator Tooling

- Hydraulics System
- Water Cooler
- Removed and in Storage

Sold "as is, where is" EXW off foundation, USA.
