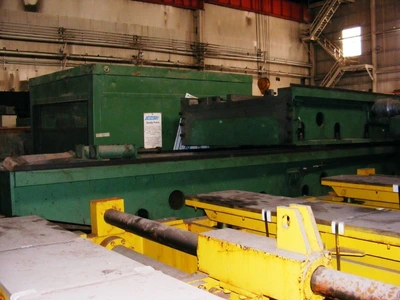

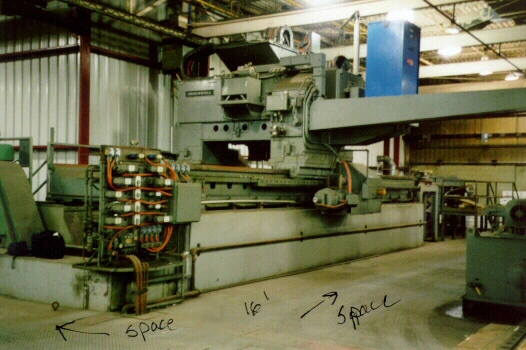

52" Ingersoll Copper Slab Scalper: SC-020

Description

Used 52" Ingersoll Copper Slab Scalper: SC-020
Suitable for aluminum but previous use was beryllium copper slab

Manufacturer:
- Ingersoll / 1983

Slab Capacity:
- Thickness: 2- 8" (50.8 - 203.2 mm)
- Width: 26-52" (660.4 - 1320 mm)
- Length: 18 ft max (5488 mm)
- Weight: 10,000lbs max (4.5 mton)

Former Use:
- Scalped beryllium copper slab

Capacity:
- 20 million lbs/yr - or - .150" metal removed per pass on a 36" wide x 18ft long slab

Feed System
- X-Axis: 10 - 300" per minute, with 244" of travel
- Y-Axis: 5 - 20" per minute, with 68.5" of travel
- Z-Axis: 100" per minute max, with 14" of travel

Surface Finish Produced:
- 125 rms per minute
- Tolerance = +/- .015"

EQUIPMENT
Cutting Tools:
- Milling = 18" diam knives x 32 inserts
- Cropping = 30" diam blade or cutting slab ends

Drive:
- Spindle type
- 75hp AC
- 1800rpm
- 460/3/60

Included:
- Electrical controls
- Coolant system
- Hydraulic system
- Chip conveyor

Sold "as is, where is" EXW warehouse.
from Phipps Co. equipment suppliers USA
