62.5" Herr Voss Strand Extensioner: S-294

Description

Very Good 62.5" Strand Extensioner and Exit Stand: S-294 / Strand Extensioner slitting can produce a higher quality slit than the master coil. This process will slit, provide shape correction, maintain critical material surface quality, and reduce burr ... in one safe and highly productive operation.

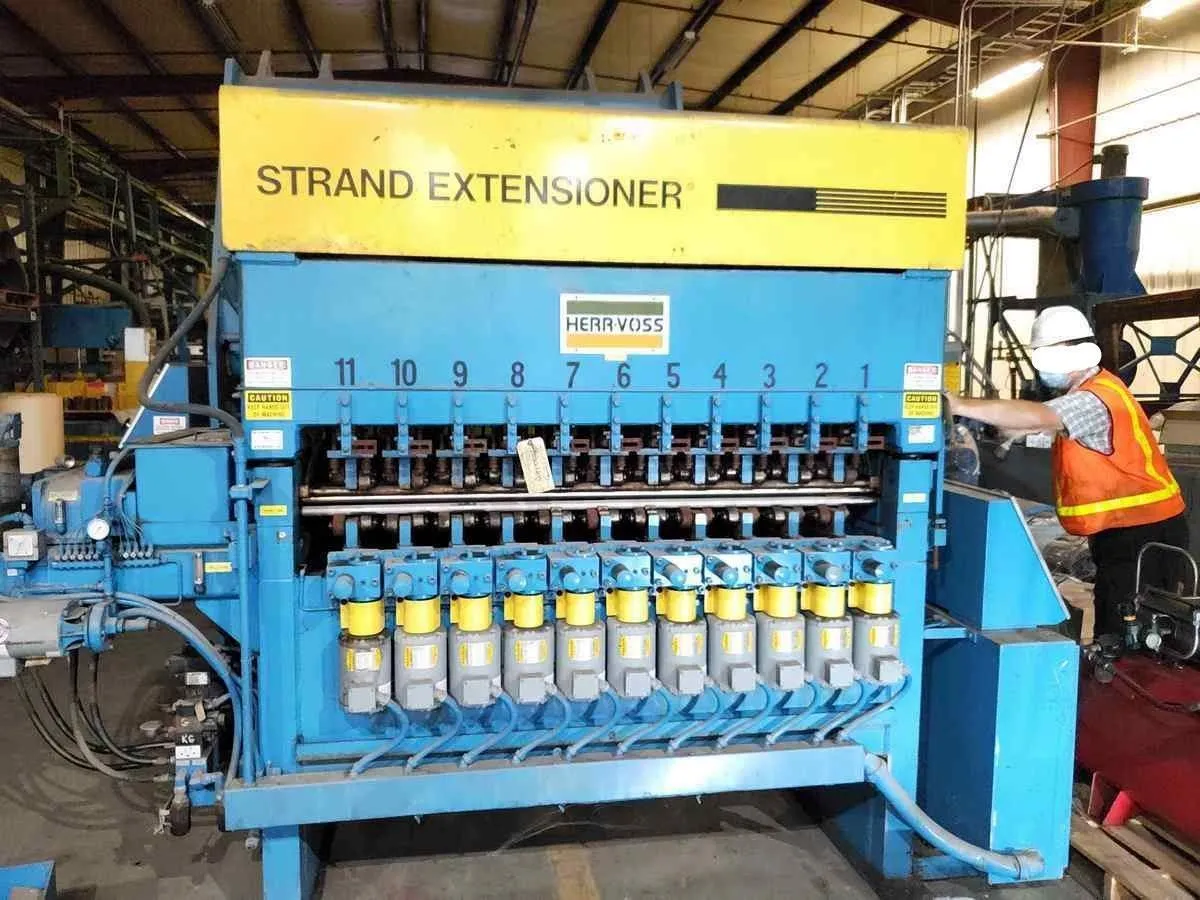

Herr Voss Strand Extensioner
- Type: 5-Hi
- Model: 72/1.156-23/5 HI / RH
- 23 rolls, 11 over 12

Strip Width
- 62.5" max.

Strip Thickness
- Minimum: .008"
- Maximum: .040" (up to .076" depending on recoiler hp)

Line Speed
- Maximum: 1500 fpm

Material Yield Strength
- 12,000 to 40,000 psi

Line direction: R - L

EXTENSIONER:
a. Rolls
- 72" roll face
- 1.1560" roll diameter
- 11 Flights of Motorized Backups

b. Hydraulic Motor Drive with Pinion Box

c. Lube system

d. Operators Panel w/Joystick Controls

EXIT STAND:
a. Deflector Roll
b. Powered Bottom Nip Roll with Hydraulic Motor Drive
c. Hydraulic Crop Shear
d. Exit Threading Table
e. Operators Panel
