26" Stamco Slitting Line: S-262

Description

Used 26" Stamco Slitting Line: S-262 / Light Gauge Aluminum Line

Manufacture:
- Ruesch, Stamco
- New 1963

Strip Width:
- 26" max / 660 mm

Strip Thickness:
- Thin gauge aluminum

Arbor Size:
- 4.125" / 104.7 mm

Coil Size:
- ID - 16" / 406 mm
- OD - 60" max / 1524 mm
- Wt - 10,000 lbs max / 4.5 mtons

Line Design:
- Double looping

Hand of line:
- left to right

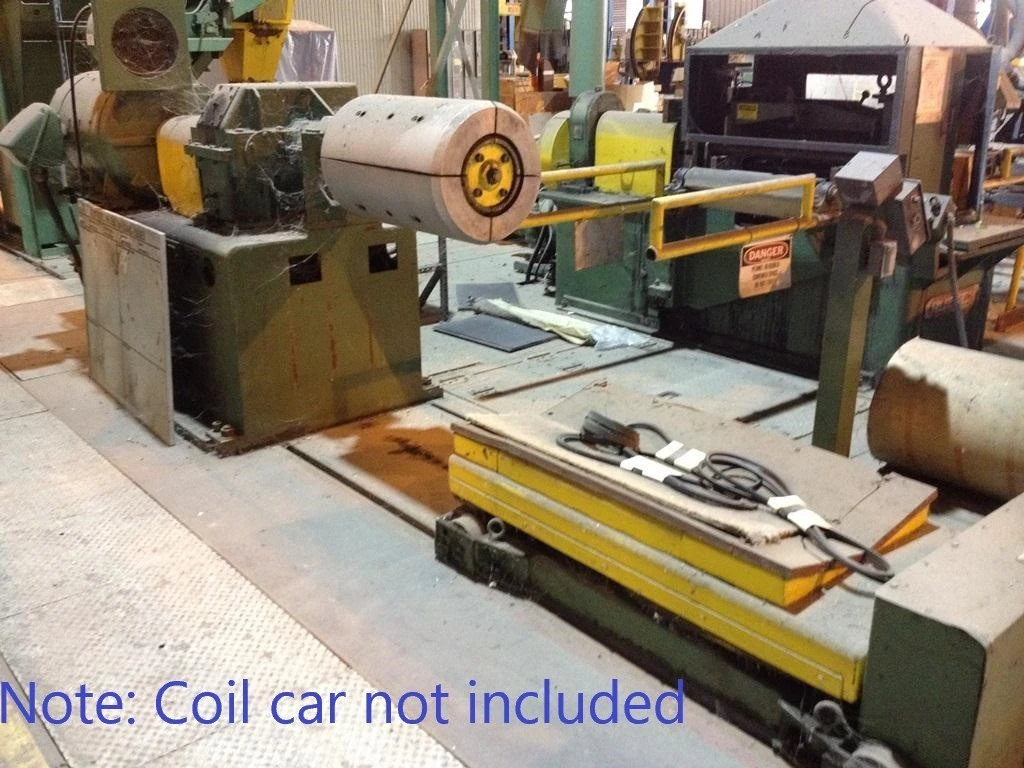

1. Entry Coil Car: Not included

2. Uncoiler:
- Stamco mandrel type
- 28.5" face, 4 segments, Hydraulic expansion, 48" passline height
- 30 hp DC motor - rebuilt 1997 - 300/1800 rpm, 240 V, Gear reducer with 5.2:1 ratio

3. Two Removable Slitter Heads:
- Ruesch - model 146
- 4.125" diam arbor / 104.7 mm
- Ring slitting arrangement
- 30 hp Reliance DC drive, 1150/2600 rpm, 240 V, Horsburgh&Scott gearbox

4. Slitting Capacity
- This line was an aluminum fin stock line
- It also made precision narrow cuts for HVAC (.875" and 1.0" wide multiple cuts, shimless)

5. Scrap Chopper:
- Ruesch - model #245, Blower unit

6. Tension Stand:
- Ruesch pad type, Hydraulic retraction

7. Recoiler:
- Ruesch stub mandrel type
- 30" face x 16" diam drum (bolt-on plates to 20" ID)
- Manual expand & grip / Hydraulic push-off / Overarm separator
- 40 hp DC motor, 850/2550 rpm, 7.59:1 ratio gearbox

8. Exit Coil Car:
- Southworth floor level

Sold "as is, where is" EXW removed and in storage, USA
Total shipping weight = 40,000lbs
