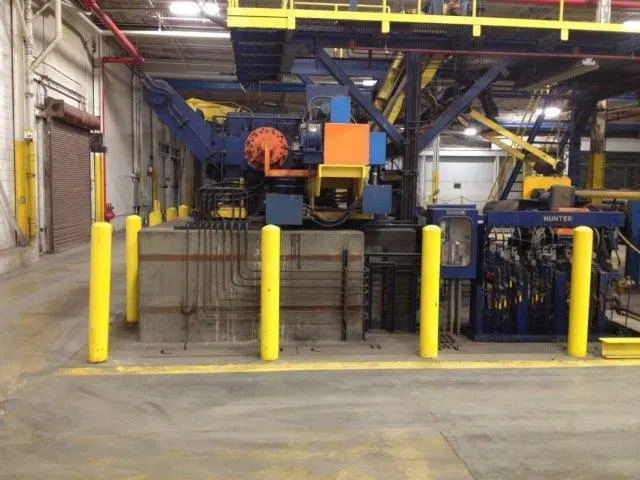

60" Aluminum Can-End Coating Line: CC-157

Description

60" Aluminum Can-End Coating Line: CC-157
- Single coat line for light gauge aluminum coatings/finishes.
- Sold "as is, where is" EXW on foundation USA.

Strip Width: - 60" max / 1524 mm - 66" w/o tension leveling section

Entry Coil Size: - ID - 20" (508 mm) / OD - ? / Weight - 50,000 lbs (27.2 mtons)
Exit Coil Size: - ID - 16" (406 mm) / OD - 70" max (1778 mm) / Weight - 48,000 lbs (21.8 mtons)

Manufacture:
- Hunter and GFG
- New in 1975
- Reinstalled 1984 with upgrades

Design: Single coat line

Line Speed:
- Rated: 275 fpm / 84 mpm
- Actual ran: 300 fpm / 91.4 mpm

Strip Thickness:
- .008 - .020" / 0.20 - 0.51mm

Strip Width:
- 60" max / 1524 mm
- 66" w/o tension leveling section

Entry Coil Size:
- ID - 20" / 508mm
- OD - ?
- Wt. - 50,000 lbs / 11.34 mtons

Exit Coil Size:
- ID - 16" / 406mm
- OD - 70" max / 1778mm
- Wt - 48,000 lbs / 10.89 mtons

Uncoiler #1:
- 80 hp, 800/1500 rpm, 15.983:1 gear ratio

Coil Car #1:
- Above ground, 50,000 lbs

Scrap Winder:
- Mandrel type with scrap car

Uncoiler #2:
- 80 hp, 800/1500 rpm, 15.983:1 gear ratio

Coil Car #2
- Above ground, 50,000 lbs

Pinch Roll

Crop Shear

Strip Joiner:
- Behlen, Single die

Bridle 1 of 7

Entry Accumulator:
- 9 rolls over 8
- 12.8" diam rolls
- 60 seconds of strip storage at 300 fpm

Bridle 2 of 7

Tension Leveler:
- 60" max strip width
- Entry Bridle (Line bridle #3)(2 roll unit)
- Roll 1 - 25 hp, 1750/2500 rpm, 34.13:1 gear ratio
- Roll 2 - 50 hp, 1750/2500 rpm, 33.23:1 ratio
- BWG Flex-Roll Section:
- 5 roll cassettes
- Work rolls: 1.125" & 1.75" diam
- Back up Rolls: 2.25" diam
- Exit Bridle (Line bridle #4)(2 roll unit)
- Roll 3 - 150 hp, 1750/2500 rpm, 34.5:1 gear ratio
- Roll 4 - 75 hp, 1750/2500 rpm, 33.02:1 gear ratio

Bridle 5 of 7

Cleaning Section
- Stages 1-2 = vertical
- Stages 3-4-5 = horizontal
- Vertical Air blow off

Coater:
- GFG, 2 side coat
- Rolls: 10" diam x 72" face

Paint Flow-Out Booth - 15 ft long section

Oven:
- 90 ft long / 27.4 m
- 3-zone gas-fired catenary type
- Exit water quench
- Exit air quench

Bridle 6 of 7

Exit Accumulator:
- 9 rolls over 8
- 12.8" roll diameter
- 60 seconds of strip storage at 300 fpm

Bridle 7 of 7

Waxer:
- GFG
- 2-12 mg per sq ft laydown

Exit Shear

Exit Pinch Roll

Recoiler:
- 60 hp, 500/2000 rpm, 18.611:1 gear ratio
- Mandrel type
- With Belt wrapper, coil car, and downender
